Giant Trance X E+ 3 Bike

Original price was: $345.00.Current price is: $95.99.

SKU: YWXZL 4585239511727528614 Categories: Bikes, E-Bikes Tag: Giant

Effortless Shopping, Quality Products
100% Quality Promise
The best quality products, always.
Fast reliable delivery options

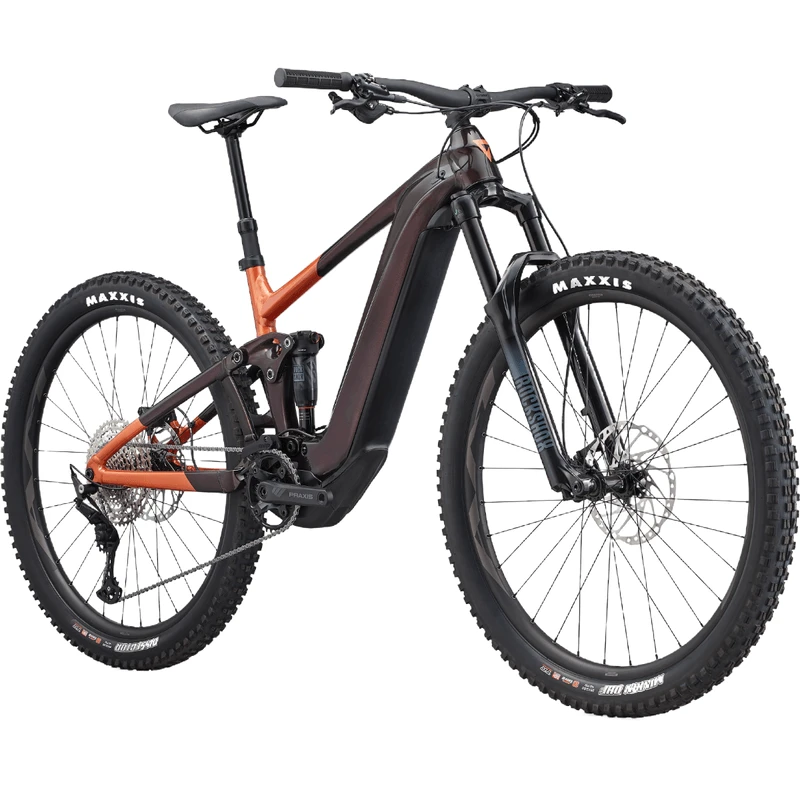

GIANT TRANCE X E+ 3 BIKE

Faster up the climbs, longer loops, more singletrack fun on any given day. Free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding e-bike.

FEATURES

Smooth, powerful support: SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds
Trail-riding control: Optimized Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents
Adaptable to the terrain: Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position

TECH SPECS

Motor: SyncDrive Pro, 85Nm, powered by Yamaha
Controller: RideControl GO integrated in TT, RideControl Ergo 3
Display: ANT+ Wireless display compatible
Battery: EnergyPak Smart 750, EnergyPak Plus 250Wh range extender compatible
Frame: ALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, ‘Boost’ 148×12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
Fork: RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15×110 Boost, Maxle Stealth, e-MTB optimized
Shock: Rock Shox Deluxe Select R, DebonAir, 185×52.5mm Trunnion mount, custom tuned
Handlebar: Giant Contact 35 Trail, 35x780mm
Grips: Giant New trail grip Half-waffle/single lock-on
Stem: Giant Contact SL 35
Seatpost: Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
Saddle: Giant Romero E
Pedals: Flat pedals
Shifters: Shimano Deore
Front Derailleur: MRP HD2 co-moulded chain guide
Rear Derailleur: Shimano Deore, 12-speed
Brakes: Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake Levers: Shimano Deore, I-spec EV
Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)
Rims: Giant AM 29″, Tubeless ready, 30mm inner width
Hubs: Shimano MT410 Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Spokes: Sapim E-Lite [R] Race [F], e-bike optimized
Tires: Maxxis Minion DHF 29×2.6″ foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29×2.6″ Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
Extras: Tubeless kit (liquid, valves, levers, manual, tool)
Lock: Torx 25 Battery Lock with built-in Torque limiter
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All their bikes are designed for best-in-class weight and ride quality

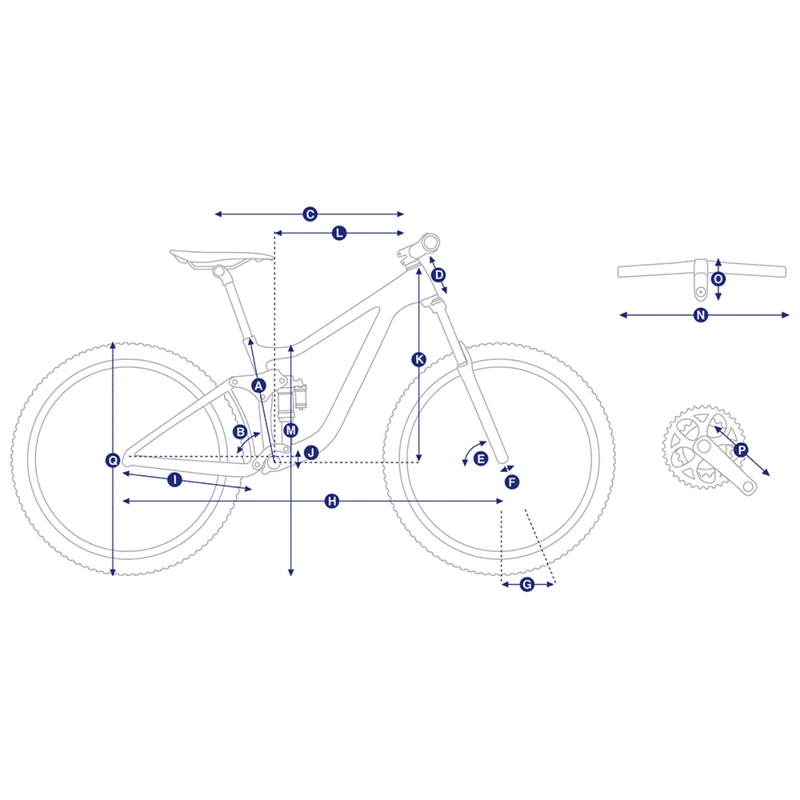

	S	M	L	XL
	LOW \| HIGH	LOW \| HIGH	LOW \| HIGH	LOW \| HIGH
(A) SEAT TUBE LENGTH (inch)	15.7	16.7	17.7	18.7
(B) SEAT TUBE ANGLE	76.0° \| 76.7°	76.0° \| 76.7°	76.0° \| 76.7°	76.0° \| 76.7°
(C) TOP TUBE LENGTH (inch)	22.7 \| 22.6	24 \| 23.8	25.1 \| 25	26.3 \| 26.2
(D) HEAD TUBE LENGTH (inch)	3.7	3.9	4.3	4.7
(E) HEAD TUBE ANGLE	65.7° \| 66.5°	65.8° \| 66.5°	65.8° \| 66.5°	65.8° \| 66.5°
(F) FORK RAKE (inch)	1.7	1.7	1.7	1.7
(G) TRAIL (inch)	4.6 \| 4.8	4.6 \| 4.8	4.6 \| 4.8	4.6 \| 4.8
(H) WHEELBASE (inch)	47.4 \| 47.5	48.8 \| 48.7	49.9 \| 50	51.2 \| 51.2
(I) CHAIN STAY LENGTH (inch)	18.6 \| 18.6	18.6 \| 18.6	18.6 \| 18.6	18.6 \| 18.6
(J) BOTTOM BRACKET DROP (inch)	1.2 \| 0.8	1.2 \| 0.8	1.2 \| 0.8	1.2 \| 0.8
(K) STACK (inch)	23.9 \| 23.7	24.1 \| 23.8	24.4 \| 24.2	24.8 \| 24.6
(L) REACH (inch)	17.3 \| 17.6	18 \| 18.2	19 \| 19.3	20.1 \| 20.4
(M) STAND OVER HEIGHT (inch)	30.8 \| 31.1	30.5 \| 30.9	30 \| 30.3	30.5 \| 30.8
(N) HANDLEBAR WIDTH (inch)	30.7	30.7	30.7	30.7
(O) STEM LENGTH (inch)	1.6	2	2	2.4
(P) CRANK LENGTH (inch)	6.3	6.5	6.5	6.7
(Q) WHEEL SIZE	29″	29″	29″	29″
