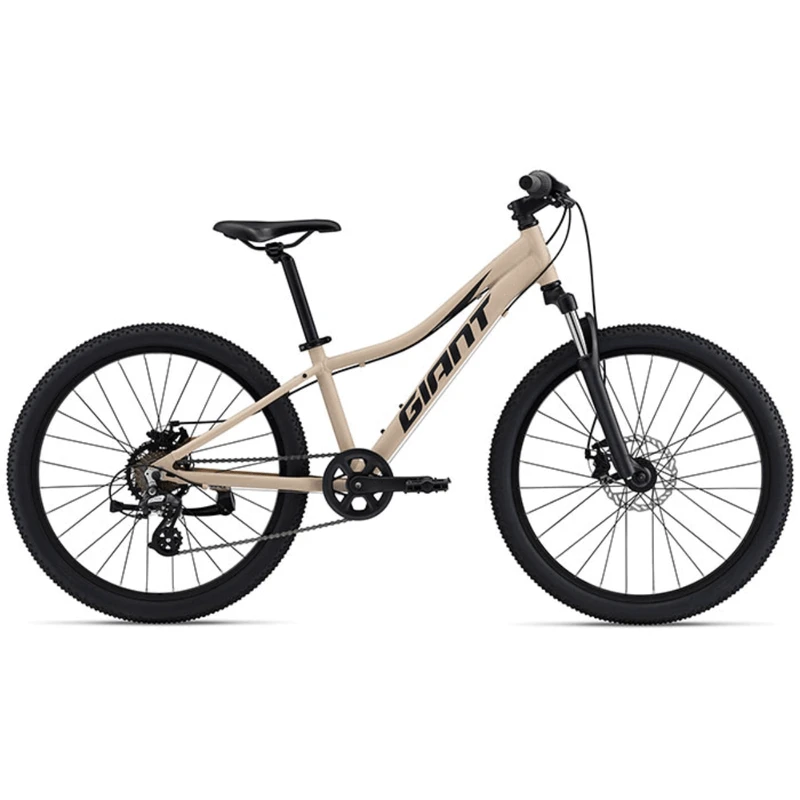

GIANT XTC JR DISC 24 BIKE – 2023
BIG-TIME OFF-ROAD PERFORMANCE IN A SMALL PACKAGE. WITH AN ALUMINUM FRAME, FRONT SUSPENSION AND DISC BRAKES, YOUNG RIDERS WILL BE READY TO CONQUER THE CLIMBS AND HAVE FUN ON THE DESCENTS.
FEATURES
- ALUXX ALUMINUM TECHNOLOGY: This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
TECH SPECS
- Frame: ALUXX-Grade Aluminum
- Fork: Giant WIN254, 50mm
- Shock: N/A
- Handlebar: Giant Sport, alloy, 31.8mm
- Grips: Giant Junior
- Stem: forged alloy Ahead, 8-degree
- Seatpost: alloy, single-bolt, 27.2x300mm
- Saddle: Giant Jr. Sports
- Pedals: platform
- Shifters: Shimano REVOSHIFT, 1×7
- Front Derailleur: N/A
- Rear Derailleur: Shimano Tourney
- Brakes: mechanical disc [F]160mm, [R]140mm rotors
- Brake Levers: alloy, junior MTB
- Cassette: 14×34
- Chain: KMC HV500
- Crankset: alloy, 32t, 140mm
- Bottom Bracket: semi-cartridge
- Rims: Giant Kids 24″, alloy
- Hubs: nutted, 28h
- Spokes: stainless, 14g
- Tires: Giant Junior Sport 24×2.1″, 22 tpi
- Extras: bell, kickstand
- Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.
| ONE SIZE | |
|---|---|
| SEAT TUBE LENGTHÂ (inch) | 12 |
| SEAT TUBE ANGLE | 72.0° |
| TOP TUBE LENGTHÂ (inch) | 20.5 |
| HEAD TUBE LENGTHÂ (inch) | 4.7 |
| HEAD TUBE ANGLE | 70.0° |
| FORK RAKEÂ (inch) | 1.6 |
| TRAILÂ (inch) | 2.7 |
| WHEELBASEÂ (inch) | 38.7 |
| CHAIN STAY LENGTHÂ (inch) | 16.1 |
| BOTTOM BRACKET DROPÂ (inch) | 0.9 |
| STACKÂ (inch) | 20.4 |
| REACHÂ (inch) | 13.9 |
| STAND OVER HEIGHTÂ (inch) | 24.1 |
| HANDLEBAR WIDTHÂ (inch) | 22 |
| STEM LENGTHÂ (inch) | 2.4 |
| CRANK LENGTHÂ (inch) | 6 |
| WHEEL SIZE | 24″ |
