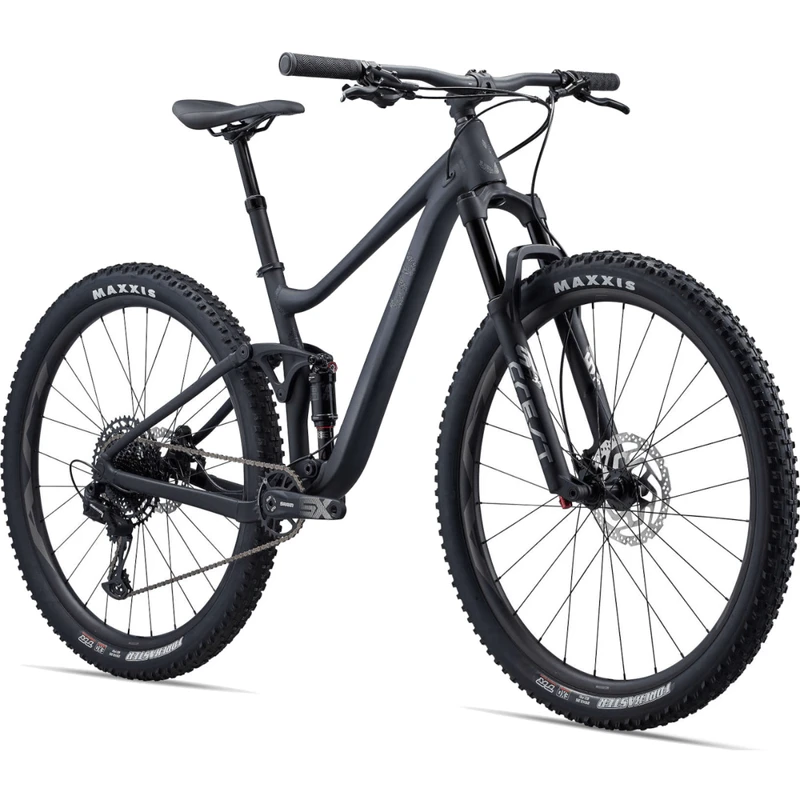

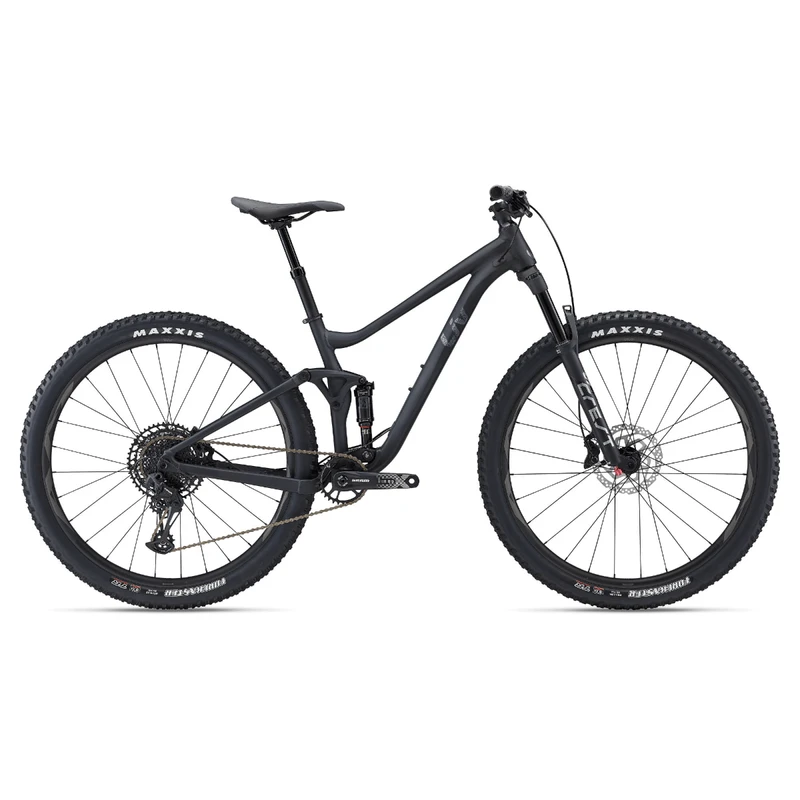

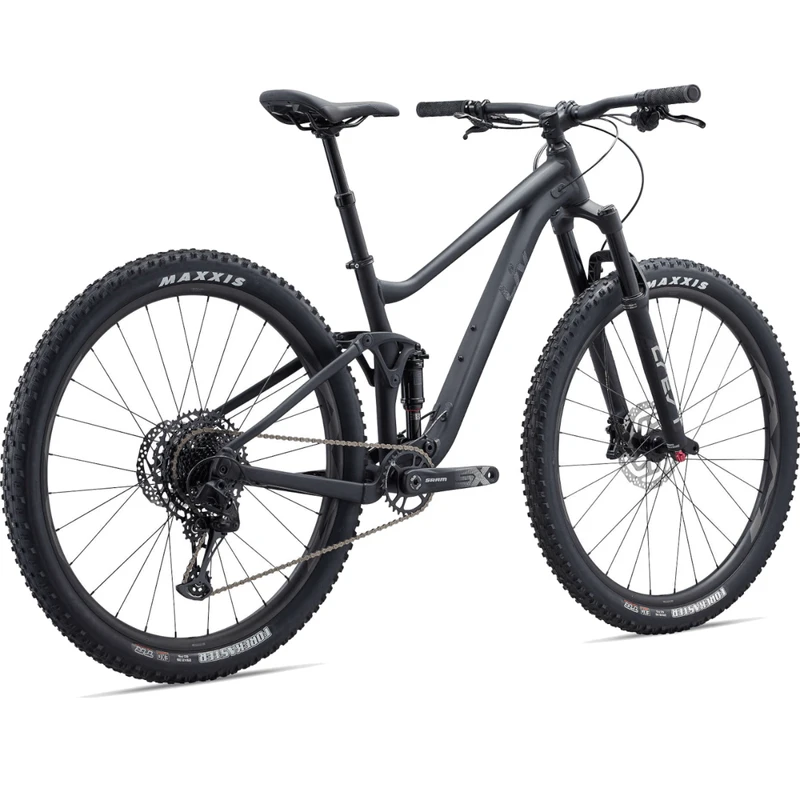

Liv Embolden 1 Bike – 2023

LIV EMBOLDEN 1 BIKE – 2023

Chase Your Thrills.
Custom Frame Design
Women’s custom designed geometry paired with 27.5 or 29-inch wheel size to give the rider the best fit and bike handling.
Trail Capability
ALUXX-Grade Aluminum frame, tubeless wheelset, dropper seatpost, Liv Sylvia trail saddle and a 1x drivetrain allow you to tackle new technical terrain with confidence.
Flexpoint Suspension
The 120mm of FlexPoint Suspension provides an effective, lightweight and durable suspension system so you have increased control while riding over rooty and rocky terrain.

FEATURES

• ALUXX Aluminum Technology
• FlexPoint Suspension Technology
• OverDrive
• PowerCore
• Tubeless System

TECH SPECS

• Frame: ALUXX-Grade Aluminum, 120mm FlexPoint Suspension
• Fork: Giant Crest 34 SL RCL, 130mm, 15×110
• Shock: RockShox Monarch R, 184.15/44.45, custom tuned for Liv
• Handlebar: Giant Connect Trail, Alloy For 27.5: XS:730mm, S:750mm For 29: S:750mm, M:750mm, L:780mm
• Stem: Giant Contact For 27.5: XS:40mm, S:50mm For 29: S:50mm, M:50mm, L:60mm
• Seatpost: Giant Contact Switch dropper, remote For 27.5: XS: 75mm travel / 30.9 x 295mm S: 100mm travel / 30.9 x 345mm For 29: S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 125mm travel / 30.9 x 395mm
• Saddle: Liv Sylvia
• Pedals: N/A
• Shifters: SRAM SX Eagle, 1×12
• Front Derailleur: N/A
• Rear Derailleur: SRAM SX Eagle
• Brakes: Tektro, hydraulic, Tektro 6 bolt rotors [F]180mm, [R]160mm
• Brake Levers: Tektro, hydraulic
• Cassette: SRAM SX Eagle, 11×50
• Chain: SRAM SX Eagle
• Crankset: SRAM SX Eagle DUB, 30t For 27.5: XS:165mm, S:170mm For 29: S:170mm, M:170mm, L:170mm
• Bottom Bracket: SRAM DUB, press fit
• Rims”For 27.5: Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width For 29: Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width”
• Hubs: alloy, loose ball
• Spokes: Sapim
• Tires: For 27.5: [F] Maxxis Rekon 27.5×2.6 WT, EXO, TR, tubeless [R] Maxxis Ardent Race 27.5×2.6 WT, EXO, TR, tubeless For 29: [F/R] Maxxis Forecaster 29×2.35 WT, EXO, TR, tubeless
• Extras: For 27.5: tubeless prepared, max tire size 2.6″, max chainring size 32t For 29: tubeless prepared, max tire size 2.4″, max chainring size 32t
