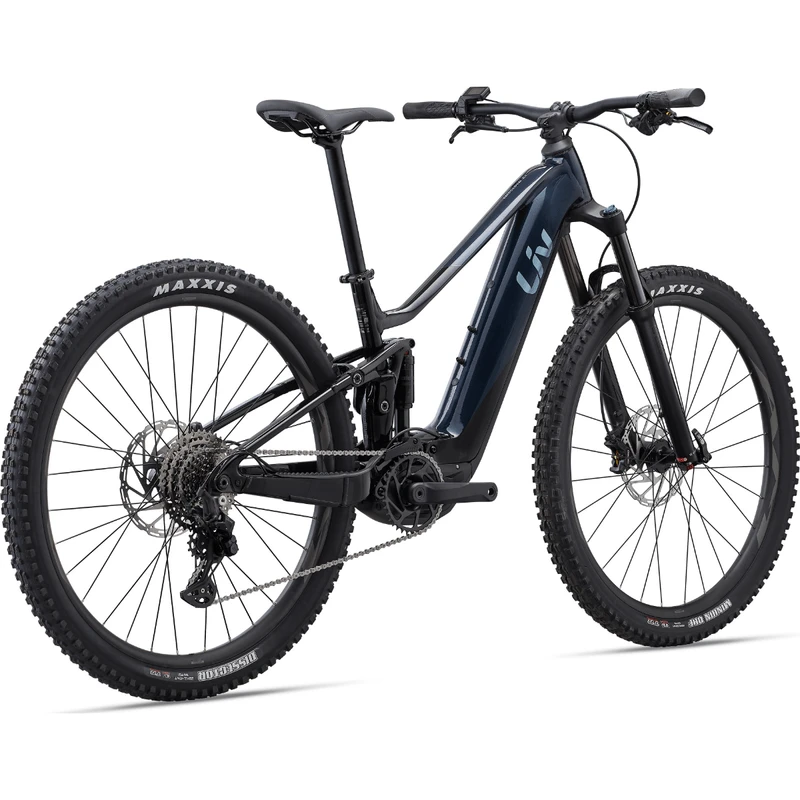

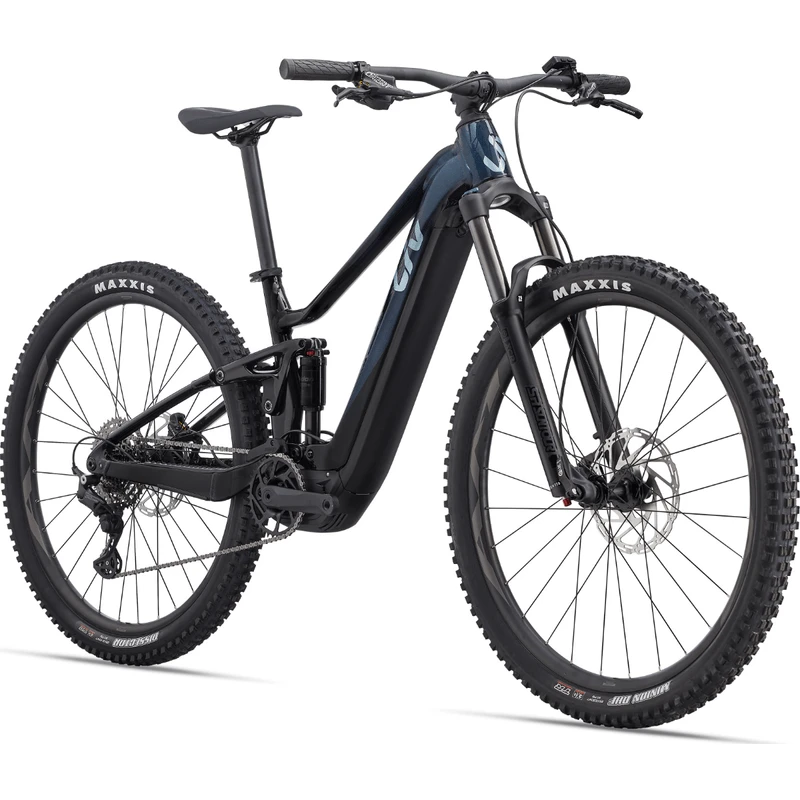

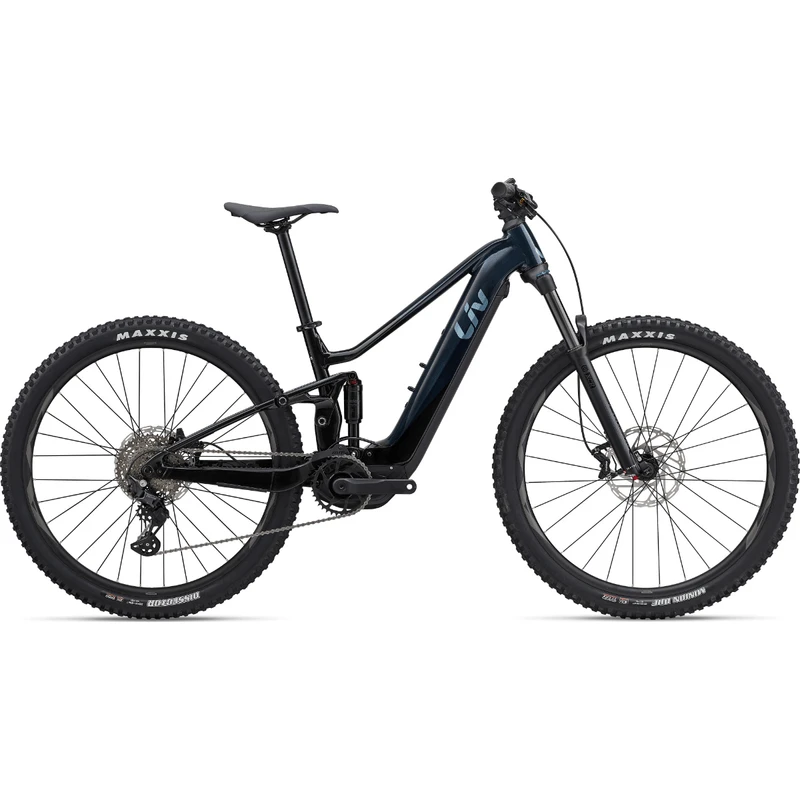

Liv Embolden E+ 2 E-Bike – 2023

LIV EMBOLDEN E+ 2 BIKE – 2023

The spirited power of embolden e+ entices you to say yes at every turn, taking you farther and faster than before.

Accessible Performance
A SyncDrive Sport motor, new fully integrated EnergyPak Smart 625Whr or 500Whr battery, handlebar-mounted RideControl Dash and Smart Assist Technology let you ride farther, faster and more efficiently.

Agile and Functional
The 130 mm front / 120 mm rear suspension platform creates a playful ride, along with kickstand and rack compatibility making for an all-around backcountry adventure machine.

Built for You
Liv’s women first design philosophy and suspension tuned for female riders provide a confidence-inspiring, predictable and maneuverable ride.

FEATURES

• ALUXX SL Aluminum Technology
• FlexPoint Suspension Technology
• Hybrid Cycling Technology
• EnergyPak
• SyncDrive Sport
• Smart Assist

TECH SPECS

• Motor: SyncDrive Sport, 70Nm, Powered by Yamaha
• Controller: RideControl One ANT+
• Display: ANT+ Wireless display compatible
• Battery: EnergyPak Smart 500Wh, 36V Integrated Lithium-Ion
• Charger: EnergyPak 4A smart charger compact
• Frame: ALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost QR, Integrated KS18 Kickstand Mount
• Fork: SR Suntour XCR 34 Air LO-R, 130mm travel, tapered steerer, Lockout, 110×15 thru-axle
• Shock: RockShox Monarch R, High Volume, 184x44mm, custom tuned
• Handlebar: Giant Connect TR Riser 31.8×750~780mm (XS-S: 750 / M-L: 780)
• Grips: Liv Contact Microtech Plus, Lock-on
• Stem: Giant Contact
• Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
• Saddle: Liv Sylvia E+
• Pedals: Aluminum Platform
• Shifters: Shimano Deore
• Front Derailleur: MRP 1X CS custom
• Rear Derailleur: Shimano Deore, 10-speed, Shadow+
• Brakes: Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
• Brake Levers: Tektro HD-M745 Orion
• Cassette: Shimano CS-M4100-10, 11-46T, 10-speed
• Chain: KMC e.10 Sport, e-bike optimized
• Crankset: Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (XS/S:160, M/L:165)
• Bottom Bracket-
• Rims: Giant AM 27.5″ / 29″, Tubeless ready, 30mm inner width (XS: 27.5+ / S-L: 29)
• Hubs: Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
• Spokes: Stainless Steel
• Tires: Maxxis Rekon 29×2.4″/ 27.5×2.4″ foldable, 60tpi, EXO, Tubeless Ready (XS: 27.5, S-L: 29)
• Extras-
• Lighting-
• Lock-
• Carrier-
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All the bikes are designed for best-in-class weight and ride quality.
