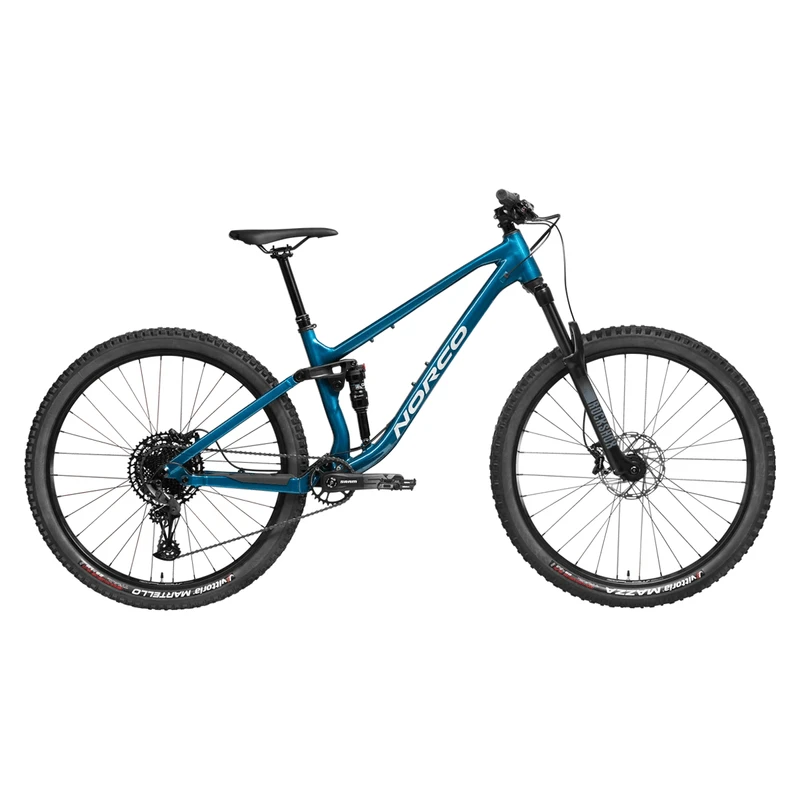

Norco 2023 Fluid FS A3 Bike

NORCO 2023 FLUID FS A3 BIKE

The Fluid FS A3’s 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.

The new Norco Fluid FS A3 is built to tackle whatever trail leads to becoming the rider you want to be.

FEATURES

• Over-delivers as skills evolve.
• High performance, tunable suspension.
• Long-travel droppers and generous standover.
• Refined design and expanded size range.
• Ride Aligned Design System & personalized setup.

TECH SPECS

• FRAME: 6061 Alloy, 130mm Travel
• FORK: RockShox 35 Silver TK Air, 140mm Travel, 44mm Offset
• REAR SHOCK: X-Fusion 02 Pro R AV, Custom Tune, 210x50mm
• FRONT HUB: Bear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt
• REAR HUB: Bear Pawls Sealed Bearing, 12x148mm Boost, HG, 6 Bolt
• RIMS: Stan’s Flow D, 29″, 32H
• FRONT TIRE: Vittoria Mazza 2.4″ Trail G2.0, Folding
• REAR TIRE: Vittoria Martello 2.35″ Trail G2.0, Folding
• HANDLEBAR: e*thirteen, 800mm, 20mm Rise
• STEM: 6061 Alloy, 40mm Length, 35mm Clamp
• SEATPOST: SDG Tellis Dropper, 34.9mm, 150mm (s), 170mm (M, L), 200mm (XL, XXL)
• HEADSET: Sealed Bearing, Tapered
• HEADSET SPACER: 2x10mm & 1x5mm- Black
• SADDLE: Norco Trail
• GRIPS: WTB Waffle, Lock-On
• PEDALS: VP Nylon Flat
• SEATPOST CLAMP: Norco Alloy Nutted Clamp
• FRONT BRAKE: Tektro HD-745, 4 Piston, Organic Pads
• FRONT BRAKE ROTOR: Tektro TR180-22, 180mm
• REAR BRAKE: Tektro HD-745, 4 Piston, Organic Pads
• REAR BRAKE ROTOR: Tektro TR180-22, 180mm
• BRAKE LEVERS: Tektro HD-745
• REAR SHIFTER: SRAM SX Eagle
• REAR DERAILLEUR: SRAM SX Eagle
• CRANKSET: SRAM SX Eagle DUB, 30T, 170mm (S), 175mm (M – XXL)
• BOTTOM BRACKET: SRAM DUB BB, BSA Threaded
• CASSETTE: SRAM PG1210 Eagle, 11-50T
• CHAIN: SRAM SX Eagle
