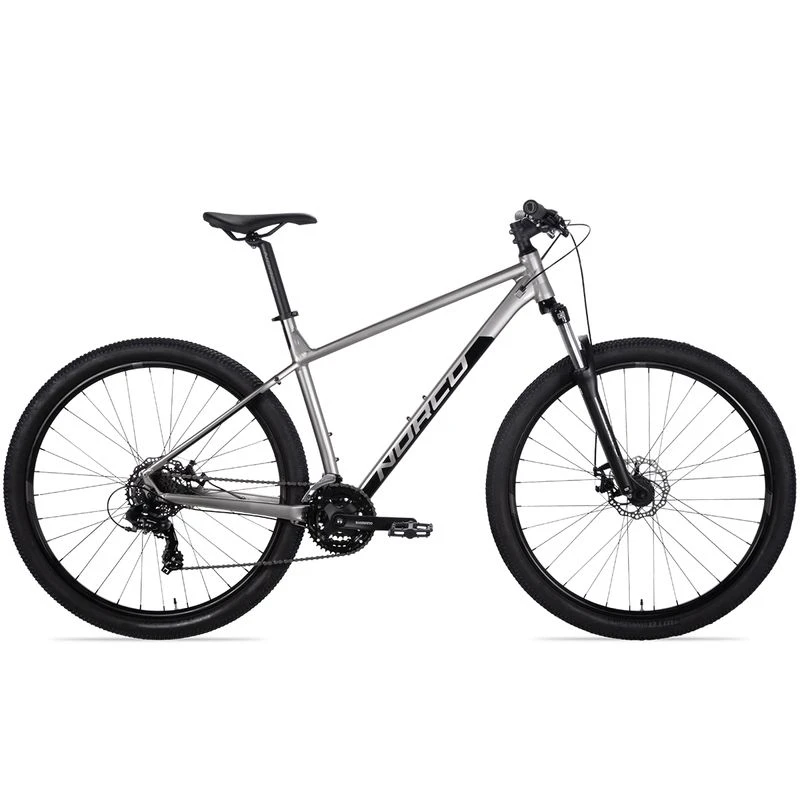

Norco Storm 5 Bike – 2023

NORCO STORM 5 BIKE – 2023

The Storm 5 features a progressive off-road design and features that’ll help you discover your favourite way to ride.

It’s built for off-road adventure, but the 6061 aluminum Storm 5 is more than happy to lead a double life on city streets and park paths.

FEATURES

• Nimble, confident trail performance.
• Comfort and control on the trail.

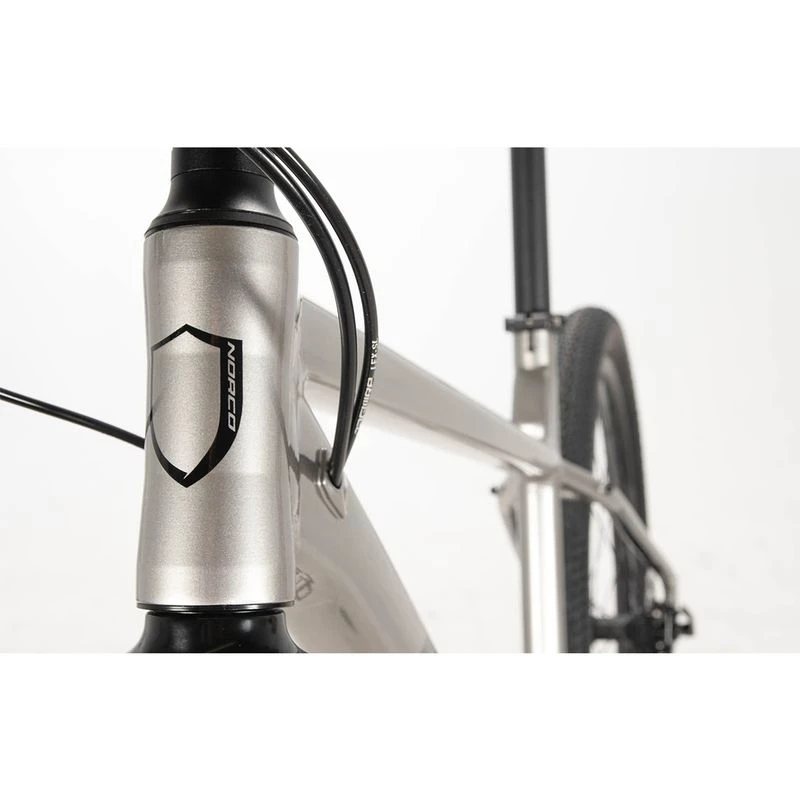

• Internal routing protects mechnical systems.
• Size-specific wheels optimize the ride.
• Room for tires up to 2.35” for a wide range of riding.

TECH SPECS

Frameset

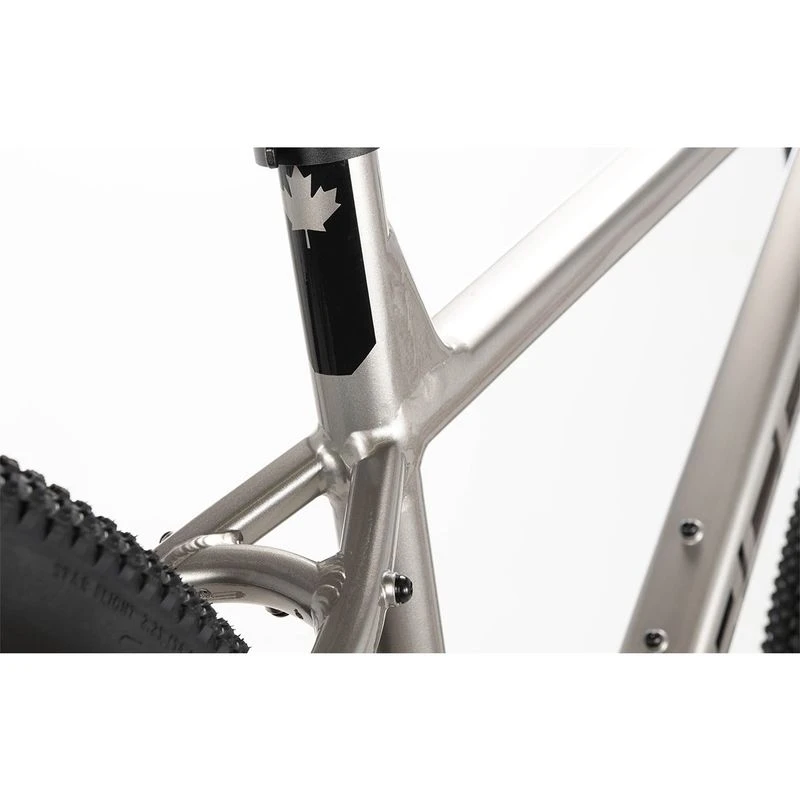

• FRAME: Storm 6061 Alloy XC Frame

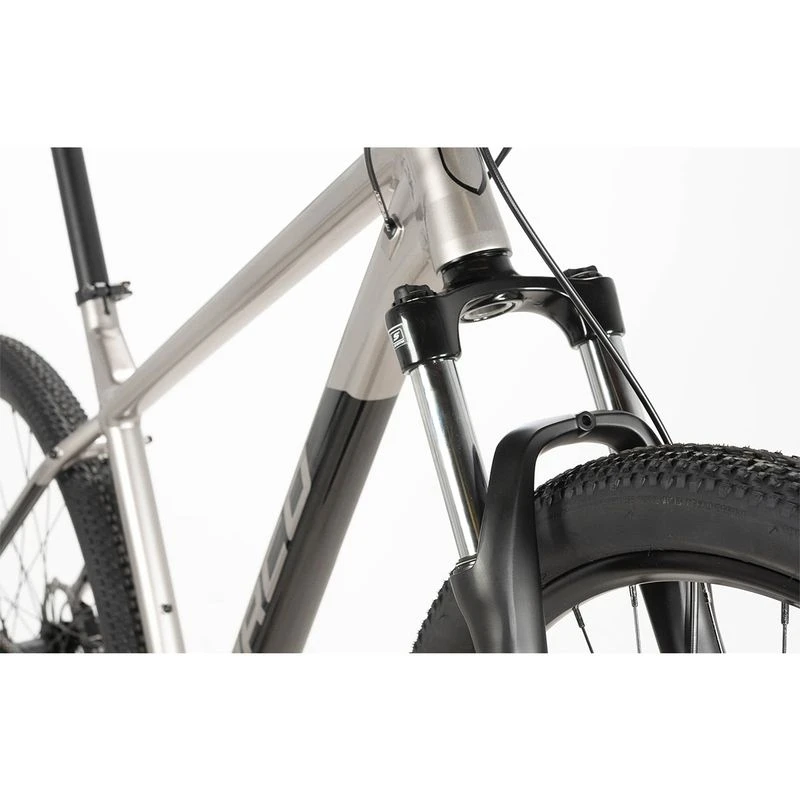

• FORK: SR Suntour XCE28, 100mm Travel

Drivetrain

• REAR SHIFTER: Shimano TX ST-EF500

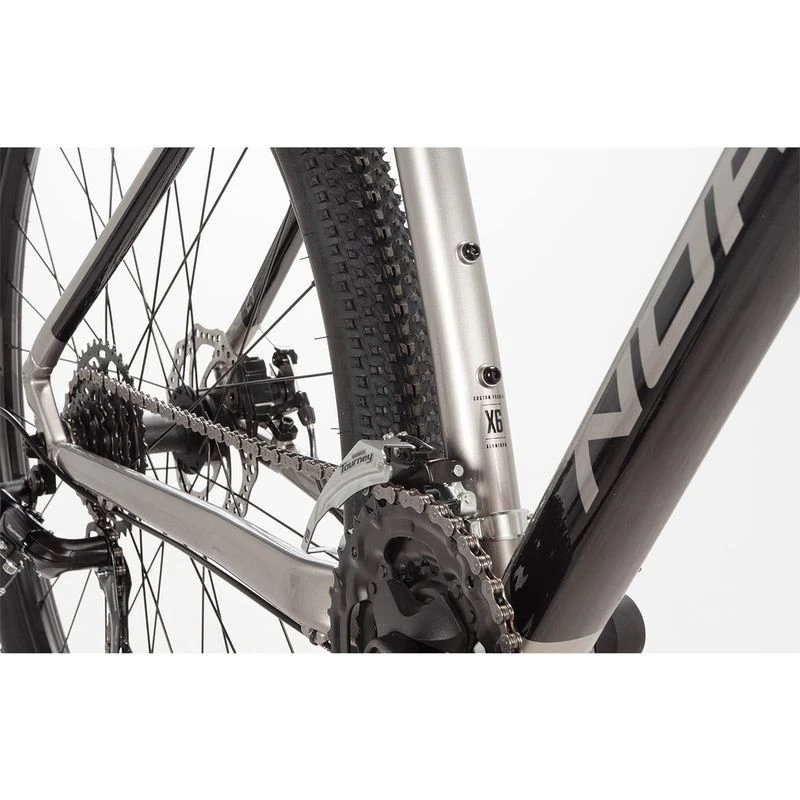

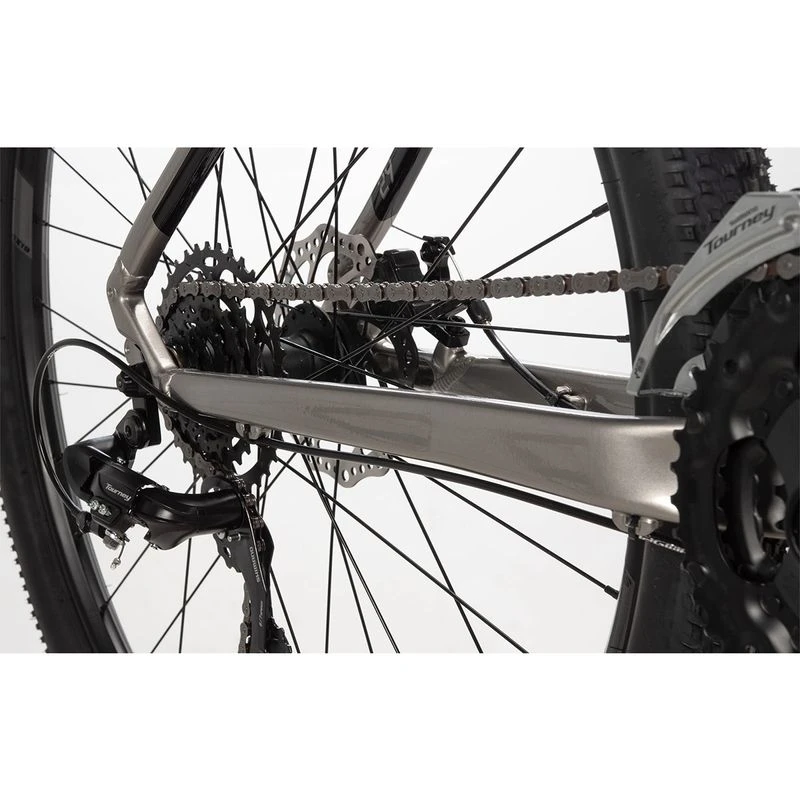

• REAR DERAILLEUR: Shimano Tourney RD-TX300
• FRONT SHIFTER: Shimano TX ST-EF500
• FRONT DERAILLEUR: Shimano Tourney FD-TY500
• CRANKSET: Prowheel TA-CQ90 24/34/42T, 170mm (XXS, XS, S), 175mm – (M, L, XL)
• BOTTOM BRACKET: Cartridge, BSA Threaded
• CASSETTE: CS-M3007, 11-34T, 7 Speed
• CHAIN: KMC Z7
• PEDALS: VP Nylon Flat

Brakes

• FRONT BRAKE: C-Star Mechanical Disc Brake
• FRONT BRAKE ROTOR: 160mm
• REAR BRAKE: C-Star Mechanical Disc Brake
• REAR BRAKE ROTOR: 160mm
• BRAKE LEVERS: Shimano EF500 Tourney

Components

• HANDLEBAR: X6 Alloy, 720mm (XXS, XS, S), 740mm (M, L, XL), 25mm Rise
• STEM: Alloy 60mm
• SEATPOST: Alloy 31.6mm
• HEADSET: Zero Stack
• SADDLE: Norco XC
• GRIPS: Norco

Wheels

• FRONT HUB: Alloy QR, 9x100mm QR, 6 Bolt
• REAR HUB: Alloy QR, 10x135mm QR, HG, 6 Bolt
• RIMS: WTB SX19
• TIRES: WTB Starflight 2.25″
• SPOKES/NIPPLES: Stainless Black
