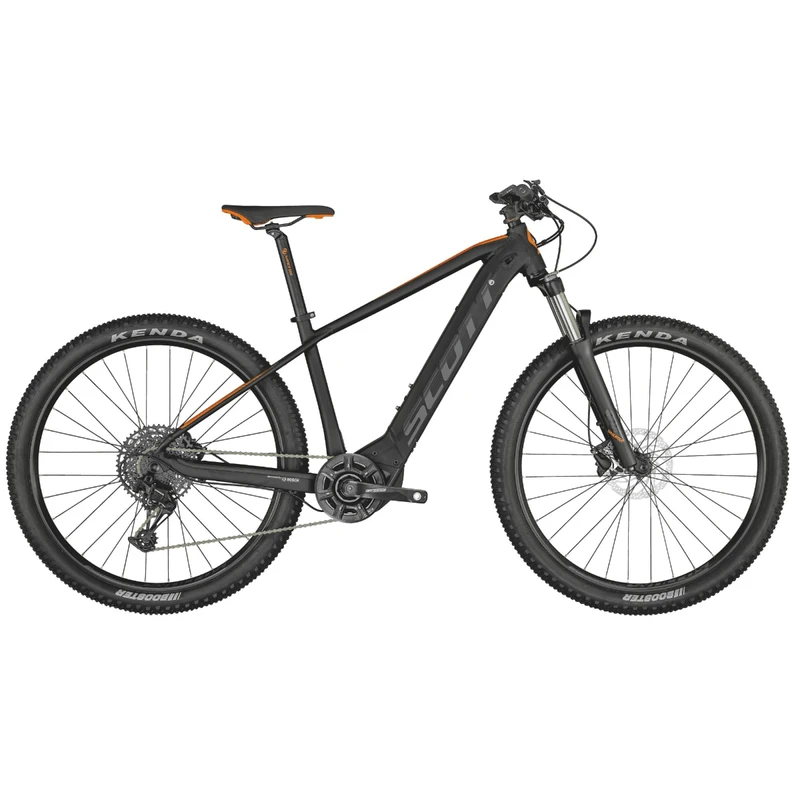

SCOTT ASPECT ERIDE 920 OFF-ROAD EBIKE – 2022
The SCOTT Aspect eRIDE 920 features proven electric assist technology in a comfortable off-road package. With an
integrated battery, and powered by a 625wh Bosch drive system, the Aspect eRIDE will give you hours of trail riding
energy. Rack and fender available.Â
Light Ready
In order to mount a front or rear light, they have already routed the cables in the frame,
and there is no need for an extra battery – the power comes straight from the drive unit battery. (Light not
included)
eRide Advanced Design
With this new E-Bike generation, the design has been pushed further than ever before.
More than a battery integrated into the frame, Scott see’s the bike as a system where every part must be taken
into consideration. Therefore, to improve the integration, they have worked a lot on the line continuity but
also on the design balance from the headtube to the dropouts. Enjoy a bike with a unique character!
Bosch Power Tube
Thanks to their range, long service life, intelligent battery management system and easy
handling, Bosch Power Tube lithium-ion batteries are among the most modern on the market. All those decades of Bosch
experience has paid off!
Rack & Fenders
Feel free to install a rack and the corresponding fender set. The frame has dedicated
fixation points for a clean and reliable solution. (Not included)
Bosch Performance CX Gen 4 Drive Unit
The new Performance CX generation is now 48% smaller and 25% lighter
compare to the previous generation. More compact but no less powerful, the new Bosch Performance CX Generation 4
comes with a maximum power output of 75Nm and 340%. Choose between 5 assist modes or opt for the comfort of the eMTB
mode which automatically adapts the assistance like an automatic gearbox does in a car.Â
***Please note that bike specifications are subject to change without prior notice***Â
- Alloy frame
- Tapered Headtube E2
- Custom butted tubing / internal cable routing
- Bosch Gen4 / Integr. removable Battery / Boost 148x12mm
- DO Kickstand mount / Range Booster Ready
- 120MM
- SR Suntour XCM34 Coil
- 15x110mm QR axle / Tapered Steerer
- Remote Lockout / 120mm travel
- SR Suntour Remote
- Bosch Performance CX
- BEU: 25kmh / INT: 20mph
- PowerTube 625Wh
- Bosch Purion
- 2A Charger
- SRAM NX Eagle / 12 Speed
- SRAM SX Eagle Single Click
- FSA CK-220 / 165mm
- SRAM Eagle 36T DM w/CG / Steel
- SRAM SX Eagle
- SRAM PG1210 / 11-50 T
- Shimano BR-MT200 Disc
- SM-RT30 CL 180mm
- RT-EM300 CL 180mm
- Syncros 3.0 720mm / 31.8mm / 9° / 12mm rise
- Syncros Comfort lock-on grips
- Syncros 3.0 / 7° / Black
- Syncros 3.0 / 31.6mm
- Syncros ER2.5
- Syncros OE / Tapered 1.5″-1 1/8″
- semi integ. OD 50/62mm / ID 44/56mm
- Formula CL-811 / 15x110mm
- Formula CL-148S / Boost 148x12mm
- Stainless Black
- Syncros MD30 / 32H / 30mm / Pin Joint
- Tubeless ready
- Kenda Booster 29×2.6″ / 30TPI
- Kenda Booster 29×2.6″ / 30TPI
- Bosch Light Cable pre-installed F&R
- 128 kg
- The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

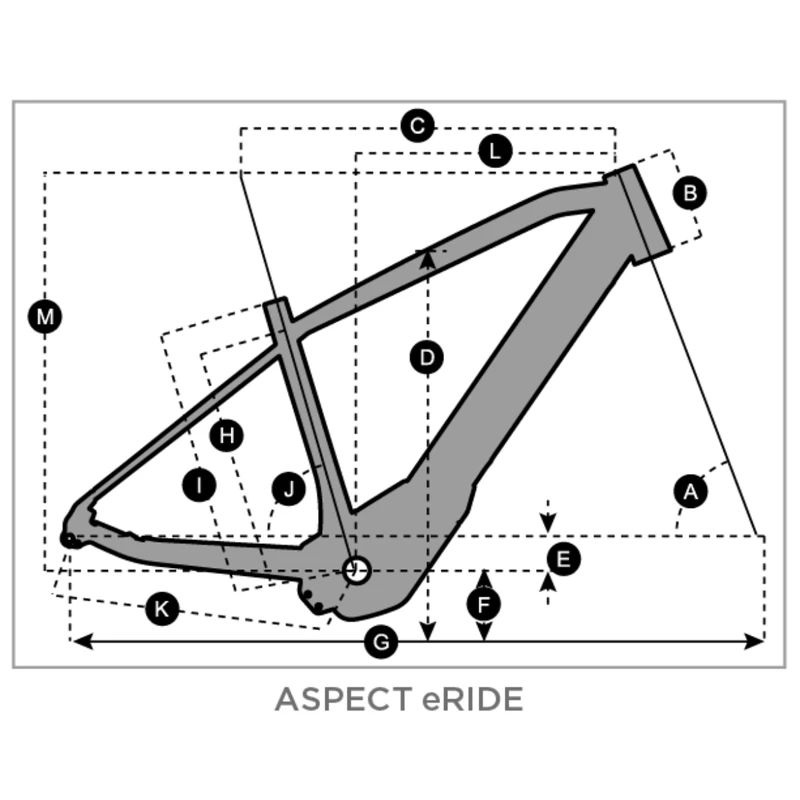

| S / 900 | M / 900 | L / 900 | XL / 900 | ||
|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| B | HEAD TUBE LENGTH | 4.3 IN | 4.7 IN | 5.1 IN | 5.5 IN |
| C | TOP TUBE HORIZONTAL | 22.8 IN | 23.6 IN | 24.4 IN | 25.2 IN |
| D | STANDOVER HEIGHT | 31.0 IN | 31.9 IN | 33.0 IN | 33.6 IN |
| E | BB OFFSET | 2.2 IN | 2.2 IN | 2.2 IN | 2.2 IN |
| F | BB HEIGHT | 12.6 IN | 12.6 IN | 12.6 IN | 12.6 IN |
| G | WHEEL BASE | 45.7 IN | 46.5 IN | 47.3 IN | 48.1 IN |
| H | BB CENTER TO TOPTUBE CENTER | ||||
| I | BB CENTER TO TOP OF SEATTUBE | 15.7 IN | 17.3 IN | 18.9 IN | 20.5 IN |
| J | EFFECTIVE SEAT ANGLE GEN3 | 75.2 ° | 75.0 ° | 74.9 ° | 74.7 ° |
| K | CHAINSTAY | 18.9 IN | 18.9 IN | 18.9 IN | 18.9 IN |
| L | REACH | 15.7 IN | 16.3 IN | 17.0 IN | 17.7 IN |
| M | STACK | 25.1 IN | 25.4 IN | 25.7 IN | 26.1 IN |
| N | STEM LENGTH | ||||
| 0 | TRAIL | 3.6 IN | 3.8 IN | 3.8 IN | 3.8 IN |
