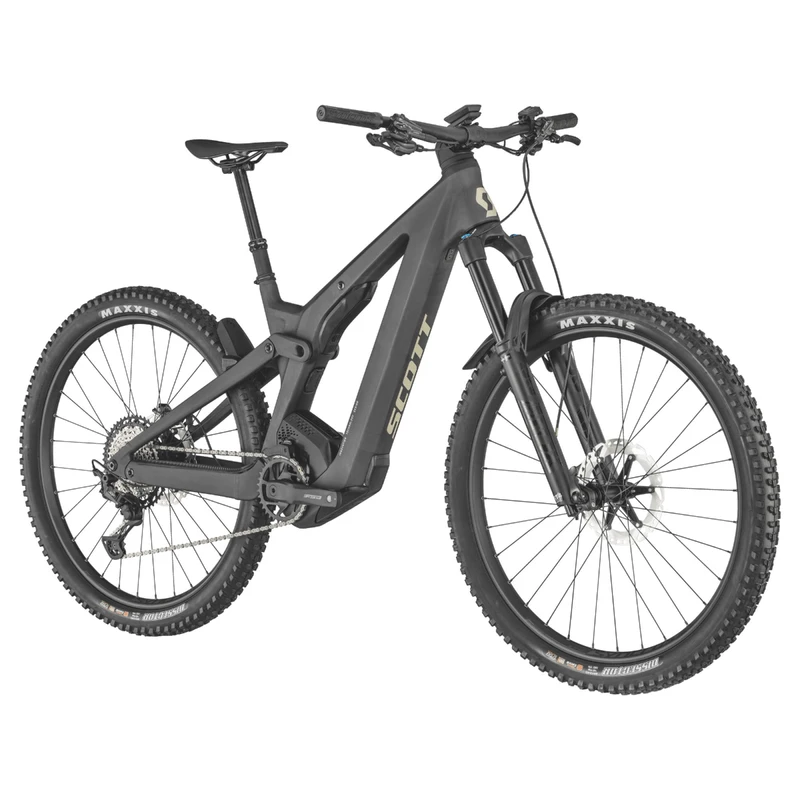

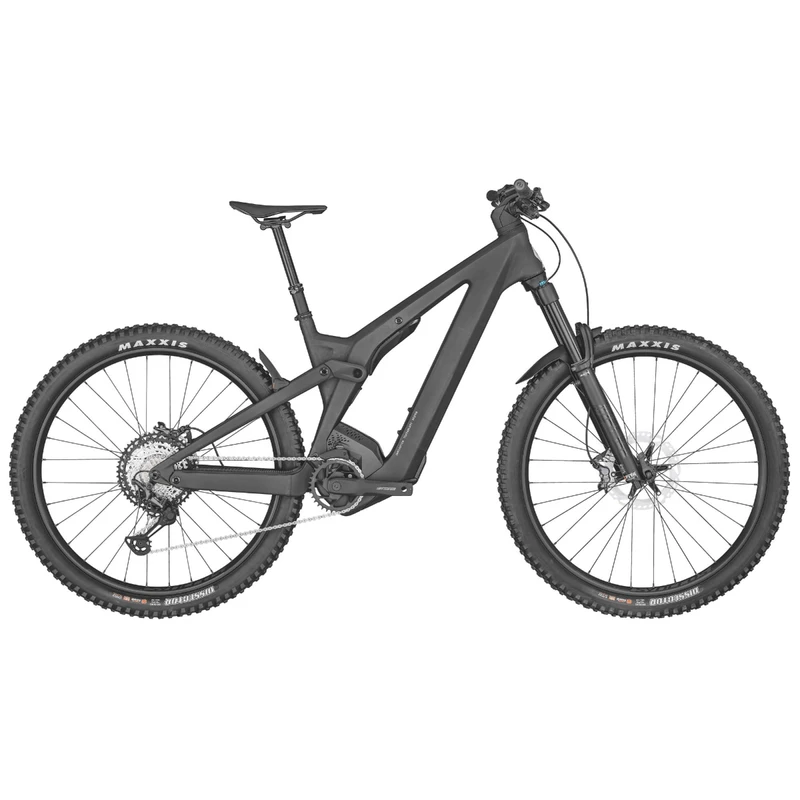

Scott Patron ERIDE 900 E-Bike 2022

SCOTT PATRON ERIDE 900 E-BIKE 2022

The all-new Patron eRIDE 900 was designed as a system optimized for all-day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE – boss the trails.

FEATURES

• Patron eRIDE Carbon/Alloy Frame
• FOX 38 Perf. Elite 160mm Fork
• FOX Nude T eRIDE EVOL, 160mm, TwinLoc
• Shimano XT 12 Speed
• Bosch CX, 750Wh PowerTube
• Shimano XT 4 Piston Disc Brakes
• Maxxis Foldable Tires
• FOX Dropper Post / Syncros Parts
• Bosch Light Cable pre-installed F&R

TECH SPECS

• FRAME:
• Carbon Main Frame / Alloy SST-CST-Link
• Virtual 4 link kinematic VLK
• 29×2.6 / Boost 148x12mm UDH
• 160mm travel / Bosch Gen4 / Integr. removable Battery
• 1.8″ Headtube, Central Kickstand Mount
• Integr. Cable
• TRAVEL:
• Front: 160mm
• Rear: 160mm
• FORK:
• FOX 38 Perf. Elite Air / eMTB+ / FIT4
• 3-Modes with low Speed adj. / QR Axle 15x110mm axle
• 44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel
• REAR SHOCK:
• FOX NUDE T eRIDE EVOL / Trunnion
• SCOTT custom w. travel / geo adj.
• 3 modes: Lockout-Traction Control-Descend
• custom large air volume / DPS / Reb. Adj.
• Travel 160-115-Lockout / 205X60mm
• REMOTE SYSTEM:
• SCOTT TwinLoc 2 Technology
• Suspension & Dropper Remote
• 3 modes
• DRIVE UNIT:
• Bosch Performance CX
• EU: 25kmh / INT: 20mph
• BATTERY: PowerTube 750Wh
• DISPLAY: Bosch LED Remote & Kiox 300
• CHARGER: 4A Charger
• REAR DERAILLEUR: Shimano XT / 12 Speed
• SHIFTERS: Shimano SL-M8100
• CRANKSET: FSA CK-745 165mm / 34T
• CHAINGUIDE: e*thirteen / e*spec Slider
• CHAINRING: FSA WB604 / 34T / DM / Steel
• CHAIN: Shimano CN-M8100
• CASSETTE: Shimano CS-M8100 / 10-51 T
• BRAKES: Shimano XT / BR-M8120 4 Piston
• ROTOR:
• Front: RT-MT800 CL 203mm
• Rear: RT-EM800 CL 203mm
• HANDLEBAR:
• Syncros Hixon 1.5 / Alloy 7050D.B.
• 12mm rise / 9° / 780mm
• Syncros Pro lock-on grips
• H’STEM:
• Syncros AM1.5 / 7050 Alloy
• 31.8mm / 4° / 1 1/8″
• SEATPOST:
• FOX Transfer Dropper Post
• 31.6mm / S size 125mm / M & L size 150mm / XL size 175mm
• SEAT:
• Syncros Tofino 1.5 Regular
• Titanium rails
• HEADSET:
• Acros / 1.8″
• ZS66 OD74 / integr. Cable
• HUB (FRONT): Formula CL-811 / 15x110mm
• HUB (REAR): Formula ECT-1481 / Boost 148x12mm
• SPOKES: Stainless Black
• RIMS:
• Syncros MD30 / 32H / 30mm / Pin Joint
• Tubeless ready
• FRONT TIRE:
• Maxxis Dissector 29×2.6″
• 120TPI Foldable Bead
• EXO+ / TR Tubeless ready
• 3C Maxx Terra
• REAR TIRE:
• Maxxis Dissector 29×2.6″
• 120TPI Foldable Bead
• EXO+ / TR Tubeless ready
• 3C Maxx Terra
• LIGHTS: Bosch Light Cable pre-installed F&R
• EXTRAS:
• Syncros Trail 2 fender 36/38
• Syncros eRIDE integrated light fender
• APPROX WEIGHTS IN KG: 24.60
• APPROX WEIGHTS IN LBS: 54.23
• MAX. SYSTEM WEIGHT:
• 128 kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
