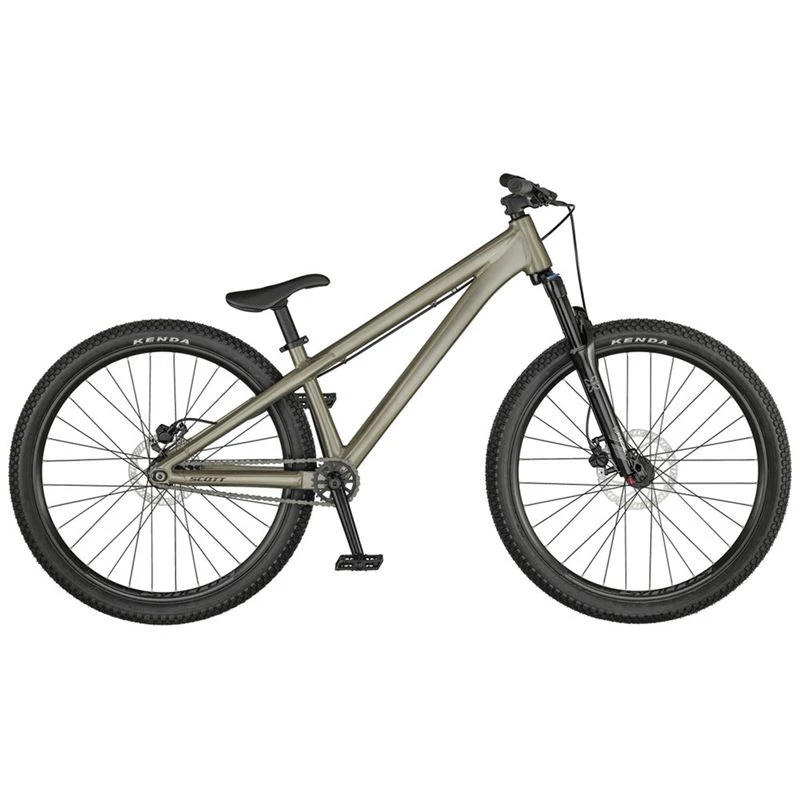

Scott Voltage YZ 0.1 Bike – 2022

SCOTT VOLTAGE YZ 0.1 BIKE – 2022

The SCOTT Voltage YZ 0.1 is our Pro riders replica bike built around a high-end Alloy dirtjump mountain bike frame. Equipped with ultashort adjustable chain stays, a tapered headtube and high-end components, this bike is perfect for hitting the pumptrack, the dirtjumps, or jibbin’ through the streets.

FEATURES

• Voltage Alloy Frame
• X-Fusion Slant DJ 100mm
• Singlespeed
• Tektro HDM275 Disc brakes
• Kenda K-RAD 26″x 2.3 Tires

TECH SPECS

• FRAME: Voltage YZ DJ 6061 Alloy / Hydroformed tubing / Disc Dropout / horizontal for 135x10mm singleSpeed
• FORK: X-Fusion Slant DJ / 100mm travel / Air / Lo Comp / Rebound
• CRANKSET: SCOTT Cr-Mo 3-piece cranks / 170mm / 25T Alloy BMX sprocket
• BB-SET: Jien-Yuan BB92 / 19mm Axle
• CHAIN: KMC Z510
• CASSETTE: Sprocket / 12 T
• BRAKES: Tektro HDM275 Hydr. Disc
• ROTOR: Tektro / 6 Bolt / 160mm
• HANDLEBAR: Syncros Hixon 2.0 Rise / 31.8mm / 800mm / 20mm Rise / Syncros Pro DH lock-on grips
• H’STEM: Syncros XM1.5 / 31.8mm / 40mm / 0°
• SEATPOST: Syncros DJ1.5 / Pivotal / 31.6mm
• SEAT: Syncros DJ1.5 / Pivotal
• HEADSET: Syncros OE Press Fit E2 / Tapered 1.5″-1 1/8″ / OD 50/62mm / ID 44/56mm
• HUB (FRONT): Formula DC-51 / 15x100mm / thru axle
• HUB (REAR): Formula DC42-N / w/tracknut / single Speed
• SPOKES: Stainless 14G / black / 2.0mm
• RIMS: Syncros MD25 Disc / 32H
• FRONT TIRE: Kenda K905 K-RAD / 30TPI / wire / 26×2.3″
• REAR TIRE: Kenda K905 K-RAD / 30TPI / wire / 26×2.3″
• PEDALS: Wellgo B107.N flat
• APPROX WEIGHTS IN KG: 12.80
• APPROX WEIGHTS IN LBS: 28.22
• MAX. SYSTEM WEIGHT: 128 kg / The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
