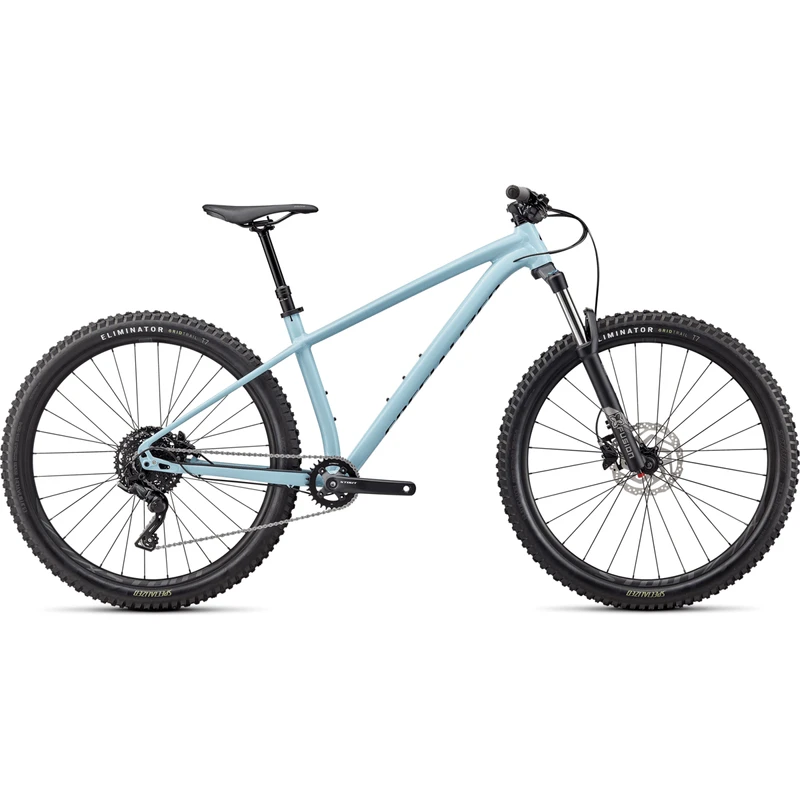

Specialized Fuse 27.5 Bike

SPECIALIZED FUSE 27.5 BIKE

Calm under pressure, yet deft and precise, the Fuse is an entirely different kind of hardtail. Featuring an all-new longer, lower, and rowdier chassis and 27.5×2.3 wheels and tires, the Fuse 27.5 handles rough, sketchy descents and steep, technical climbs with absolute confidence.

FEATURES

• 130-millimeters of suspension courtesy of an X-Fusion fork.
• Highlights include hydraulic disc brakes, a dropper post, and single-ring drivetrain.
• Durable 29mm interal width alloy wheelset.

TECH SPECS

FRAMESET

• Frame – Specialized A1 Premium Aluminum, 148mm thru-axle, tapered head tube, internal cable routing
• Seat Binder – Alloy, 38.6mm

Suspension

• Fork – X-Fusion MIG 27.5, External Rebound and Compression adjust, coil spring, 46mm Offset, 130mm of travel

COCKPIT

• Stem – Stout 3D-forged alloy, 31.8mm, 6-degree rise
• Handlebars – Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
• Grips – Specialized Trail Grips, lock-on
• Saddle – Body Geometry Bridge Saddle, steel rails
• SeatPost – TranzX Dropper, 30.9mm, S: 100mm, M-XL: 120mm

BRAKES

• Front Brake – Shimano BR-MT200, hydraulic disc, 180mm
• Rear Brake – Shimano BR-MT200, hydraulic disc, 160mm

DRIVETRAIN

• Rear Derailleur – microSHIFT Advent, 1×9 w/ clutch
• Shift Levers – microSHIFT Advent, 9-speed
• Cassette – microSHIFT Advent, 9-speed, 11-42t
• Chain – KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link
• Crankset – Stout, forged alloy, 76mm BCD, 30T
• Bottom Bracket – Square-tapered, 73mm, internal bearings, 122.5mm spindle

WHEELS

• Rims – Alloy, disc only, double-wall, 29mm internal width, 28h, tubeless compatible
• Front Hub – Shimano MT400-B, Centerlock 28h, 15×110 Boost
• Rear Hub – Shimano MT400-B, Centerlock, 12×148 Boost, 32h
• Front Tire – Eliminator, GRID TRAIL casing, GRIPTON T7 compound, 2Bliss Ready, 27.5 x 2.3″
• Rear Tire – Eliminator, GRID TRAIL casing, GRIPTON T7 compound, 2Bliss Ready, 27.5 x 2.3″
• Inner Tubes – Presta, 40mm valve

WHEELS & TIRES

• Spokes – Stainless, 14g
