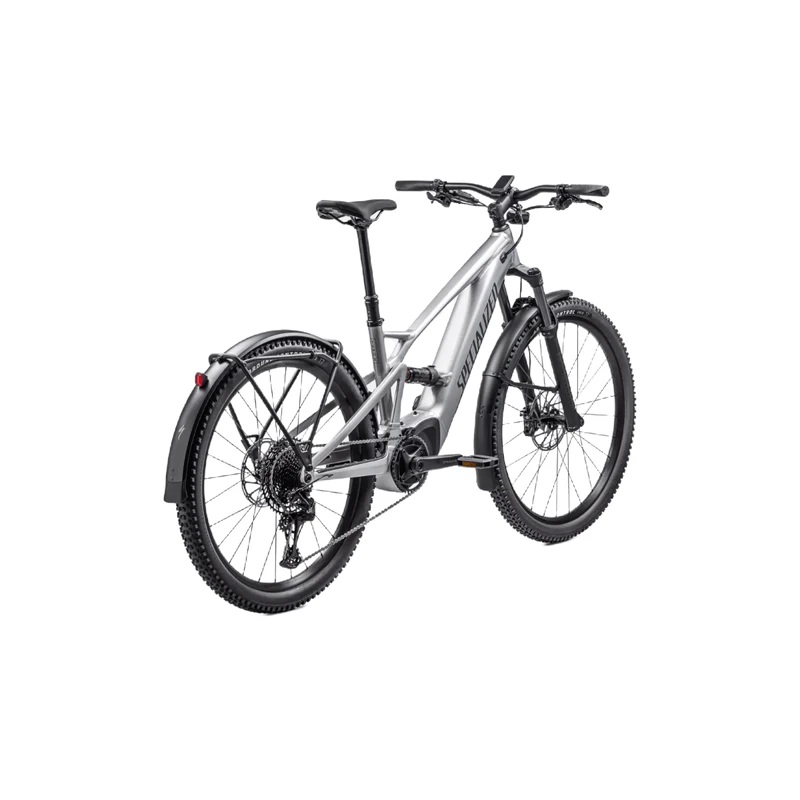

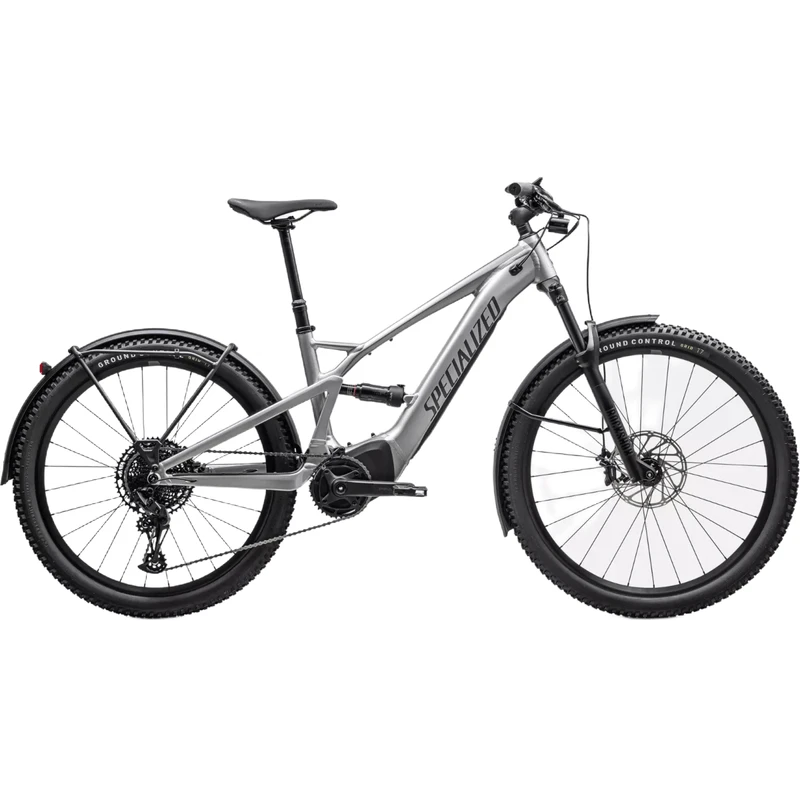

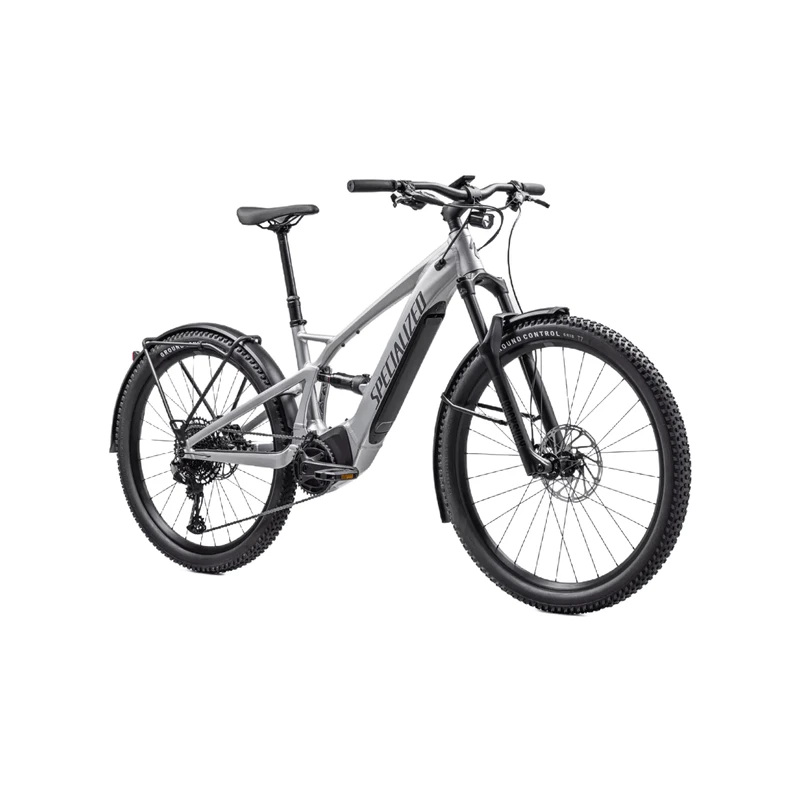

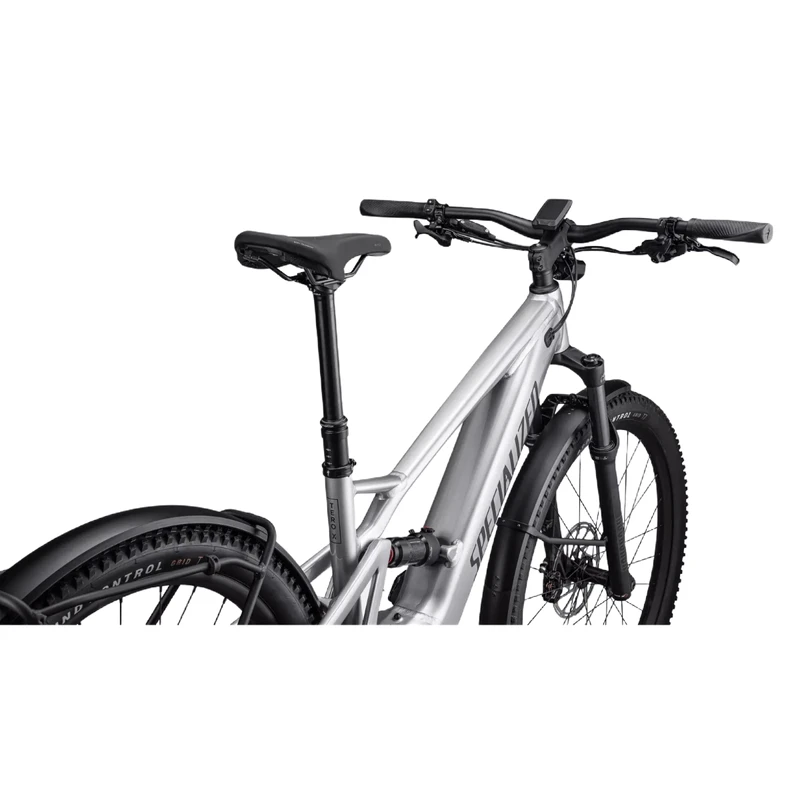

Specialized Turbo Tero X 4.0 E-Bike

SPECIALIZED TURBO TERO X 4.0 E-BIKE

The Turbo Tero X means one thing: you’re going to need a bigger map. With ride anywhere range, this full-suspension electric bike is Specialized’s go-anywhere, over anything, with everything vehicle. Plus, with enough storage space to pack in a few backcountry comforts, you’ll discover new adventures easier than ever. The only question left to ask is where to?

POWERFUL: Pedal beyond the map with the seamless performance of the Specialized Full Power 2.0E motor and the Turbo Operating System. The Specialized Full Power 2.0E motor has been tested against the most rugged terrain, in the harshest conditions, to ensure the highest quality experience. An intelligent e-bike operating system that seamlessly integrates Specailized’s fully custom, purpose-built software and hardware so you can ride farther and explore more than ever before. What’s more, the MasterMind Display provides instant tunability right at your fingertips while keeping an eye on the built-in range estimator to ensure you’re hitting maximal range and ride time. Plus, the MasterMind Display seamlessly integrates with the Mission Control app to enable over-the-air updates with integrated range optimization tools, advanced tuning, on-ride diagnostics, and more.

SMOOTH: The pothole-eating, bump-smoothing, rock-flattening confidence, comfort, and control built into the Tero X tame the most rugged terrain. Thanks to ample front and rear suspension, a performance-minded upright riding position, S[ecialized’s world-renowned Ground Control tires, and the confidence of a dropper seatpost, they’ve made it easier than ever to explore rough routes with confidence.

FEATURES

FRAMESET

• Seat Binder: Alloy, 38.6mm
• Frame: E5 Aluminum, full suspension, mullet style for M-XL, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount

WHEELS

• Rear Hub: Specialized alloy, disc, sealed cartridge bearings, 6-bolt, 12x148mm thru-axle, 28h, HG Freehub
• Spokes: DT Swiss Industry
• Rear Tire: Ground Control Grid T7, 2Bliss Ready, 27.5×2.35
• Rims: Roval Traverse, hookless alloy, 30mm inner width, tubeless ready
• Front Tire: Ground Control Grid T7, 2Bliss ready, S: 27.5×2.35, M-XL: 29×2.35
• Front Hub: Specialized alloy, disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
• Inner Tubes: Standard 40mm PV 29/27.5×1.75-2.4

COCKPIT

• Saddle: Bridge Sport, Steel rails, 155mm
• Grips: Specialized Body Geometry Contour, lock-on
• Stem: Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount

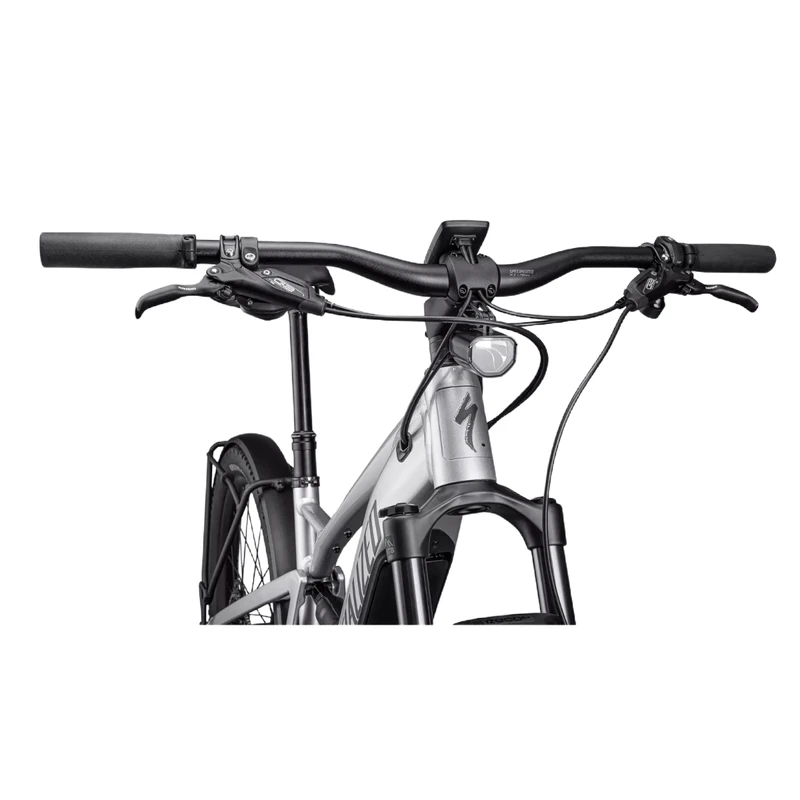

• Handlebars: Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S 720mm, M-XL 750mm
• SeatPost: TranzX dropper, infinite adjustable, two-bolt head, bottom mount cable routing, Handlebar remote, 34.9mm, S: 150mm, M: 170mm, L/XL: 200mm

E-BIKE

• Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V
• Wiring Harness: Custom wire harness

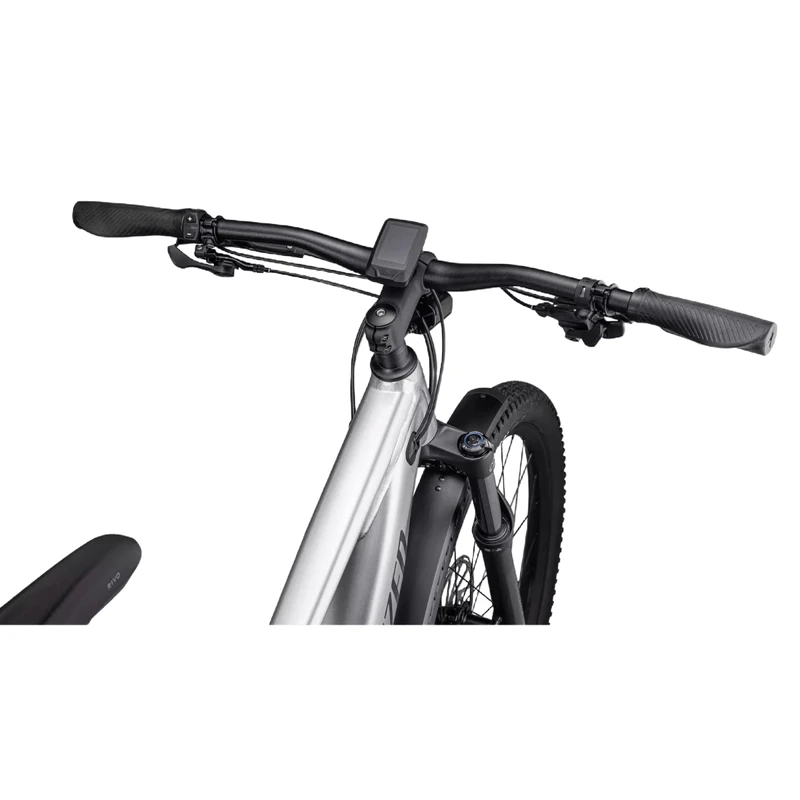

• UI/Remote: MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth connectivity, customizable display pages

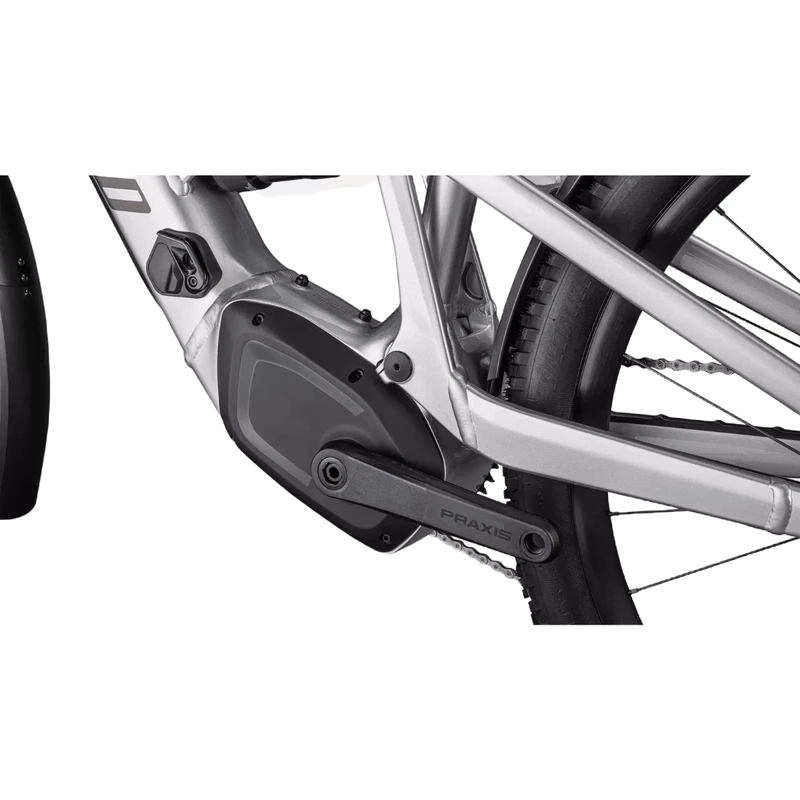

• Motor: Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal
• Battery: Specialized U2-530, alloy casing, state of charge display, 530Wh

ACCESSORIES

• Headlight: Lezyne EBIKE CLASSIC STVZO E500, 500 Lumen, 12V, Stem mounted
• Taillight: Lezyne EBIKE FENDER REAR STVZO, wide light spread, 12V
• Bell: Simple bell
• Pedals: Specialized Commuter w/ grip tape & reflectors
• Fenders: Specialized DRYTECH fenders, 65mm width, stainless steel fenderstays

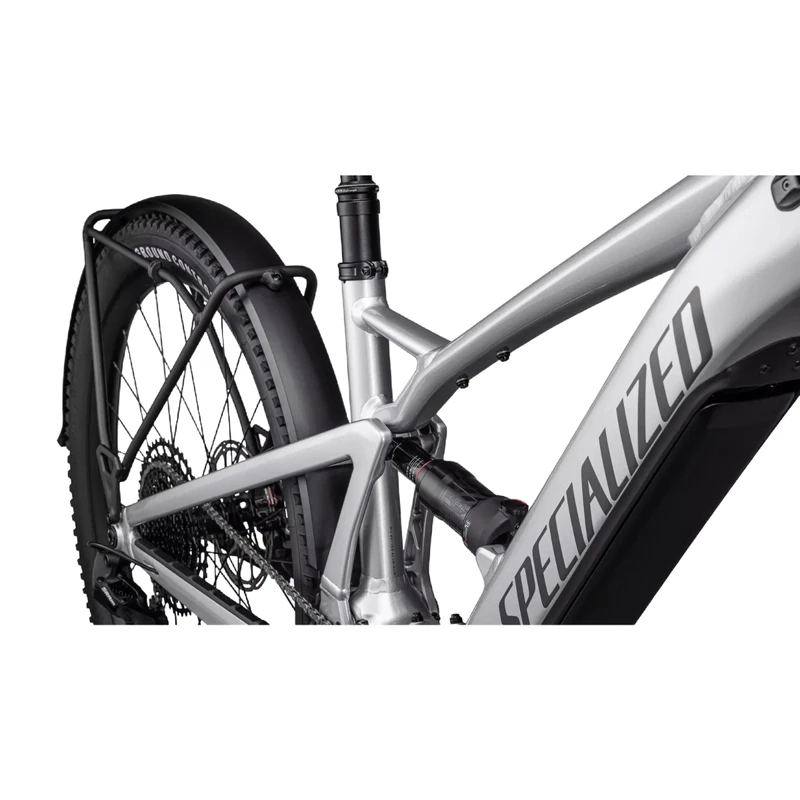

• Rack: Specialized Pannier-rack, alloy tubing, max. 20kg load
• Kickstand: Specialized kickstand, 40mm mount
• Bike Lock: Turbo System Lock

DRIVETRAIN

• Crankset: Praxis forged M30, custom offset
• Chain: SRAM NX Eagle, 12-speed
• Cassette: SRAM PG-1210 Eagle, 12-speed, 11-50t
• Shift Levers: SRAM SL SX Eagle, 12-speed
• Rear Derailleur: SRAM SX Eagle, 12-speed
• Chainrings: Sram X-Sync Eagle, 104BCD, 38T, EMTB specific, steel

BRAKES

• Rear Brake: Sram G2 RE, E-MTB specific brake, 4-piston caliper, hydraulic, 180mm rotor
• Front Brake: Sram G2 RE, E-MTB specific brake, 4-piston caliper, hydraulic, 200mm rotor

SUSPENSION

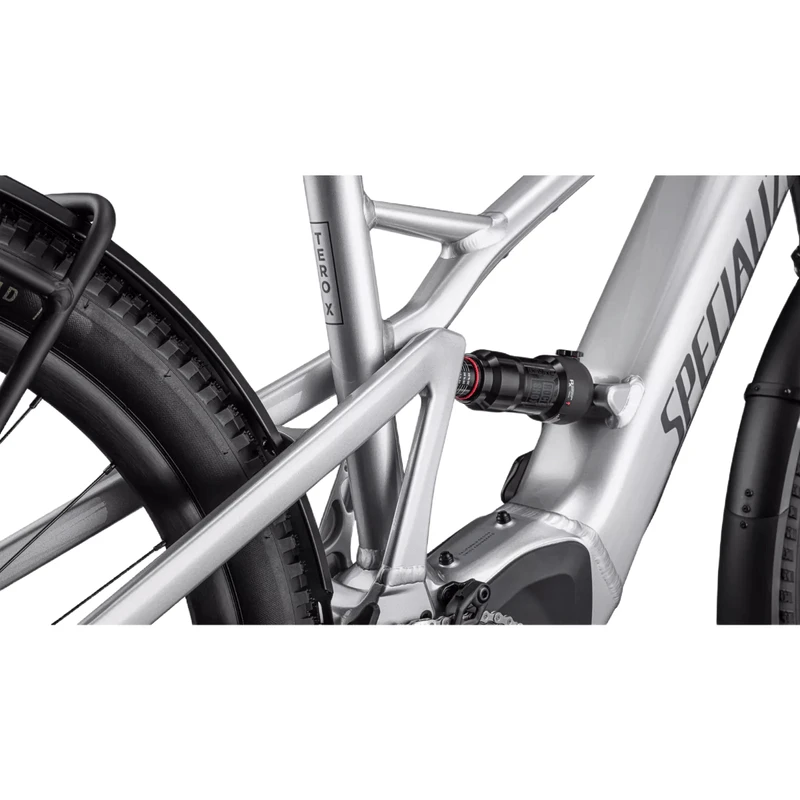

• Rear Shock: RockShox Deluxe Select R, rebound adjust, 45x190mm
• Fork: RockShox Recon Silver RL, lockout, 130mm, fender mounts
