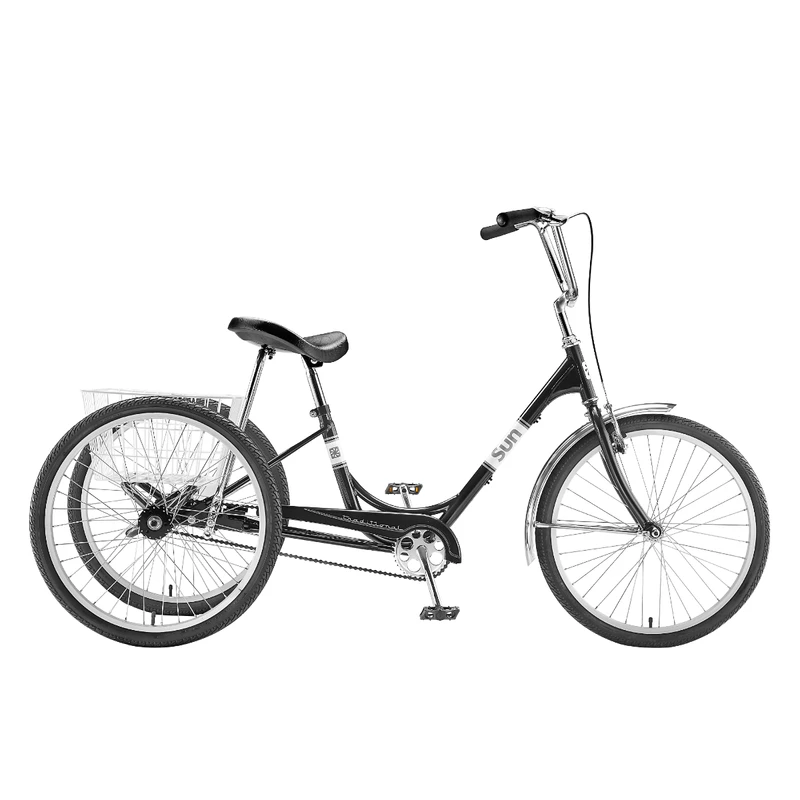

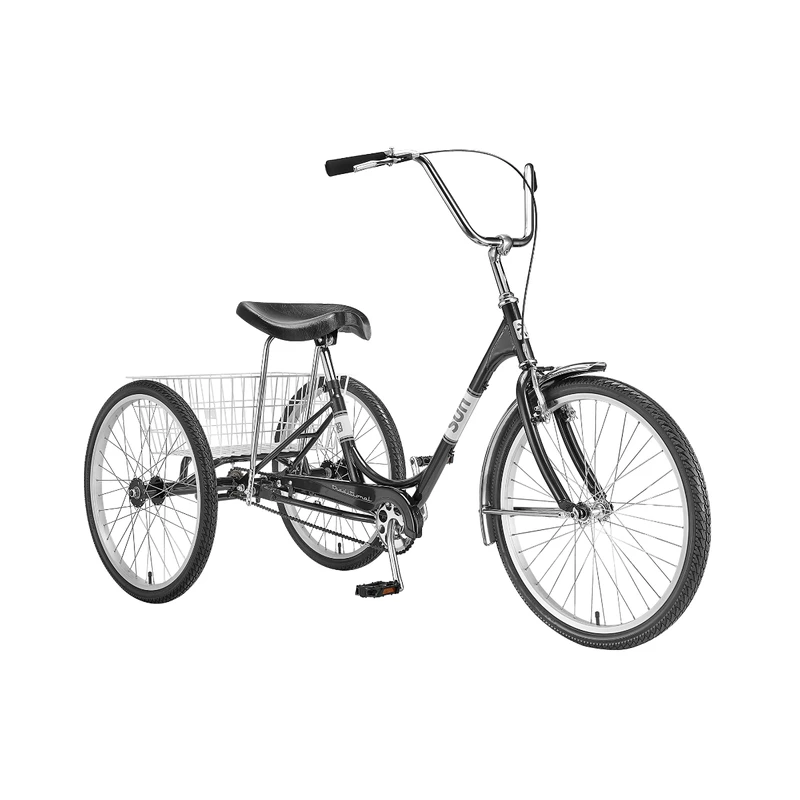

Sun Bicycles Traditional 24 Trike

SUN BICYCLES TRADITIONAL 24 TRIKE

The Traditional trike, a classic in its field, is purpose built with comfort, stability, durability, and practicality in mind. A super low step-through frame, upright riding position, Sun custom tractor saddle, and rear basket are just a few features that make Sun Bicycles trike an ideal choice for trips to the market, getting a little exercise or just getting around. The Traditional trike accepts a wide range of available accessories and gearing options to suit your exact needs and riding style.

FEATURES

• High-tensile steel Low-Step frame
• Single-speed models available in 20″ and 24″ wheel sizes (Additional gearing options available separately)
• Seven-speed models available in 24″ wheel sizes
• Single and seven-speed models are equipped with an alloy linear-pull front brake with parking lock
• Seven-speed models include a rear disc brake with parking lock
• One-piece crank with caged bearing bottom bracket
• Alloy rims with stainless steel spokes
• 20″ or 24″ x 1.75″ tires
• 9″ high-rise steel handlebar and stem, foam grips
• Sun Tractor saddle with heavy duty steel base
• Steel chain guard and nickel plated front fender
• Vinyl coated steel wire basket

TECH SPECS

Frameset Specs

• FRAME: High Tensile Steel, TIG-Welded
• FORK: 1-1/8” High Tensile Steel, Curved Tapered Legs, Double Eyelets

Drivetrain Specs

• CRANK SET: One-Piece Steel, 6″
• CHAINWHEEL: Steel, 36T
• BOTTOM BRACKET: Steel for OPC, Caged Bearings
• FREEWHEEL: 20T x 1/2″ x 1/8″
• CHAIN: 1/2″ x 1/8″, 130 Links
• PEDALS: Plastic, 1/2″, Black Platform

Brake Specs

• FRONT BRAKE: Alloy, Linear Pull
• BRAKE LEVER: Alloy, Linear Pull W/Parking Lock, Black/Silver

Component Specs

• HANDLEBAR: Steel, 27.6″ Wide x 9″ Rise x 25.4mm Clamp
• STEM: Steel, 25.4mm, 205mm Quill x 60mm Ext
• HEADSET: Steel, Caged Bearings, 25.4 x 34 x 30mm
• GRIPS: Foam, Black
• SADDLE: Western Style, Black
• SEAT POST: Steel, 12″
• SEAT CLAMP / BINDER BOLT: Integrated Bolt/Nut Type, Silver

Wheel Specs

• FRONT WHEEL: 24″ x 1.75 x 36H x 14G Alloy-Trike, Bolt-On
• REAR WHEEL: 24″ x 1.75 x 36H x 14G Alloy-Trike, Bolt-On
• FRONT HUB: Steel, with 3/8″ Bolt-On Axle
• REAR HUB: Steel, Large Flange, with Cartridge Bearings
• SPOKES: 14G Stainless Steel
• RIMS: 24″ x 36H x 14G, Alloy
• TIRES: 24″ x 1.75, Black Wall
• TUBES: 24″ x 1.75″, Schrader Valve

Accessory Specs

• FRONT FENDER: Steel, Full Wrap, W/Single Strut, Stainless Steel
• BASKET: Steel, Vinyl Coated, 21″ Long x 15″ Wide x 9″ High

Replacement Parts Specs

• FRAME REAR UNIT: High Tensile Steel, TIG-Welded, Disc and Der Compatible
• SEAT SUPPORT BAR: Steel, 19″
• CHAINGUARD: Steel, Painted
• REAR UNIT HARDWARE: Rear Unit Hardware (Includes (4) bolts, (6) nuts, (4) washers)
• REAR UNIT BEARING: Rear Unit Bearing for 15mm Axle (Quantitiy of (6) needed for rear unit)
• REAR UNIT AXLE COMPLETE: Rear Unit Axle, 15mm x 765mm (Includes (1) axle, (2) nuts, (2) washers, (1) axle spacer)
• REAR UNIT AXLE NUT: Rear Unit Axle Nut (For 15mm / 17mm axle)
• REAR UNIT AXLE WASHER: Rear Unit Axle Washer (For 15mm axle)
• REAR UNIT AXLE SPACER: Rear Unit Axle Spacer, 20mm (For 15mm axle)
• REAR UNIT AXLE KEY: Rear Unit Axle Key (For 15mm/17mm axle)
• FREEWHEEL ADAPTOR: Freewheel Adapter (For 15mm axle, includes (2) set screws)
• FREEWHEEL ADAPTOR SET SCREW: Set Screw for Freewheel Adapter
• SADDLE HARDWARE: Western Saddle Support Bar Clamps (2 Pcs, DOES NOT INCLUDE NUT)
• REAR HUB BEARINGS: Cartridge Bearings
• BASKET HARDWARE: Trike Basket Mounting Hardware
• TOUCH-UP PAINT: Touch-up Paint

Other Specs

• WEIGHT: 49 Lbs.
• WEIGHT LIMIT: 250 Lbs.
• RECOMMENDED FIT: 5’0″ to 6’4″
