Trek Domane+ SLR 6 E-Bike

TREK DOMANE+ SLR 6 E-BIKE

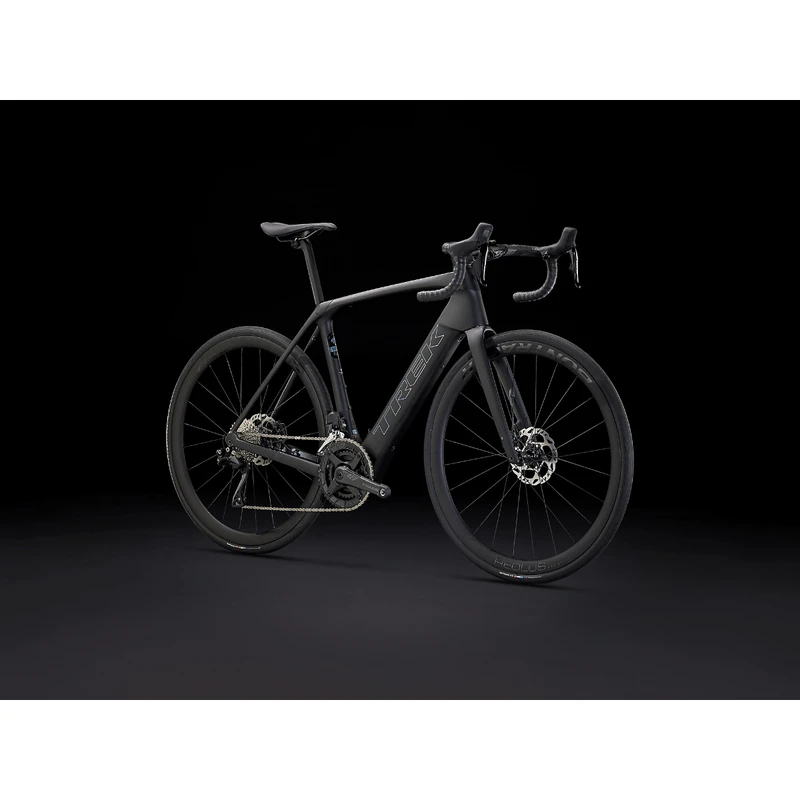

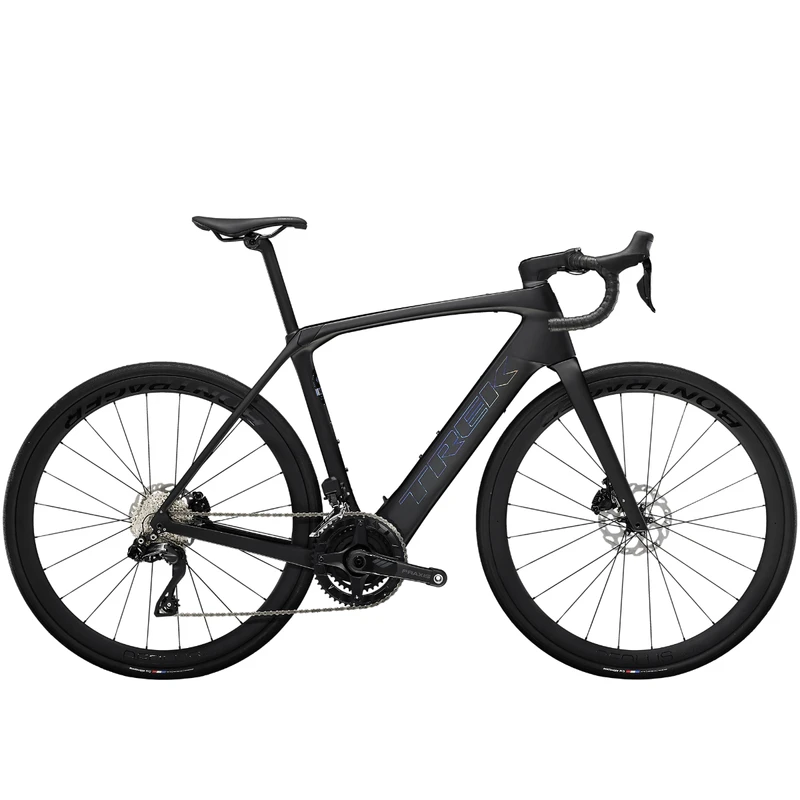

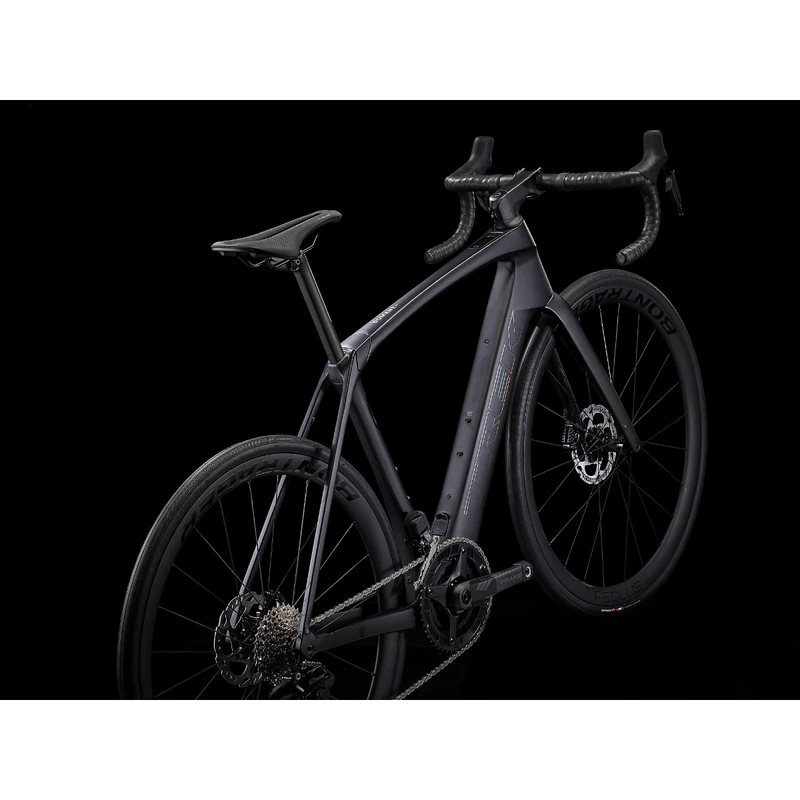

Domane+ SLR 6 is a category-redefining, high-speed assist carbon e-road bike that doesn’t look, fit, or feel like a standard e-bike. It’s built on an 800 Series OCLV Carbon frame that hides a compact and refined motor to elevate your ride with natural-feeling assist. The motor quietly blends in with the elements, all but disappearing under you on peaceful solo spins and club rides, so you stay more connected to the experience while enjoying extra power for crushing climbs and long, epic adventures. To top it all off, you get to enjoy the blazing fast shifting of a Shimano 105 Di2 drivetrain.

FEATURES

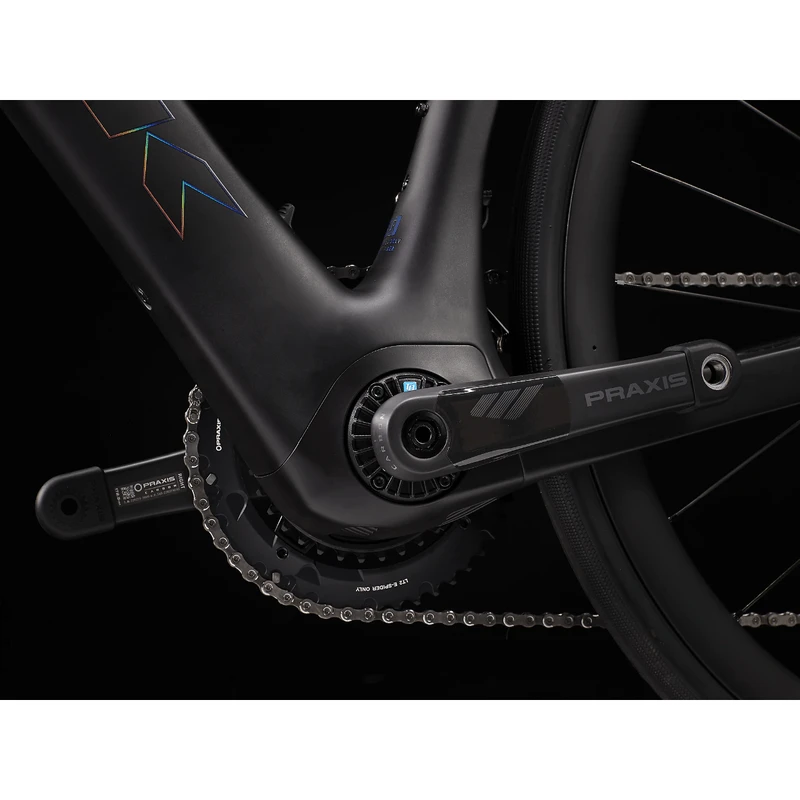

• The TQ harmonic pin ring motor is impressively discreet, compact, light, whisper-quiet, and offers a powerful assist up to 28mph

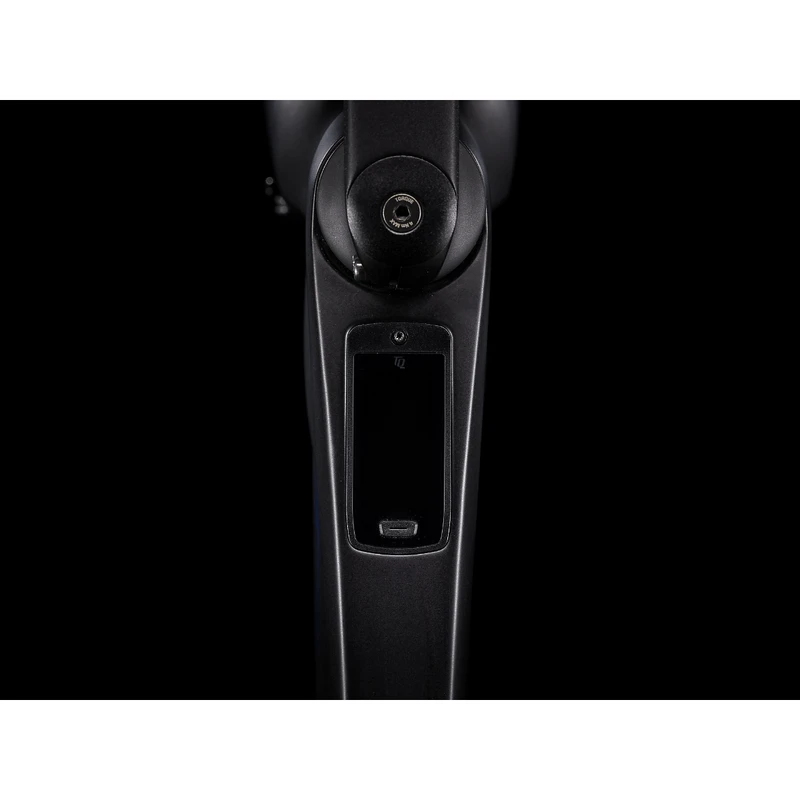

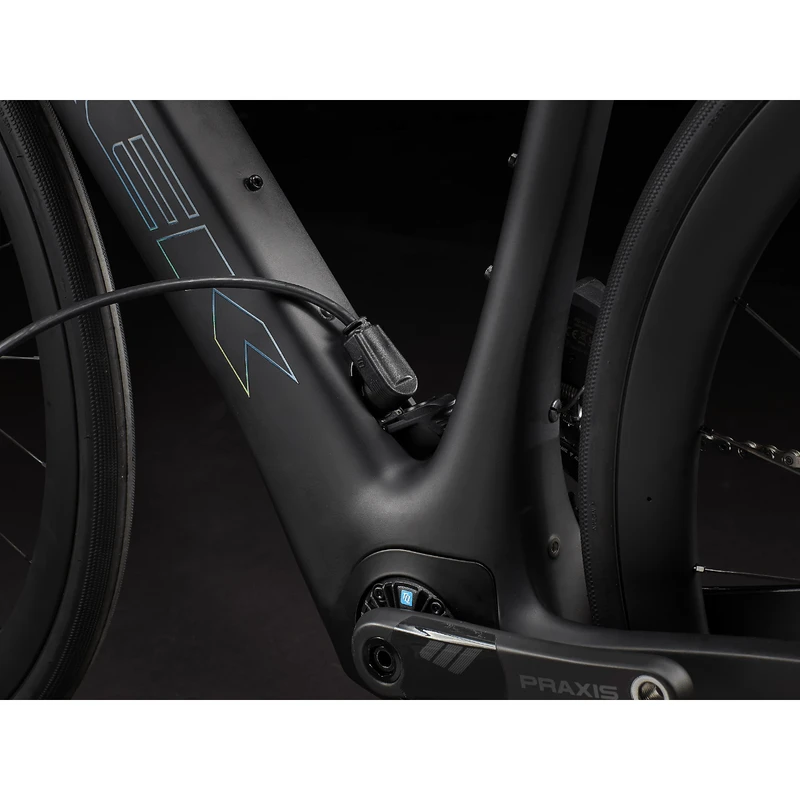

• The smart charge port, sleek integrated display, and discreet controls keep the bike looking and feeling like a traditional road bike
• Stable endurance geometry partners with road-smoothing rear IsoSpeed that absorbs bumps in the road for a smoother, more comfortable ride
• On long rides, you can add on a Range Extender that fits neatly in the bottle cage and gives you the power you need to go the extra distance
• It comes equipped with a 2x Shimano drivetrain and fast 32mm tires for the pavement, but can fit up to 40mm tires when you want more off-road versatility

TECH SPECS

Frameset

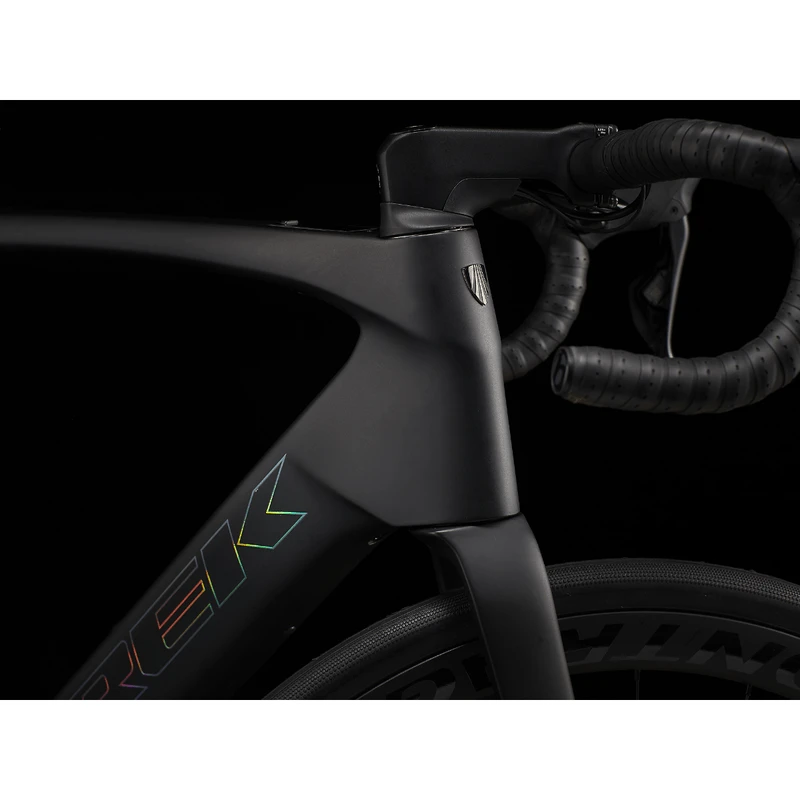

• Frame: 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle
• Fork: Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

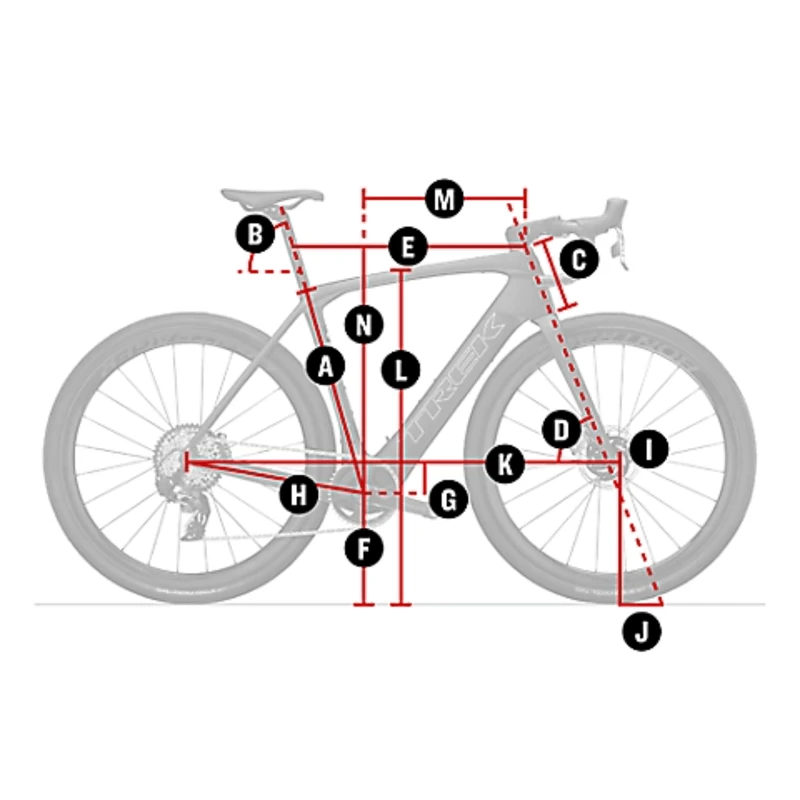

• Frame fit: Endurance

Wheels

• Wheel front: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
• Wheel rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, Shimano 11 speed freehub, 142x12mm thru axle
• Skewer front: Bontrager Switch thru axle, removable lever
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready
• Tire: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
• Tire part: Bontrager TLR sealant, 6oz
• Rim strip: Bontrager Aeolus XXX rim strip
• Max tire size: 40c without fenders, 35c with fenders

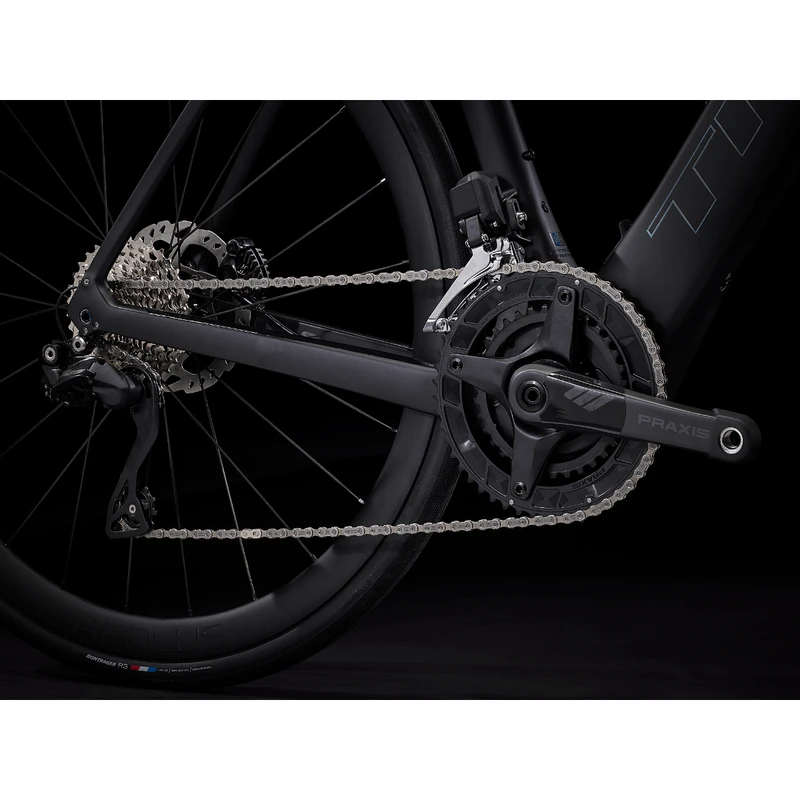

Drivetrain

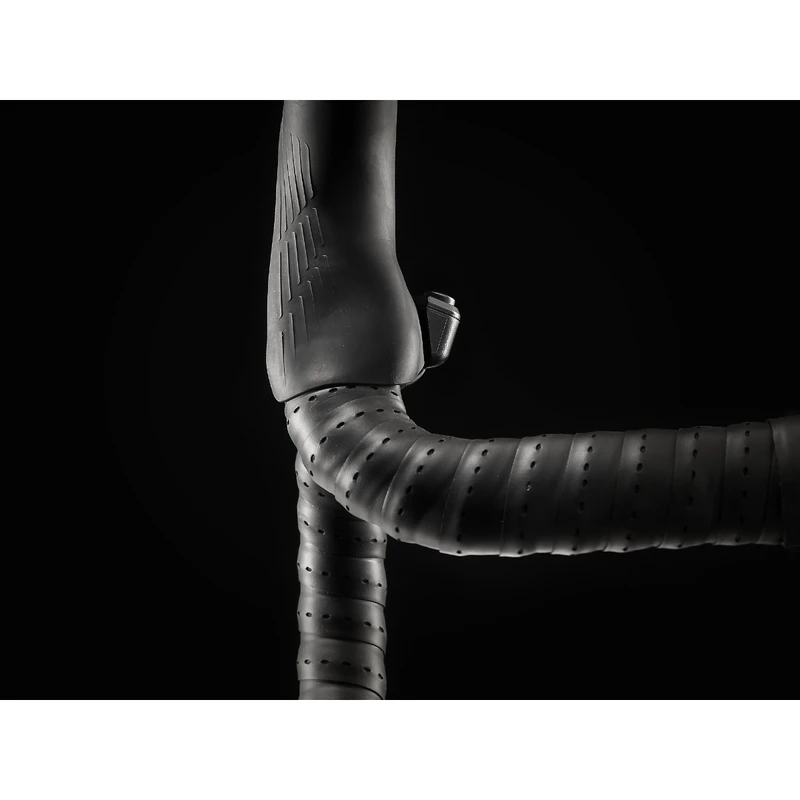

• Shifter: Shimano 105 R7170 Di2, 12 speed
• Front derailleur: Shimano 105 R7150 Di2, braze-on, down swing
• Rear derailleur: Shimano R7150 Di2, 36T max cog
• Crank:
• Size: 50, 52 Praxis Carbon, 170mm length
• Size: 54, 56 Praxis Carbon, 172.5mm length
• Size: 58, 60, 62 Praxis Carbon, 175mm length
• Chainring: Praxis, 50/34T, 12 speed
• Cassette: Shimano 105 7100, 11-34, 12 speed
• Chain: Shimano SLX M7100, 12 speed
• Max chainring size: 1x: 46T, 2x: 52/36

Components

• Saddle:
• Size: 50, 52 Bontrager Verse Short Elite, hollow stainless steel rails, 155mm width
• Size: 54, 56, 58, 60, 62 Bontrager Verse Short Elite, hollow stainless steel rails, 145mm width
• Seatpost:
• Size: 50, 52, 54, 56 Domane carbon seatpost, KVF shaping, 20mm offset, 280mm length
• Size: 58, 60, 62 Domane carbon seatpost, KVF shaping, 20mm offset, 320mm length

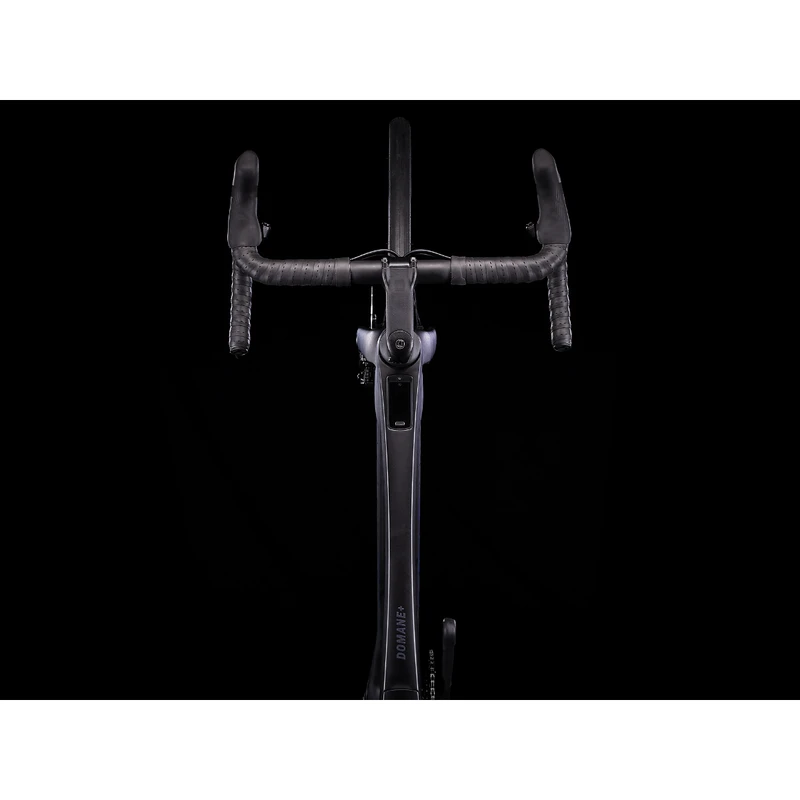

• Handlebar:
• Size: 50, 52 Bontrager Pro IsoCore VR-SF, 40cm
• Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm
• Size: 58, 60, 62 Bontrager Pro IsoCore VR-SF, 44cm
• Handlebar tape: Bontrager Supertack Perf tape
• Stem:
• Size: 50 Bontrager RCS Pro, -7 degree, 80mm length
• Size: 52, 54 Bontrager RCS Pro, -7 degree, 90mm length
• Size: 56, 58 Bontrager RCS Pro, -7 degree, 100mm length
• Size: 60, 62 Bontrager RCS Pro, -7 degree, 110mm length

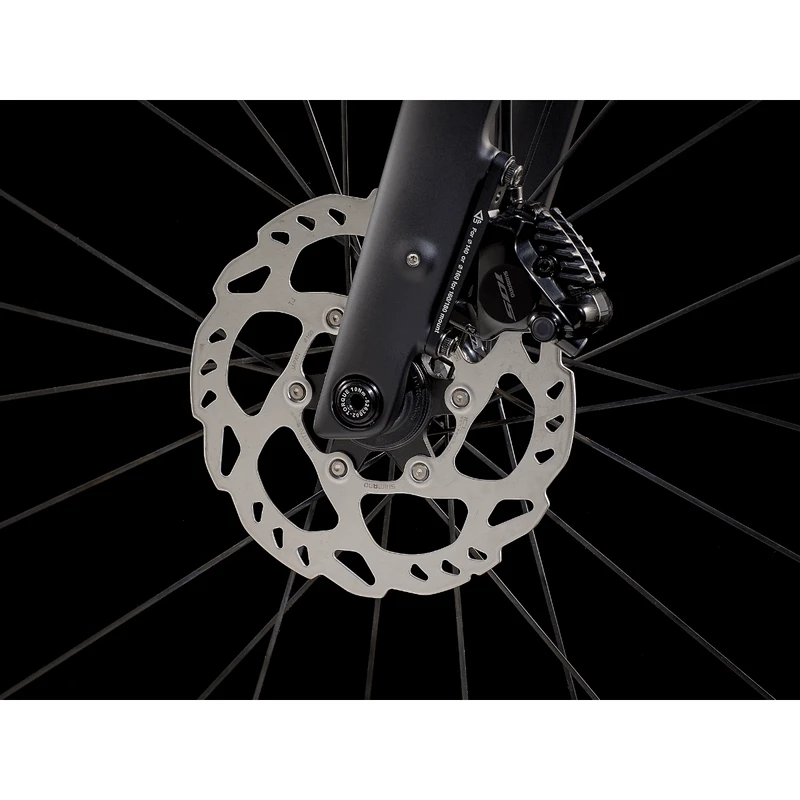

• Brake rotor: Shimano RT70, centerlock, 160mm
• Rotor size: Max brake rotor sizes: 180mm front, 160mm rear

Accessories

• Battery:
• Size: 50, 52, 54, 56, 58, 60, 62 TQ 360Wh
• Size: 50, 52, 54, 56, 58, 60, 62 Shimano BT-DN300
• Charger: Charging cable included
• Motor: TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
• Computer: TQ LED display with Bluetooth & ANT+ connectivity
• Electronics: TQ 4A charger

Weight

• Weight: 56 – 12.40 kg / 27.34 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
