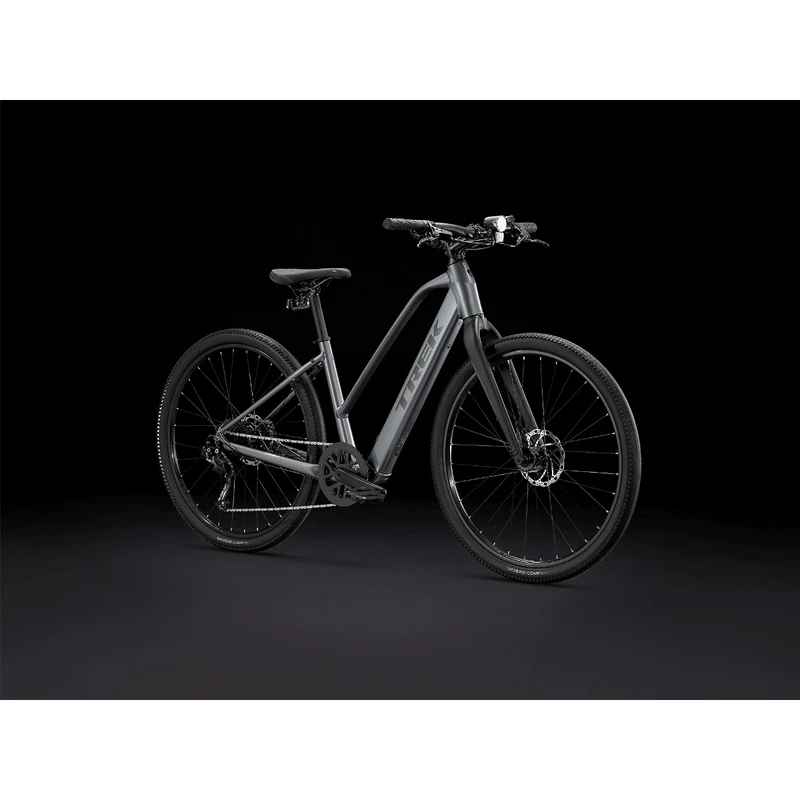

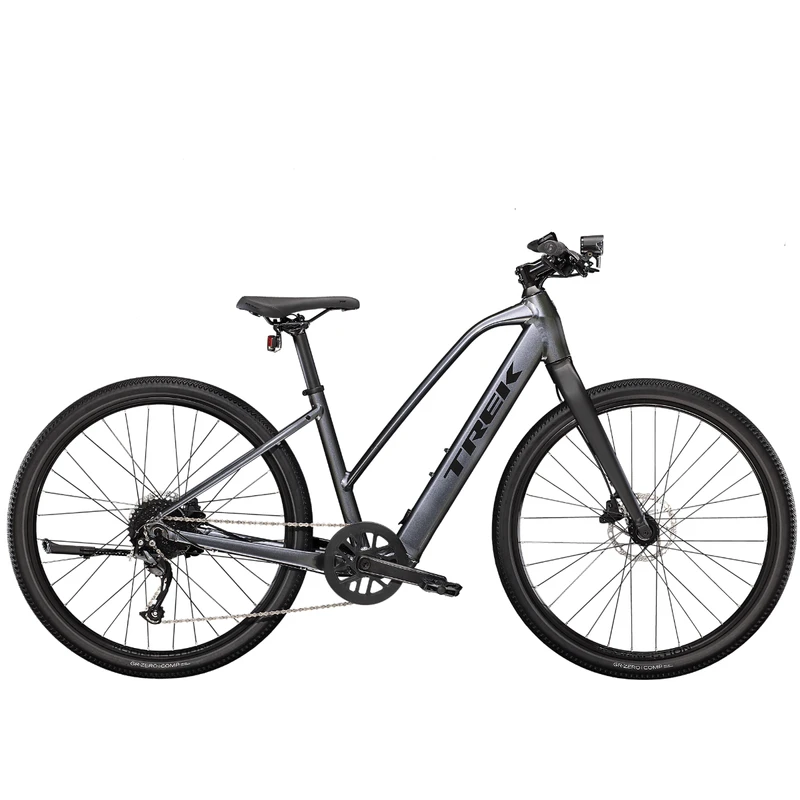

Trek Dual Sport+ 2 Stagger E-Bike – 2023

TREK DUAL SPORT+ 2 STAGGER E-BIKE – 2023

Dual Sport+ 2 Stagger is a lightweight and capable hybrid electric bike that’s designed for adventure on pavement and light trails. It has an intuitive and natural feeling pedal assist system that makes exploring your surroundings more fun and cruising up hills a breeze. Plus, stiff wheels and wide tires give you confidence on varied terrain.

It’s right for you if…
You want a lightweight, simple to use hybrid e-bike that brings a capable boost to daily errands and rides as well as weekend adventures.

The tech you get
A lightweight aluminum frame with a stagger design that’s easier to hop on and off, Trek’s proprietary pedal assist system with a hub motor (250W, 40Nm) that assists up to 20mph and a 250Wh battery for a range of up to 35 miles per charge. Plus, stiff 650b wheels and wide 50c tires for capability and comfort on varied terrain, a reliable 9-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery, and a kickstand.

The final word
All the capability and confidence of Dual Sport, with an electric boost that helps you do more! Dual Sport+ lets you haul groceries uphill with ease and adventure farther than you thought possible.

FEATURES

• This is their lightest hybrid e-bike, making it easier to maneuver while parking and less of a pain to carry up stairs
• The pedal assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting
• Stiff wheels and wide tires give you the terrain-smoothing comfort and confidence of a suspension fork without the added weight
• It’s easy to accessorize with fenders and a rear rack to carry everything you need
• Double your range with a 250Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame
• A lightweight and powerful 40Nm rear hub drive offers confident handling and uninterrupted power.
• Their lightest hybrid e-bike ever, Dual Sport+ weighs in at around 40 pounds.

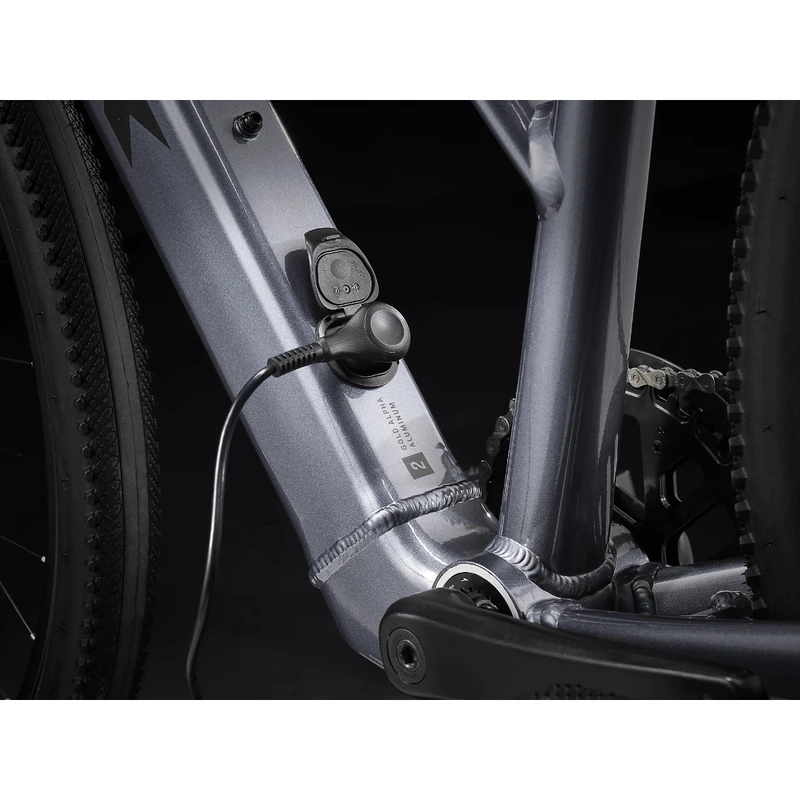

• A reliable 250Wh internal battery system assists up to 35 miles with an easily accessible charging port right on the downtube.
• double your distance and explore up to 70 miles with a supplementary 250Wh plug-and-play battery.
• Massive tire clearance accommodates 27.5″x2.2″ tires for better traction on multiple surfaces.

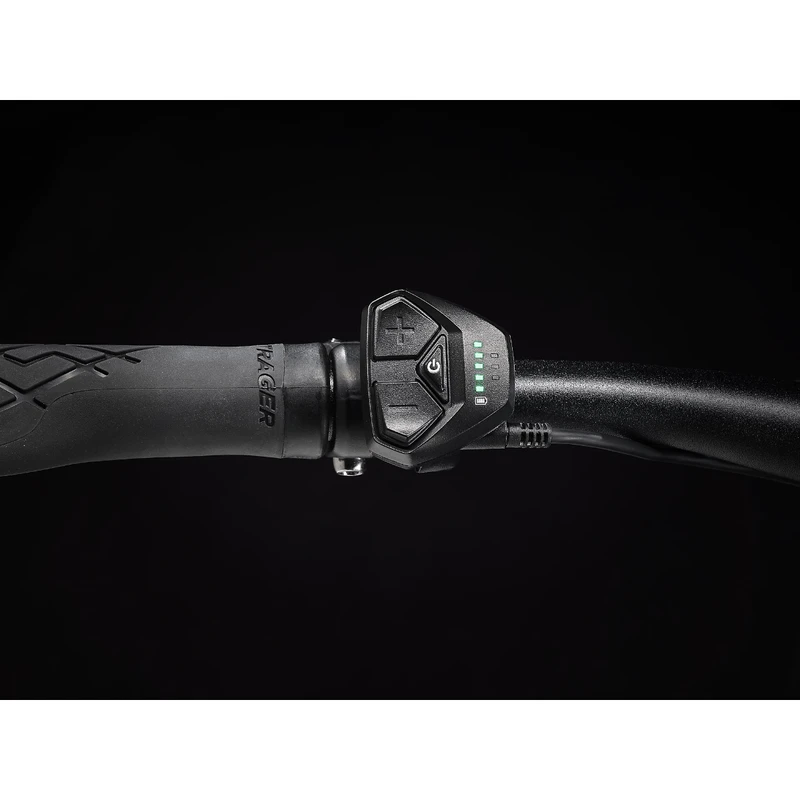

• A simple three-button layout and easy-to-read LED indicators put a faster ride right at your fingertips.

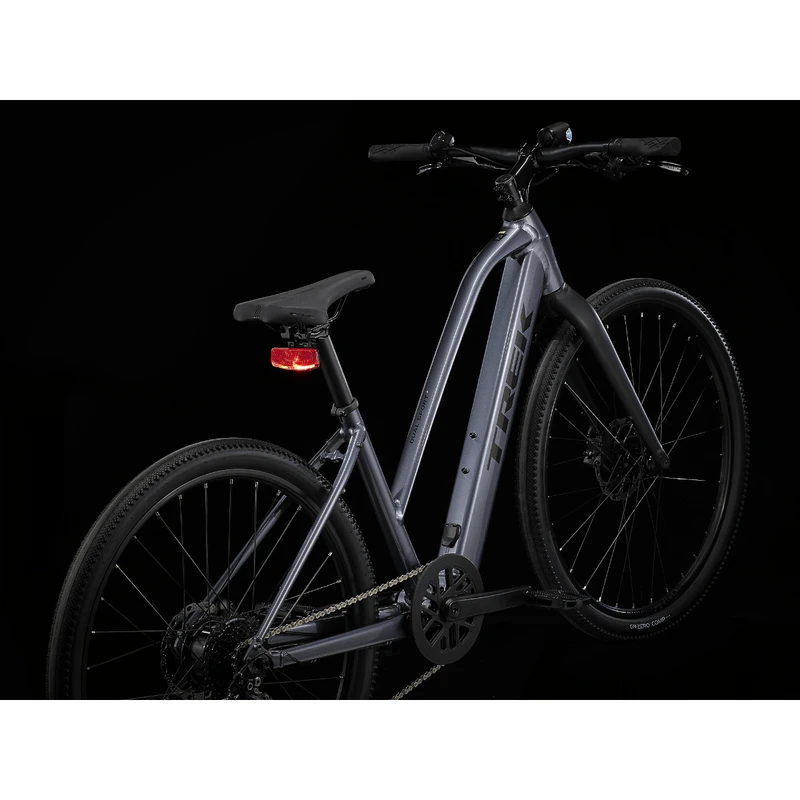

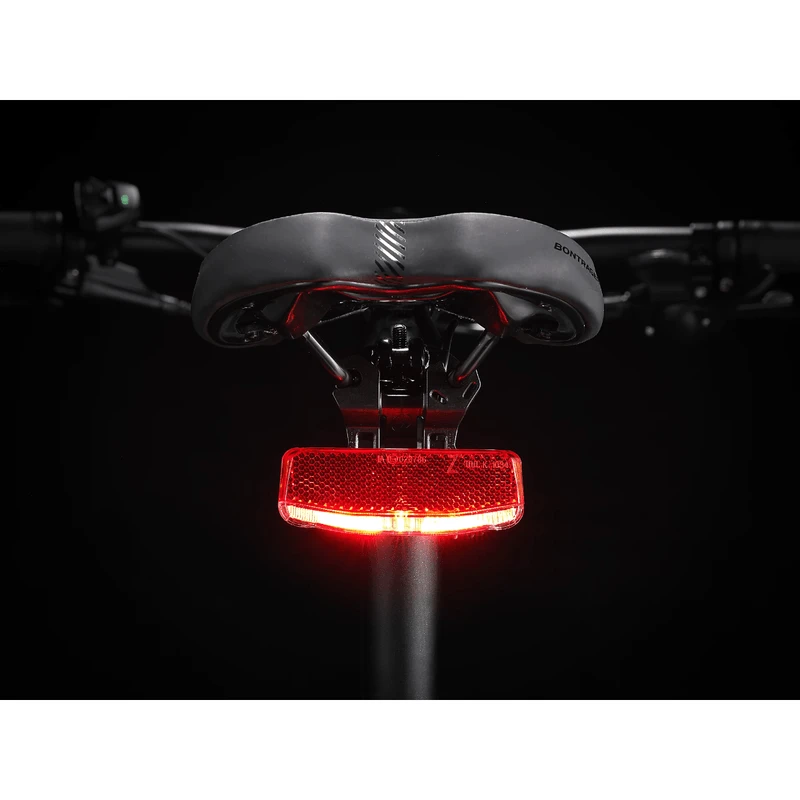

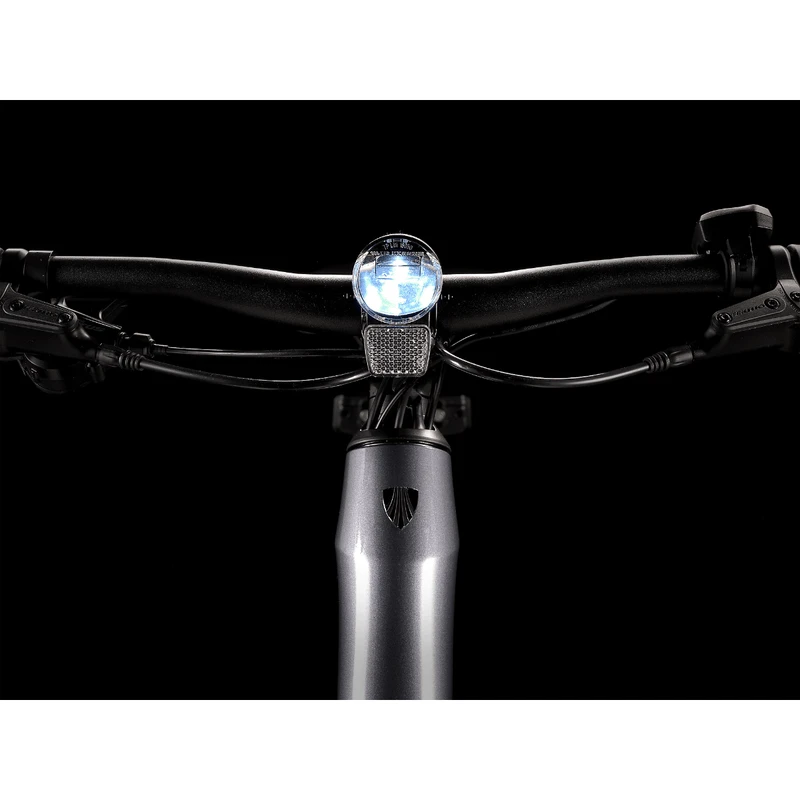

• See and be seen with integrated front and rear lights that turn on and off with your bike.
• Hydraulic disc brakes offer the absolute strongest stopping power in all conditions, including wet and muddy.
• Easy-on, easy-off step-through frame is perfect for anybody not interested in slinging a leg over the top tube.

TECH SPECS

• Frameset
• Frame: Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing

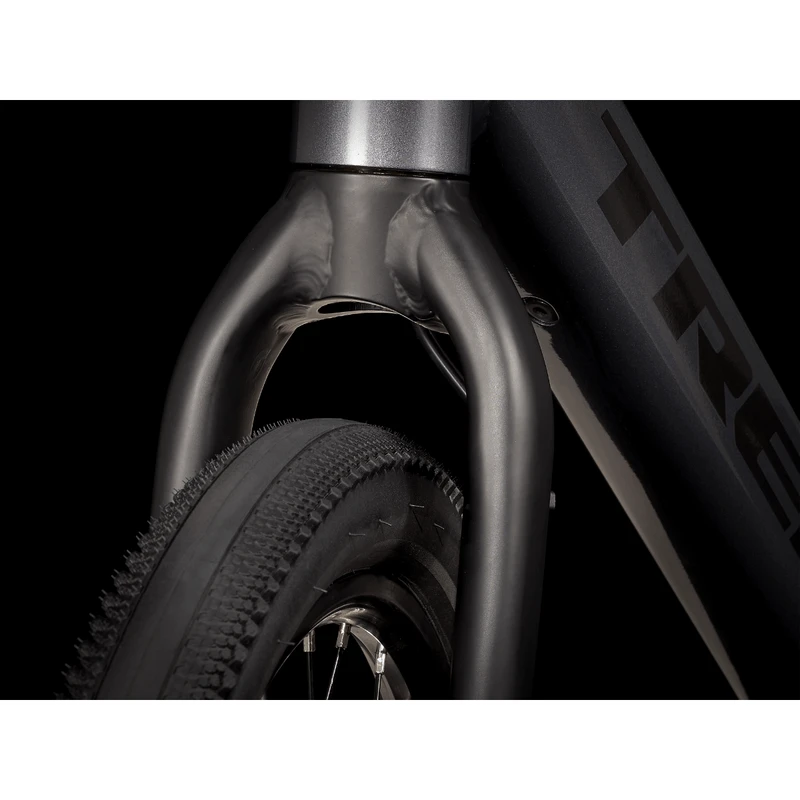

• Fork: DS+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
• Wheels
• Hub front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
• Hub rear: G2 hub drive
• Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, presta valve
• Spokes: 14g stainless steel
• Tire: Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50c
• Max tire size: 27.5×2.0″ with or without fenders
• Drivetrain
• Shifter: Shimano Altus M2010, 9 speed
• Rear derailleur: Shimano Altus M2000, long cage
• Crank Size: S, M – ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length; L – ProWheel Pro alloy, 42T narrow-wide steel ring, 175mm length
• Bottom bracket: Torque sensor, T47 threaded, 122.5mm spindle

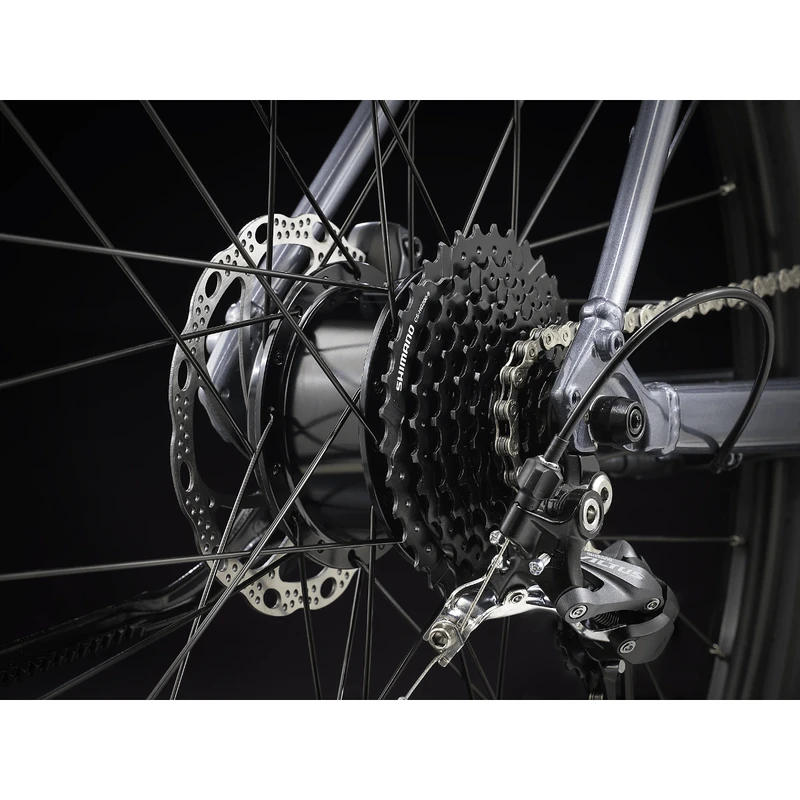

• Cassette: Shimano HG200, 11-36, 9 speed
• Chain: KMC X9
• Pedal: Bontrager City pedals
• Max chainring size: 42T
• Components
• Saddle: Bontrager Sport Women’s
• Seatpost: S, M – Bontrager alloy, 31.6mm, 12mm offset, 330mm length; L – Bontrager alloy, 31.6mm, 12mm offset, 400mm length

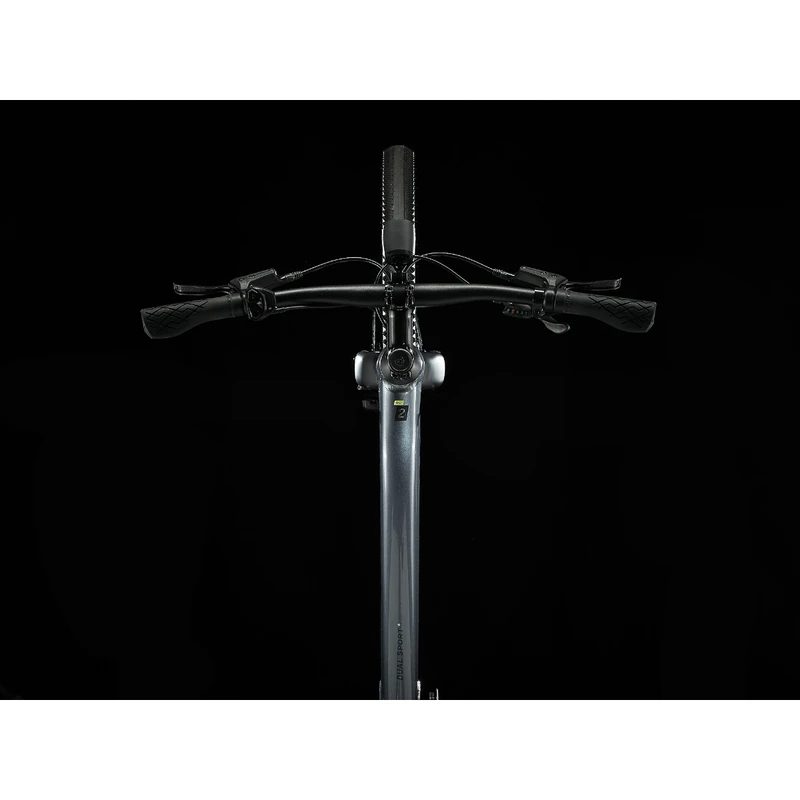

• Handlebar: S, M – Bontrager alloy, 31.8mm, 15mm rise, 660mm width; L – Bontrager alloy, 31.8mm, 15mm rise, 690mm width
• Grips: Bontrager XR Endurance Comp, lock-on
• Stem: S, M – Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length; L – Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 100mm length
• Brake: Shimano hydraulic disc, MT200 lever, UR300 caliper
• Brake rotor: Shimano RT26, 6-bolt,160mm
• Accessories
• Battery: 250Wh
• Charger: 2A, 42V output, 100V-240V AC input
• Controller: Bluetooth display
• Light: S, M, L – Herrmans MR4-E Frontlight, 40LUX, 120 lumen LED. 6-12 VDC. Without Bracket. With 50mm Power-in cable. Without Power-out cable. With Reflector (white); S, M, L – Spanninga Solo
• Kickstand: Rear mount, alloy
• Weight
• Weight: M – 17.28 kg / 38.1 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
