Trek Émonda SL 5 Bike

TREK ÉMONDA SL 5 BIKE

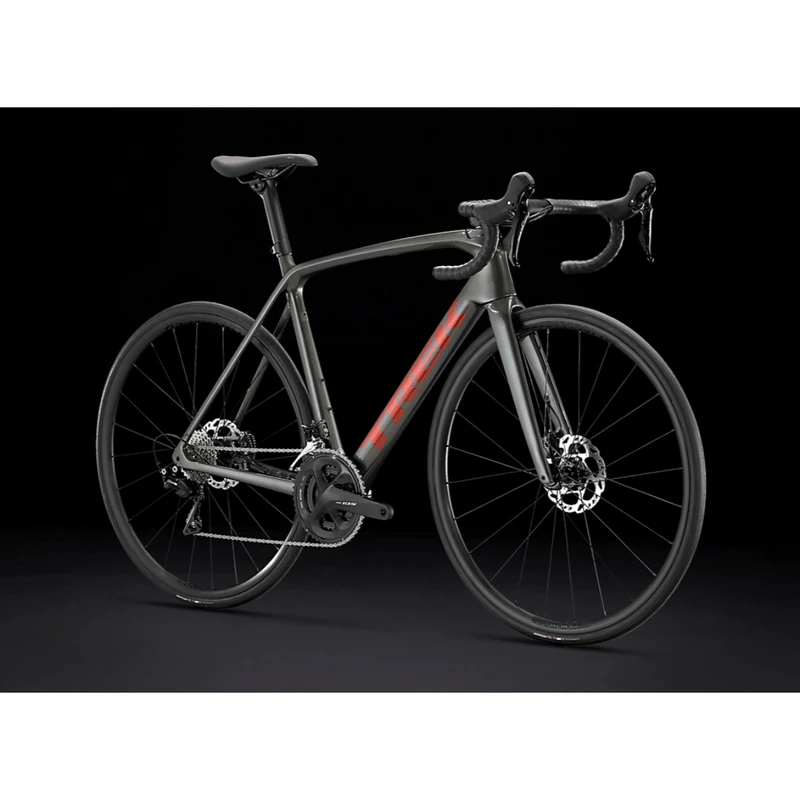

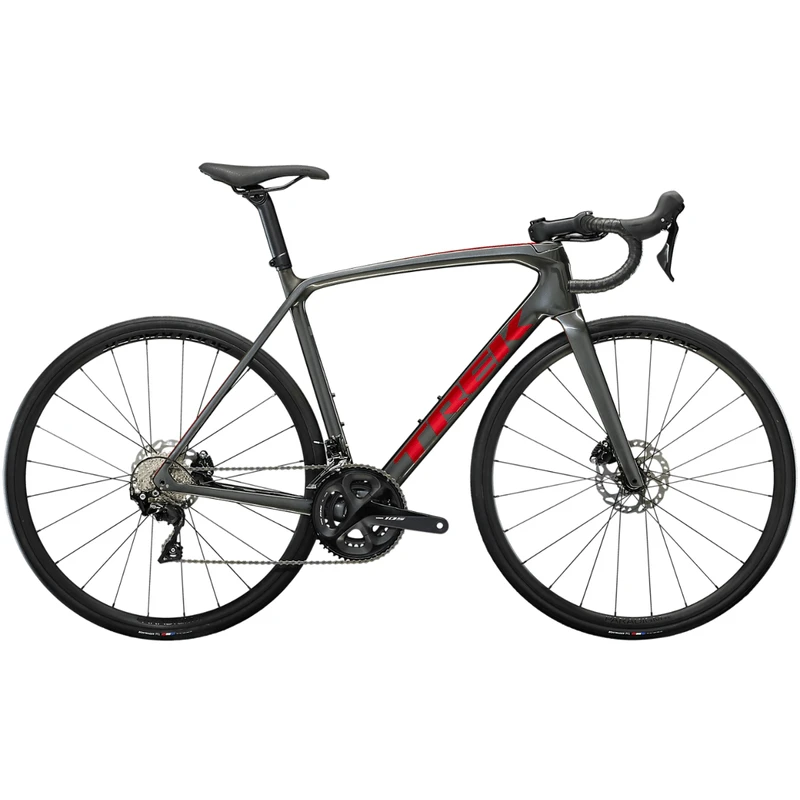

Émonda SL 5 Disc is a lightweight carbon road bike with a balanced ride quality, superior handling characteristics, and the added benefit of free speed thanks to aero tube shaping. It’s a great choice for century rides on hilly terrain, windy flats, and speedy descents.

FEATURES

• You get a lot for your dollar: Émonda SL 5 Disc is light, fast, fun to ride, and ready to race
• Aerodynamic tube shaping makes this Trek’s fastest Émonda SL platform ever—on flats and climbs alike
• It makes the perfect high-value upgrade from an aluminum road bike
• Hydraulic disc brakes give you stopping power and control in any weather, on any road

TECH SPECS

Frameset

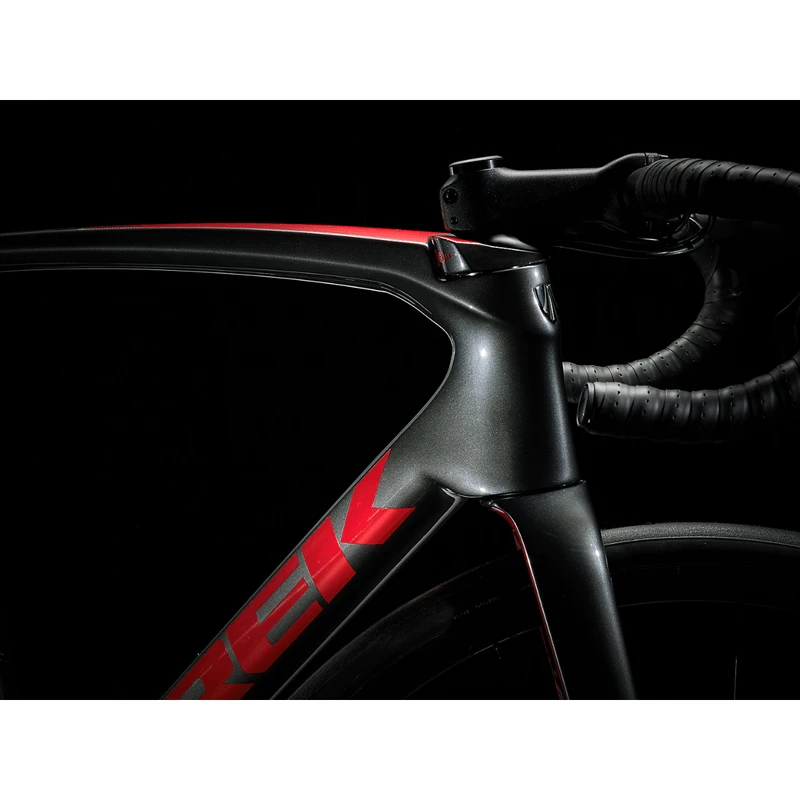

• Frame: Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
• Fork: Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
• Frame fit: H1.5 Race

Wheels

• Hub front: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
• Skewer front: Bontrager Switch thru axle, removable lever
• Hub rear: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, presta valve
• Tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28c
• Max tire size: 28c

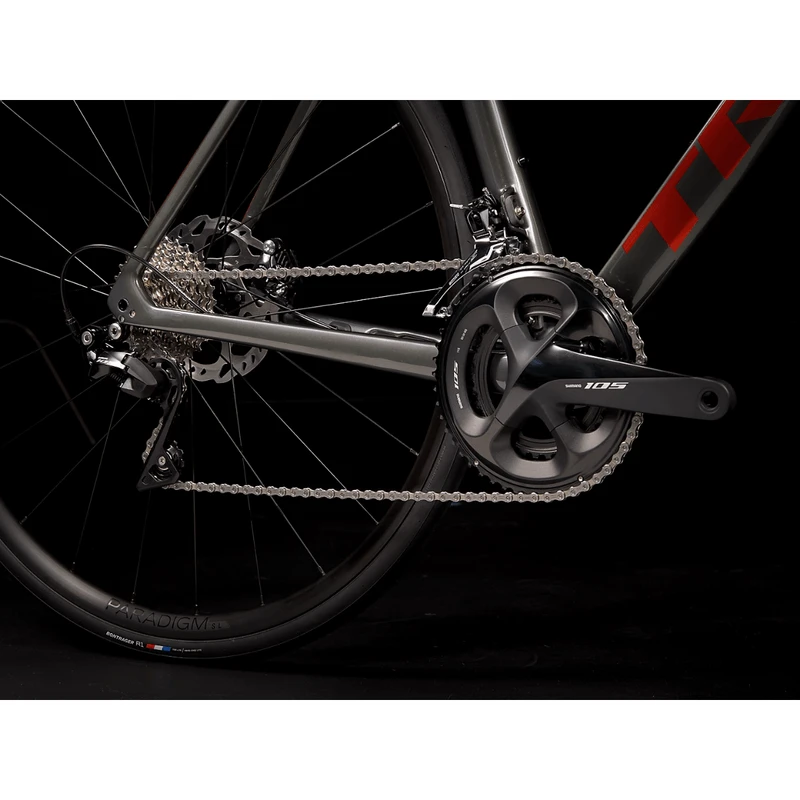

Drivetrain

• Shifter:
• Size: 47, 50, 52: Shimano 105 R7025, short-reach lever, 11 speed
• Size: 54, 56, 58, 60, 62: Shimano 105 R7020, 11 speed
• Front derailleur: Shimano 105 R7000, braze-on
• Rear derailleur: Shimano 105 R7000, short cage, 30T max cog
• Crank:
• Size: 47 Shimano 105 R7000, 50/34 (compact), 165mm length
• Size: 50, 52 Shimano 105 R7000, 50/34 (compact), 170mm length
• Size: 54, 56, 58 Shimano 105 R7000, 50/34 (compact), 172.5mm length
• Size: 60, 62 Shimano 105 R7000, 50/34 (compact), 175mm length
• Bottom bracket: Praxis, T47 threaded, internal bearing
• Cassette: Shimano 105 R7000, 11-30, 11 speed
• Chain: Shimano 105 HG601, 11 speed
• Max chainring size: 1x: 50T, 2x: 53/39

Components

• Saddle:
• Size: 47, 50, 52 Bontrager Verse Short Comp, steel rails, 155mm width
• Size: 54, 56, 58, 60, 62 Bontrager Verse Short Comp, steel rails, 145mm width
• Seatpost:
• Size: 47, 50, 52, 54 Bontrager alloy seatmast cap, 10mm offset, short length
• Size: 56, 58, 60, 62 Bontrager alloy seatmast cap, 10mm offset, tall length

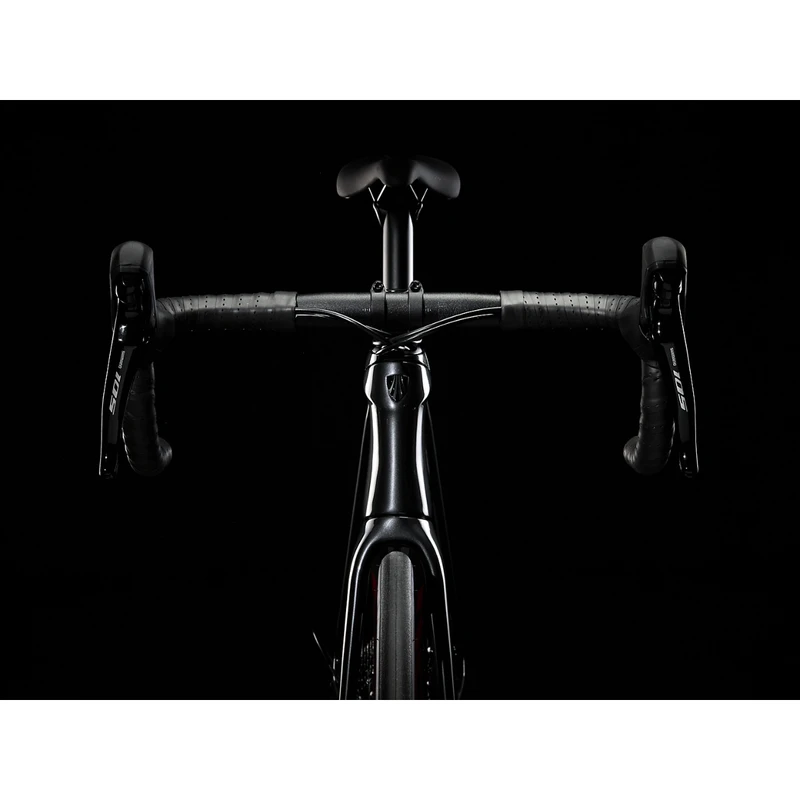

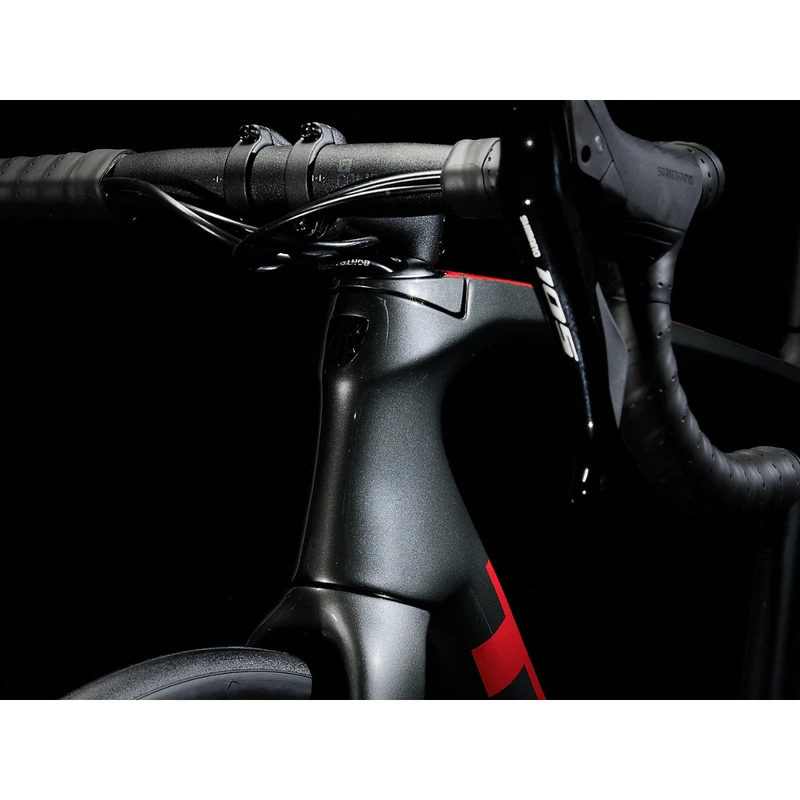

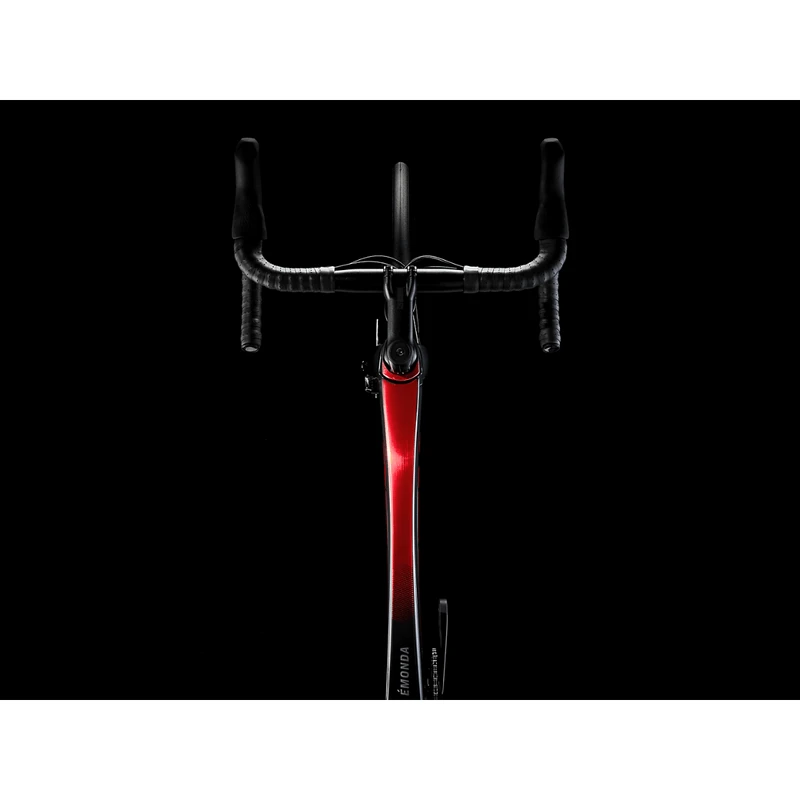

• Handlebar:
• Size: 47, 50 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 38cm width
• Size: 52 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width
• Size: 54, 56, 58 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
• Size: 60, 62 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
• Handlebar tape: Bontrager Supertack Perf tape

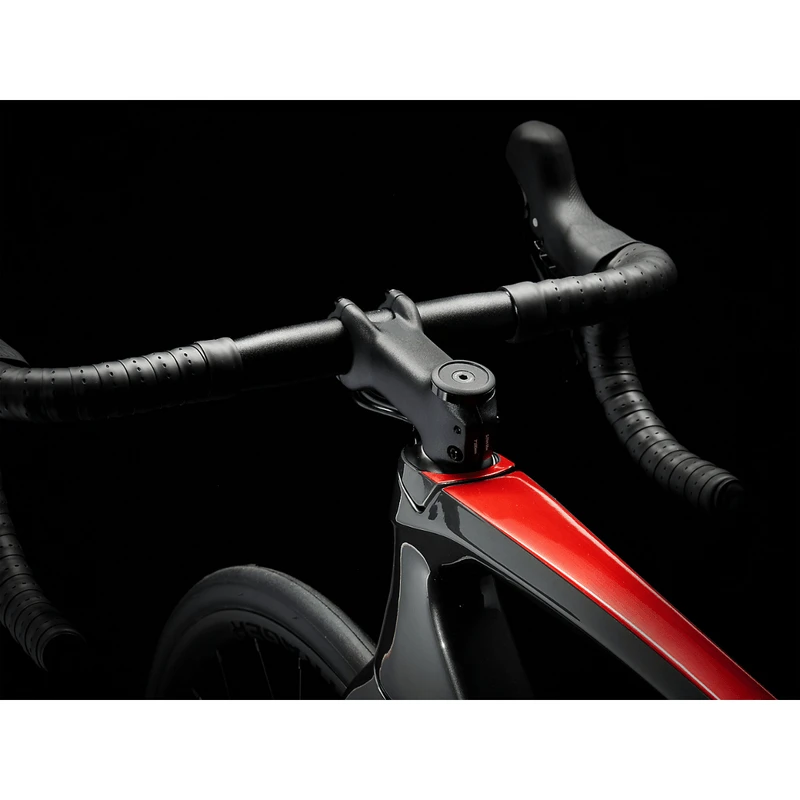

• Stem:

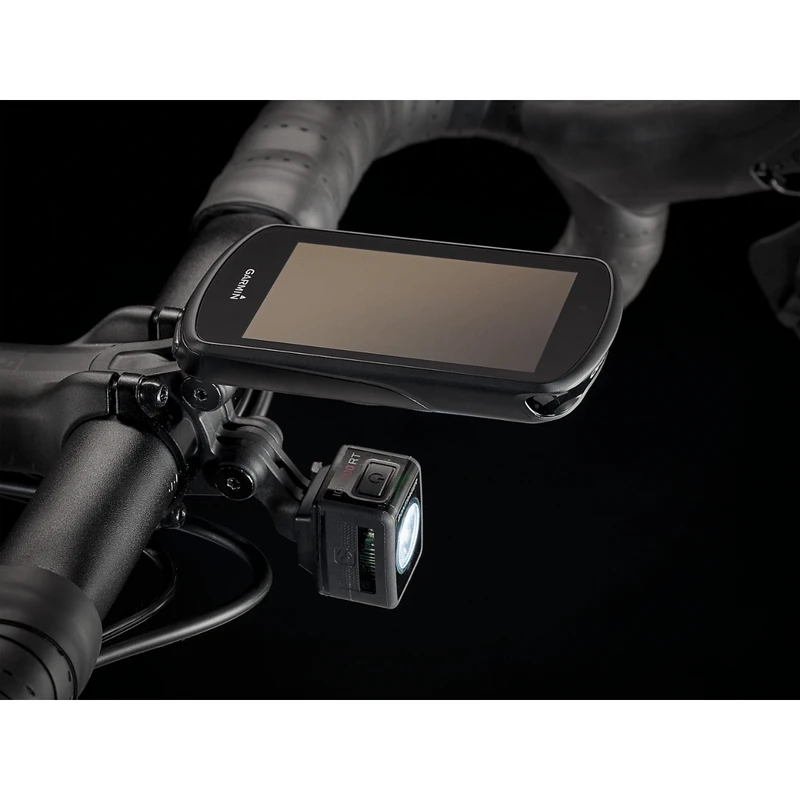

• Size: 47 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
• Size: 50 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
• Size: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
• Size: 56 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
• Size: 58, 60, 62 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

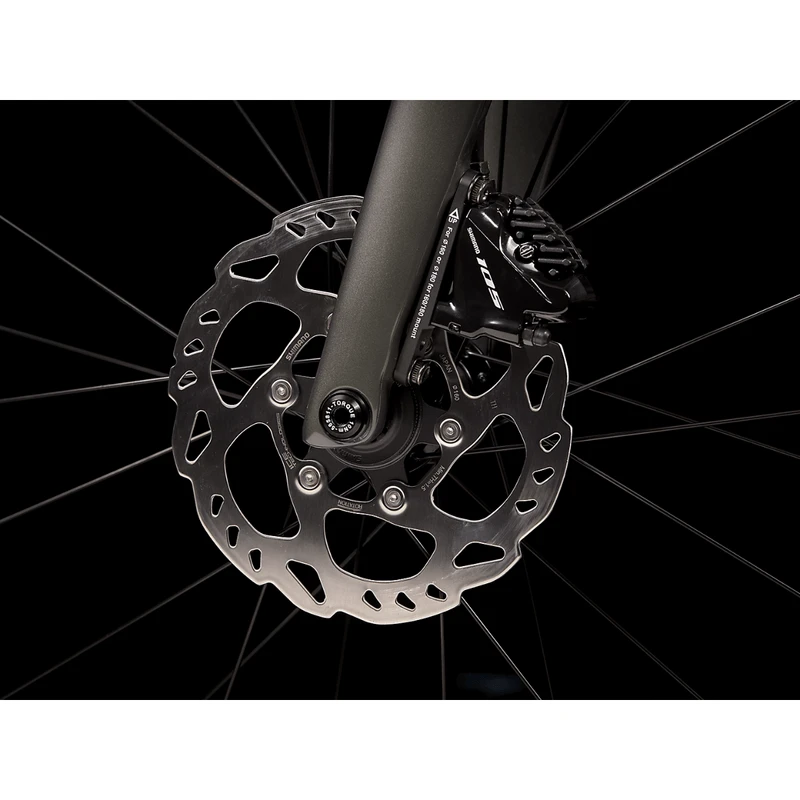

• Brake rotor: Shimano RT70, centerlock, 160mm
• Rotor size: Max brake rotor sizes: 160mm front & rear

Weight

• Weight: 56 – 8.87 kg / 19.55 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
