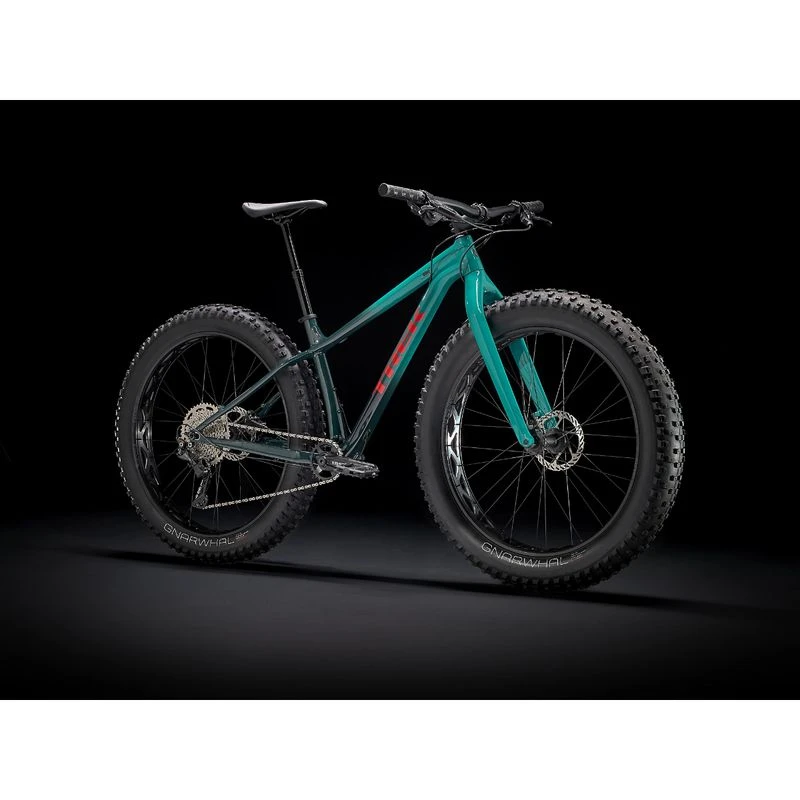

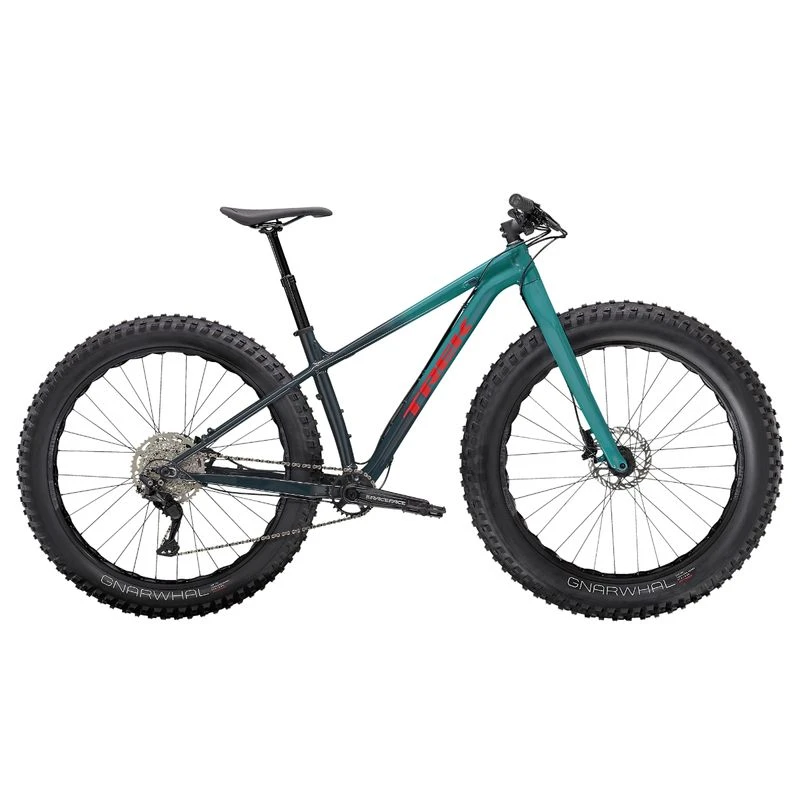

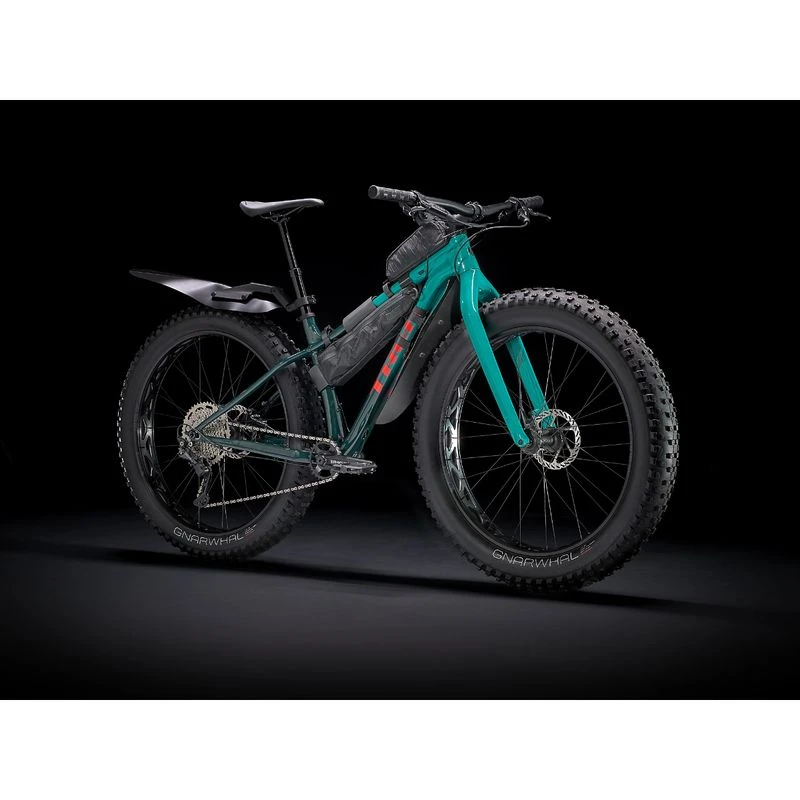

TREK FARLEY 5 BIKE – 2022
Farley 5 is Trek’s best value fat bike and your ticket to all-season freedom. It rolls over snow, sand, roots, and rocks with the stability and traction of a monster truck on wide, beefy tires. A 1x Shimano drivetrain and lightweight aluminum frame make it a great choice for anyone who wants to ride a mountain bike year-round, no matter the weather.
FEATURES
27.5? Fat Tires
- More efficient 27.5″ fat tires keep you rolling faster, especially on groomed or packed snow.
Rapid Drive 108 Rear Hub
- With 108 points of engagement, Rapid Drive gives you nearly instant acceleration instead of a clunky lag when you step on the pedals. You get smooth, immediate power to blast out of corners and hammer through the rough stuff. And that extra pedal ratchet adds control that can make all the difference when tackling a tricky climb.

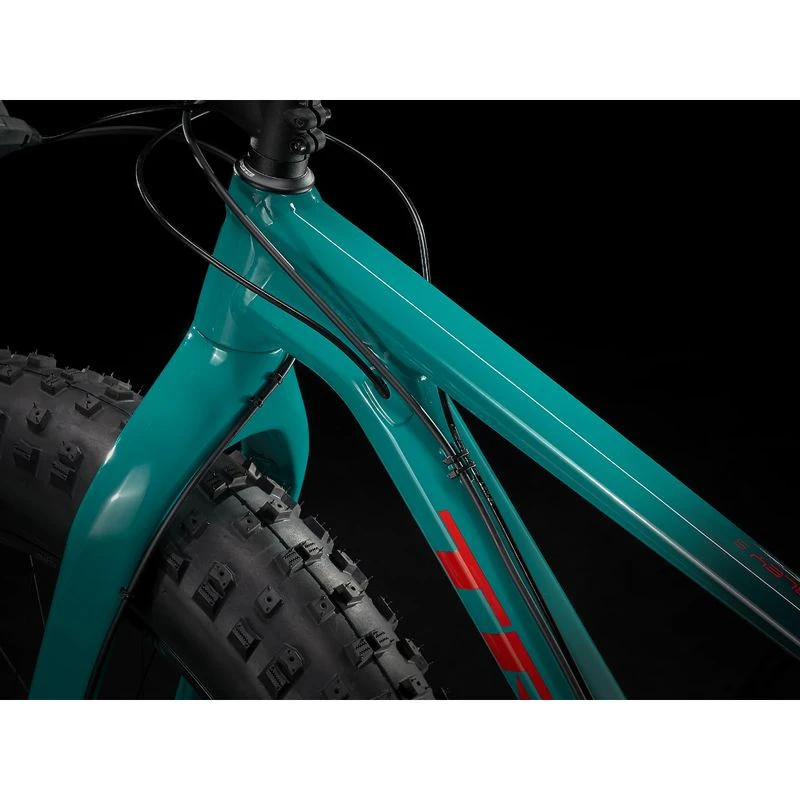

Internal Cable Routing
- We route shift and brake cables through the frame to keep things clean and simple. And it looks great, too.
Tubeless Ready Wheels & Tires
- Tubeless Ready rims and tires make it easy to ditch the tubes so you get better traction, fewer flats, and less weight. Just add TLR rim strips, valves, and sealant.
Alpha Platinum Aluminum
- Our premium lightweight aluminum is continuously cold extruded and butted at multiple points, and hydroformed into sophisticated tube shapes for maximum strength and maximum weight.

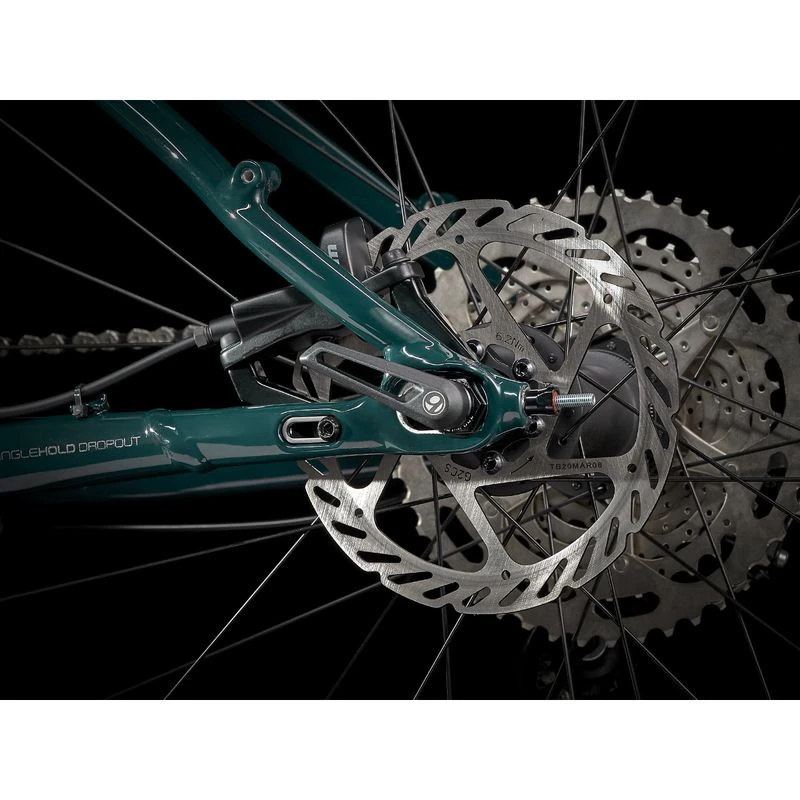

Horizontal Sliding Dropout
- Horizontal sliding dropout with redundant securing mechanisms allows for no-slip singlespeed or geared options and provides the ability to dial in the geometry to match each rider’s style.

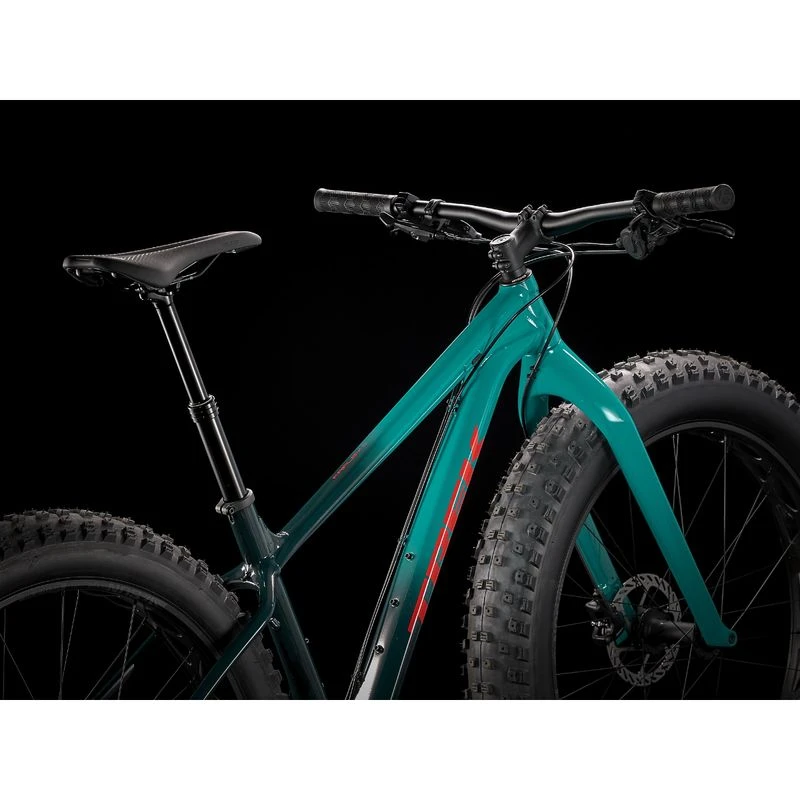

Dropper Post
- Use the remote lever to lower your saddle so it’s out of your way when you’re descending and cornering.
TECH SPECS
Frameset Specs
- Frame: Alpha Platinum Aluminum, tapered head tube, internal derailleur & dropper post routing, rack mounts, 197x12mm adjustable horizontal sliding dropouts

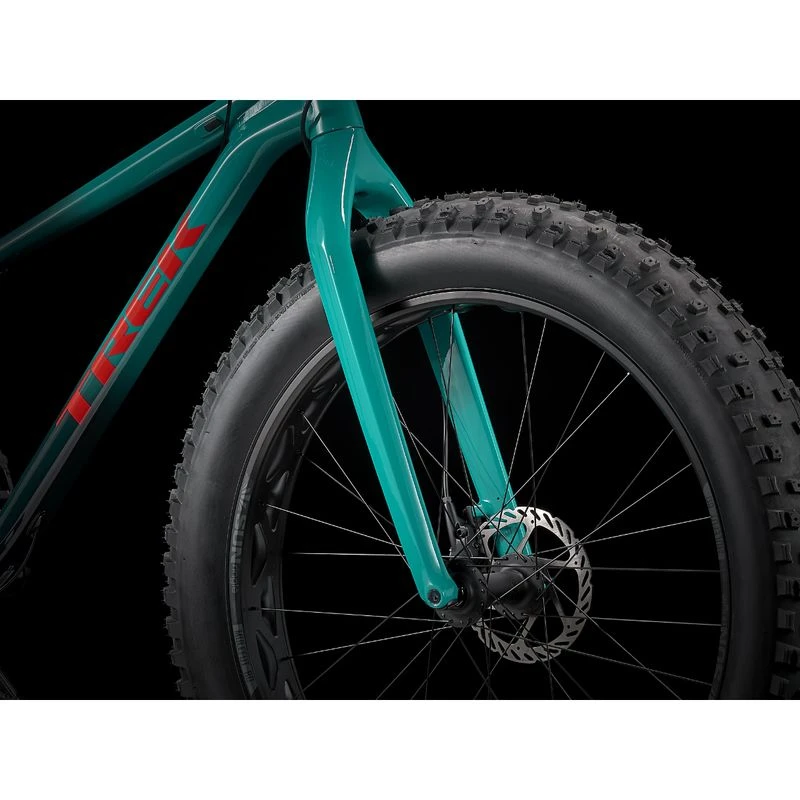

- Fork: Bontrager Haru, tapered alloy steerer, OCLV Carbon lowers, 490mm axle-to-crown, 15x150mm thru axle
- Max compatible fork travel: 100mm (513mm axle-to-crown)
Wheel Specs
- Hub front: Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle
- Skewer front: Bontrager Switch thru axle, removable lever
- Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10 freehub, 197x12mm thru axle
- Skewer rear: Bontrager Switch thru axle, removable lever
- Rim: SUNRingle Mulefut 80 SL, 32-hole cutout
- Tire: Size: S, M, L, XL Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5×4.50”
- Size: S, M Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5×3.80”
- Max tire size: 27.5×4.50″ or 26×4.70″
Drivetrain Specs
- Shifter: Shimano Deore M4100, 10 speed
- Rear derailleur: Shimano Deore M5120, long cage

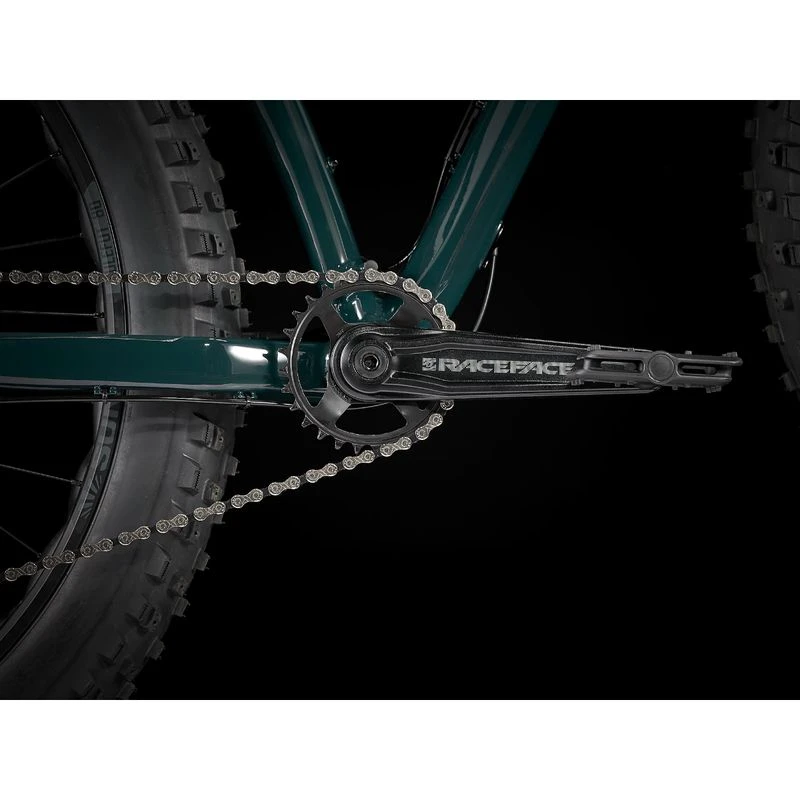

- Crank: Size: S Race Face Ride, 28T steel ring, 170mm length
- Size: M, L, XL Race Face Ride, 28T steel ring, 175mm length
- Bottom bracket: Race Face, 121mm, PressFit
- Cassette Shimano Deore M4100, 11-46, 10 speed
- Chain: KMC X10, 10 speed
- Pedal: VP-536 nylon platform
- Max chainring size: 1x: 32T, 2x: 22/36
Component Specs
- Saddle: Bontrager Arvada, steel rails, 138mm width
- Seatpost: Size: S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
- Size: M TranzX JD-YSP18, 120mm travel, internal routing, 31.6mm, 403mm length
- Size: L, XL TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length

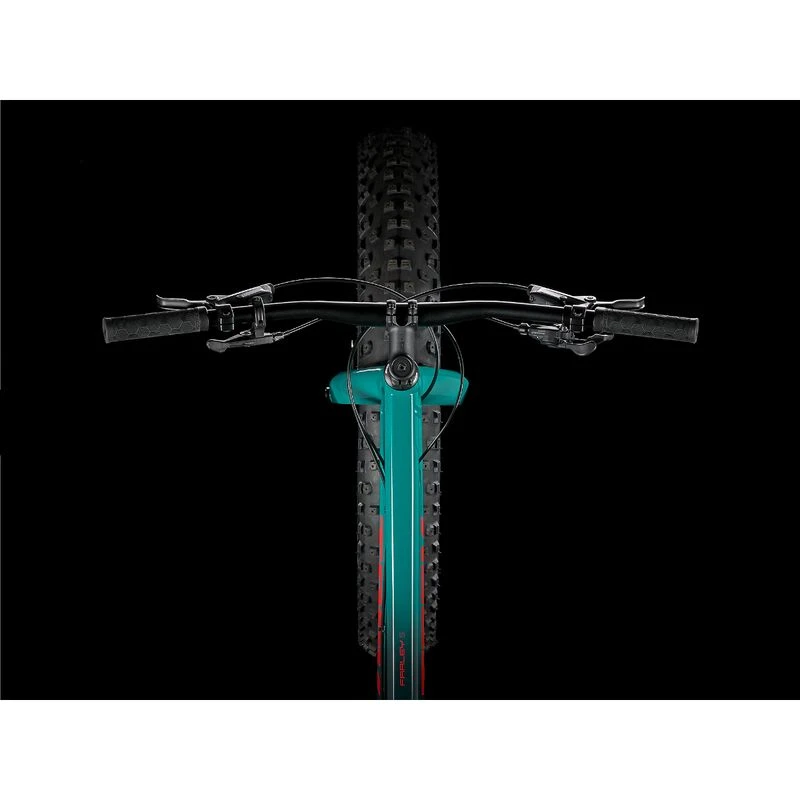

- Handlebar: Bontrager alloy, 31.8mm, 15mm rise, 750mm width
- Grips: Bontrager XR Trail Comp, nylon lock-on
- Stem: Size: S Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
- Size: M Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
- Size: L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
- Size: XL Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
- Headset: FSA IS-2, 1-1/8” top, 1.5” bottom
- Brake: SRAM Level hydraulic disc
- Brake rotor: Avid G2 CleanSweep, 6-bolt, 160mm
Weight Specs
- Weight: M – 14.66 kg / 32.33 lbs (with tubes)
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
