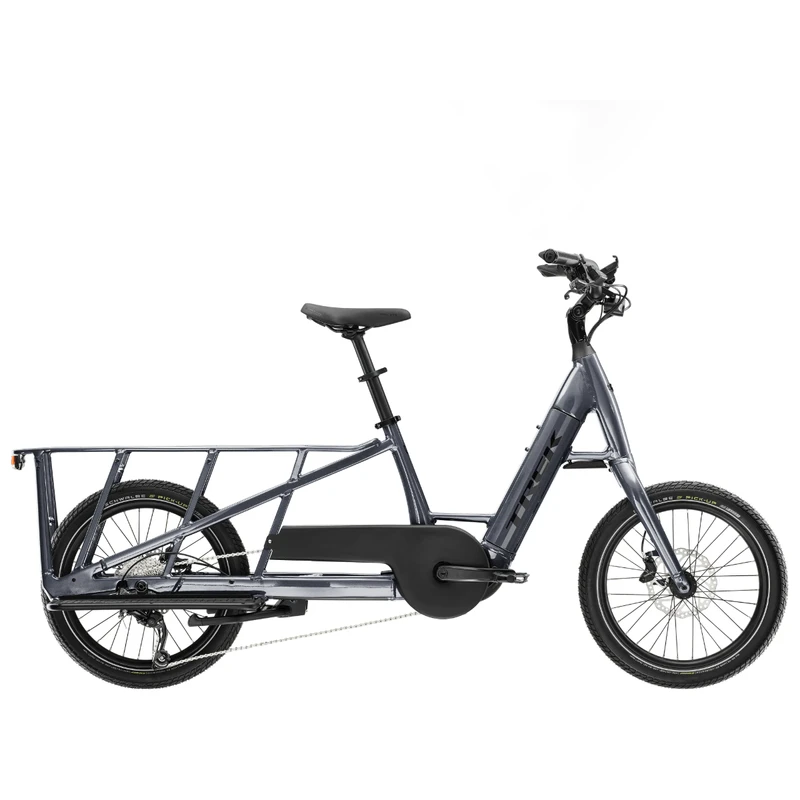

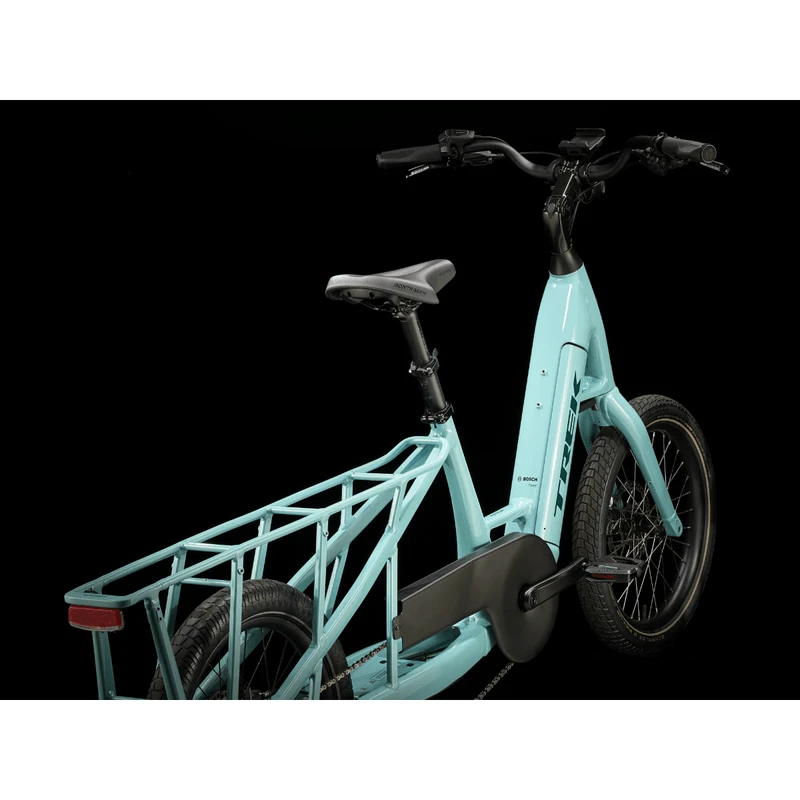

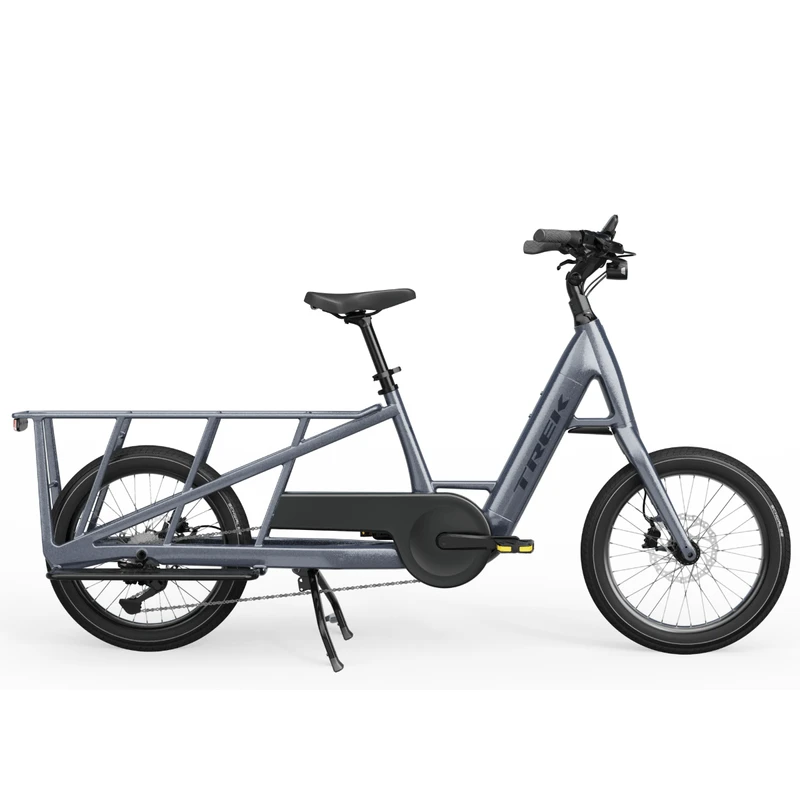

TREK FETCH+ 2 CARGO E-BIKE
Fetch+ 2 is a compact electric cargo bike that hauls a lot and is super fun and simple to use. You can easily carry up to 175lbs of cargo in the box, thanks to the powerful boost of the Bosch smart system and best-in-class handling and stability. This bike is designed to grow with your family, and offers multiple configuration options to best suit your needs as they shift and change over time.
FEATURES
- Fetch+ is remarkably compact given how much it can carry

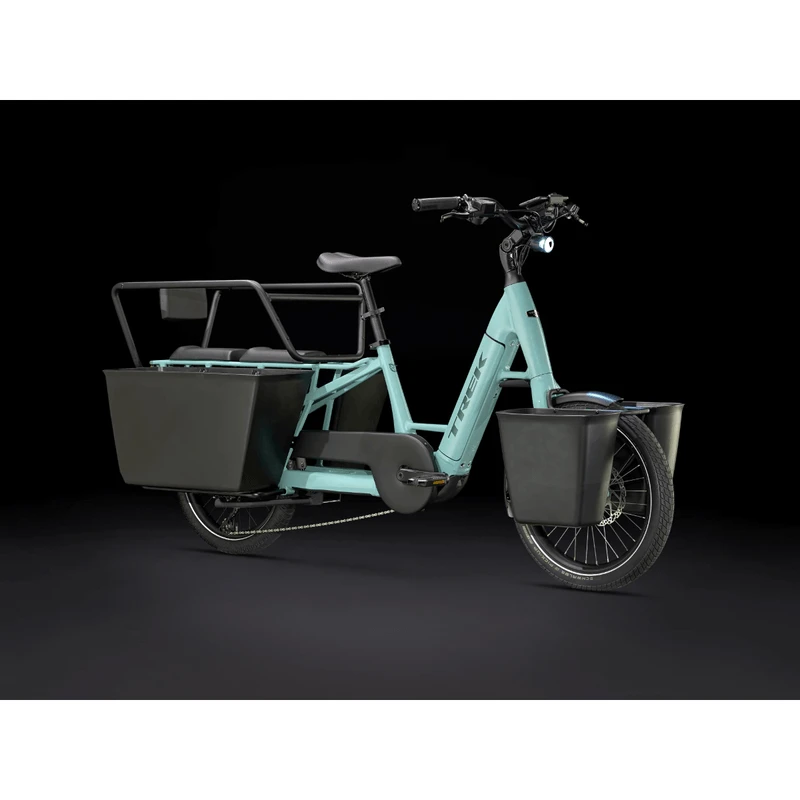

- Multiple seat and cargo variations can take you, your kiddos, and your pets anywhere you need to go with everything you need

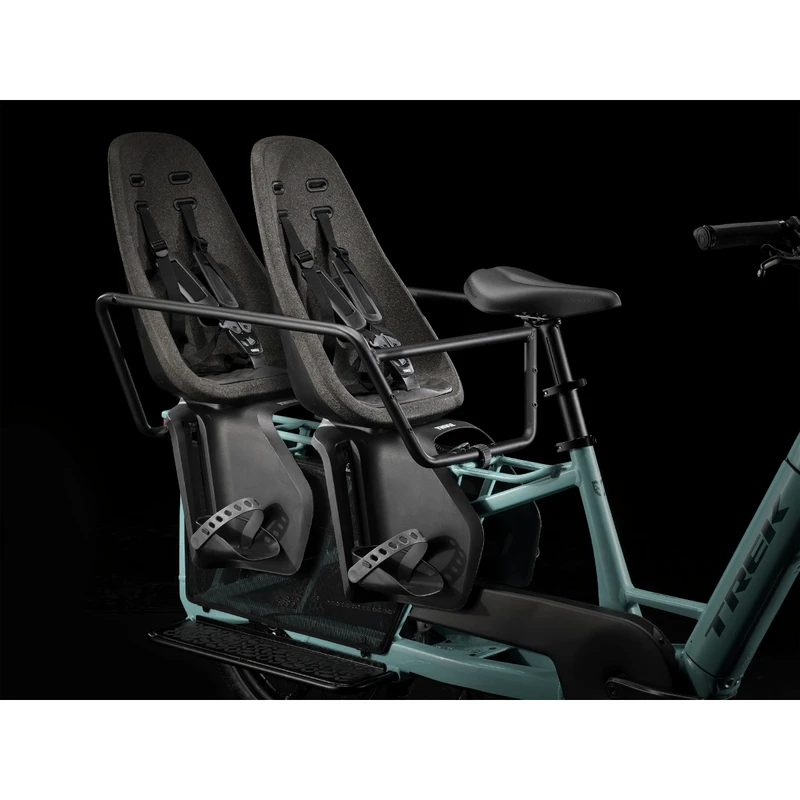

- Safely carry your little ones with a rear rack built for Thule Yepp Nexxt child seats
- Convenient smartphone holder
TECH SPECS
Frameset
- Frame: High-performance hydroformed alloy, low-step, Removable Integrated Battery, internal cable routing, Motor Armor, post-mount disc, 148×12 thru axle
- Fork: Fetch alloy, tapered steerer
Wheels
- Wheel front: Formula DC-71 sealed bearing, 6-bolt, 15x100mm thru axle hub, 32-hole, 30mm width rim
- Wheel rear: Formula EHL-148s sealed bearing, 6-bolt, 12x148mm thru axle hub, 32-hole, 30mm width rim
- Hub front: Formula DC-71 alloy, sealed bearing, 6-bolt, 15x100mm thru axle
- Skewer front: Bontrager Switch thru axle
- Hub rear: Formula EHL-148S, sealed bearing, 6-bolt, Shimano 10 freehub, 148x12mm thru axle
- Skewer rear: Bontrager Switch thru axle, removable lever
- Rim: Alloy double-walled, 32-hole
- Spokes: 13g stainless steel, black
- Tire: Schwalbe Pick-Up, Addix E-Compound, ECE-R75 approved, wire bead, 20×2.35”
Drivetrain
- Shifter: Shimano Deore M4100, 10 speed
- Rear derailleur: Shimano Deore M6000, long cage, Shadow Plus
- Crank: ProWheel alloy, 165mm length
- Chainring: ProWheel, 46T narrow/wide, alloy
- Cassette: Shimano HG50, 11-36, 10 speed
- Chain: KMC E10S
- Pedal: Bontrager City pedals
Components
- Saddle: Bontrager Boulevard
- Seatpost: Bontrager alloy, telescoping, 34.9mm

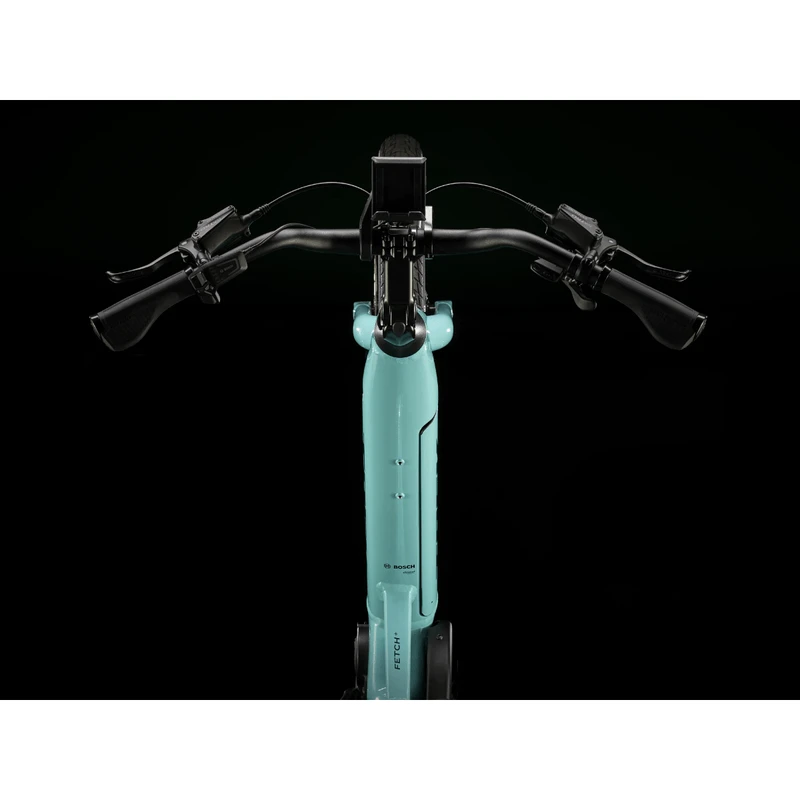

- Handlebar: Electra Vale Go
- Grips: Bontrager Satellite Elite, alloy lock-on
- Stem: Alloy adjustable stem, 110mm length
- Headset: Trek Fetch+ headset kit

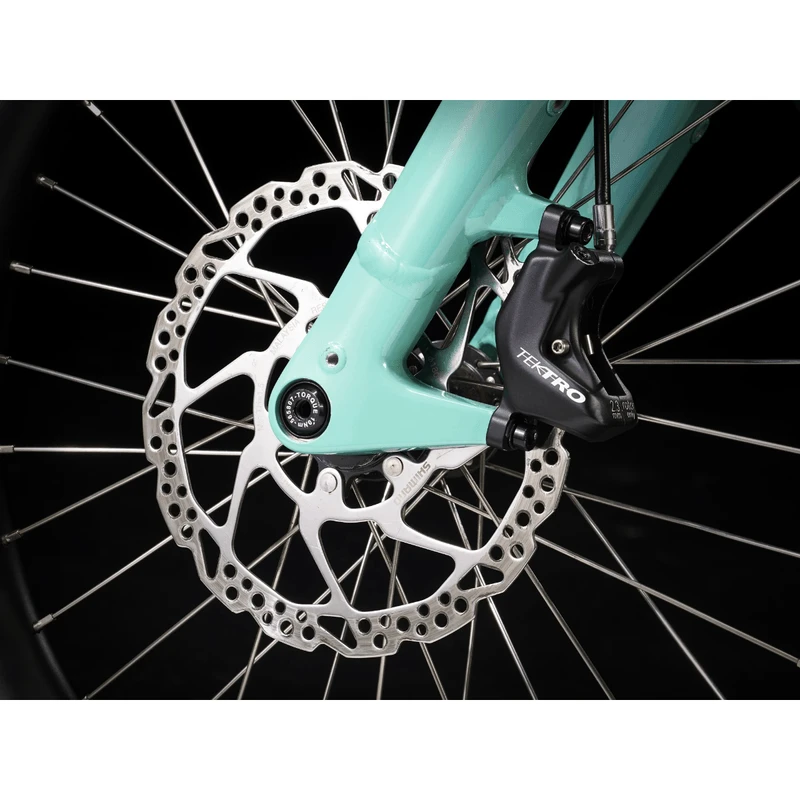

- Brake: HD-T737 4-piston hydraulic disc
- Brake rotor: Tektro wave, 6-bolt, 180mm
Accessories

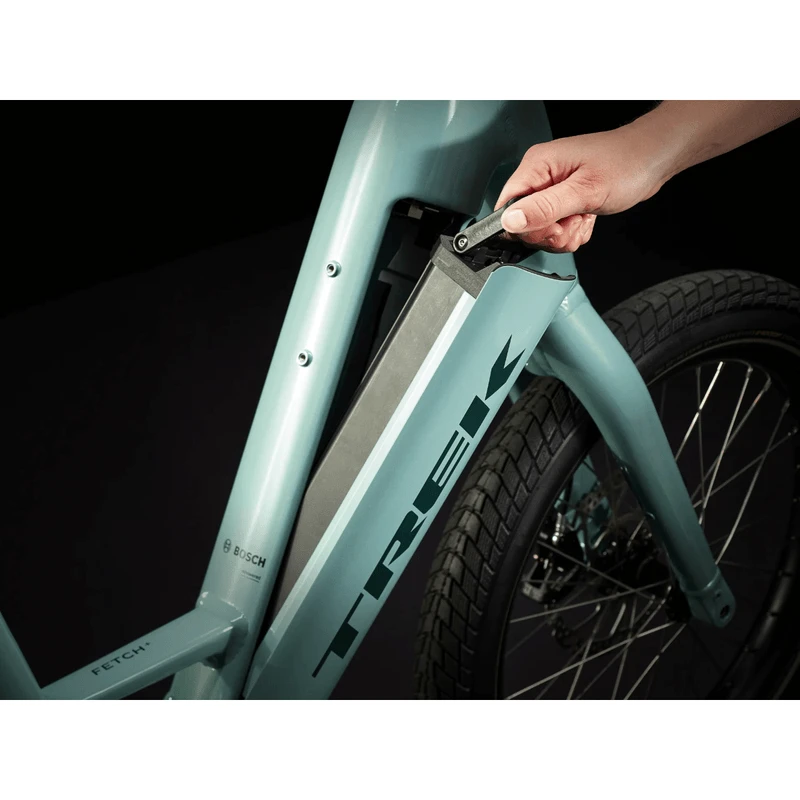

- Battery: Bosch PowerTube 500Wh, smart system
- Charger: Bosch standard 4A, 110V, smart system
- Controller: Bosch BSP3200 smart phone grip

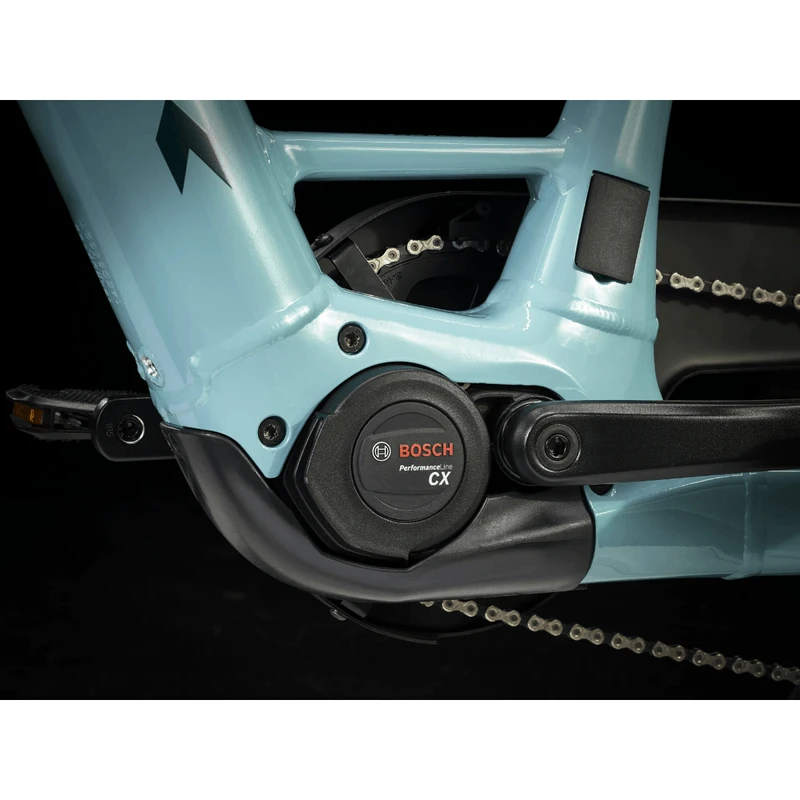

- Motor: Bosch Performance Line Cargo, smart system, magnesium motor body, 85 Nm
- *Light

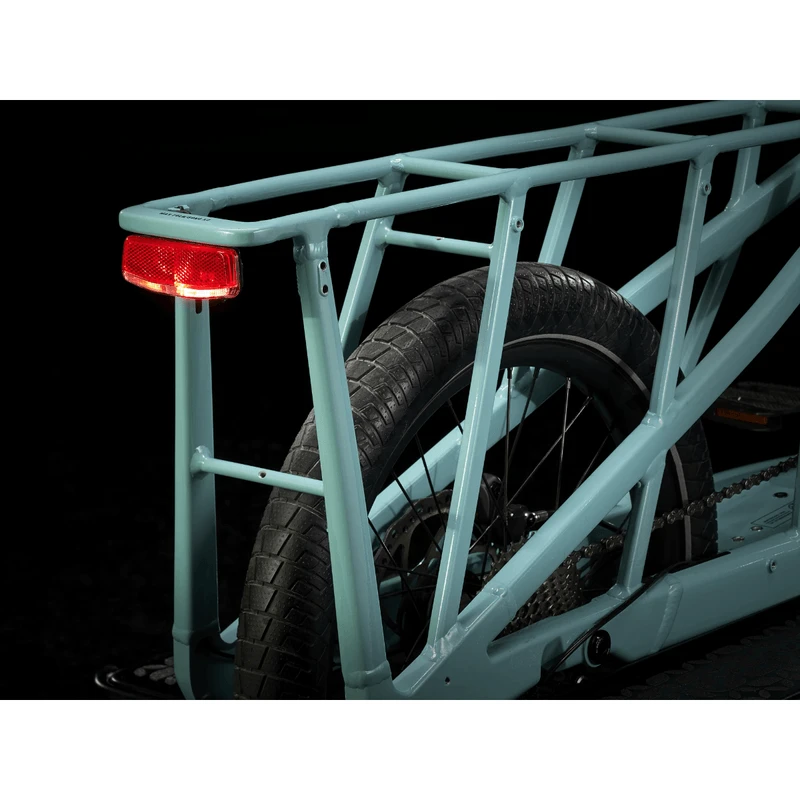

- Size: L; Spanninga Solo, taillight

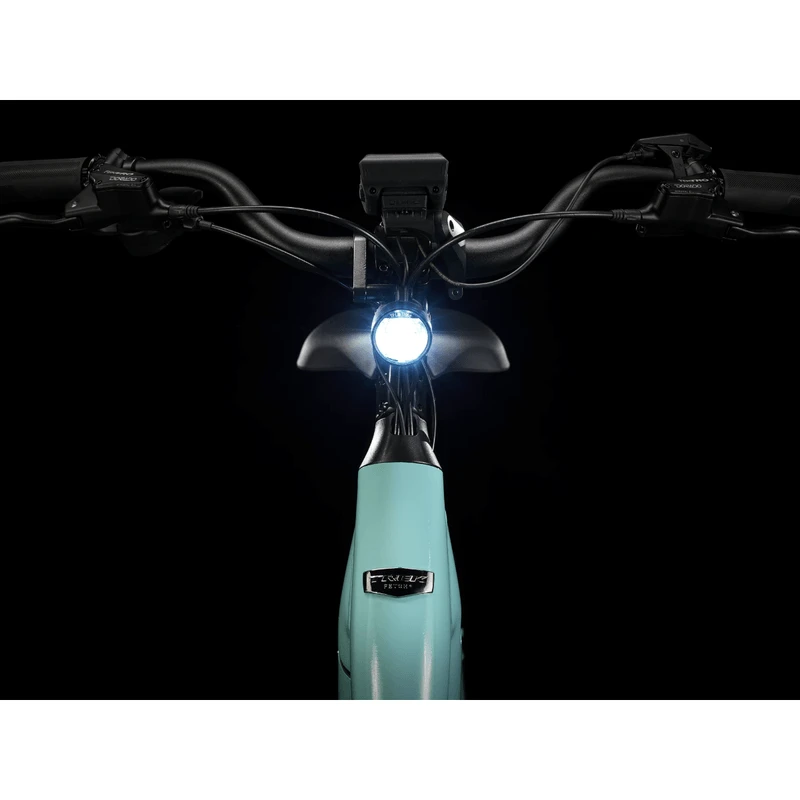

- Size: L; Herrmans H-Black MR8, 180lumen, 60lux, LED

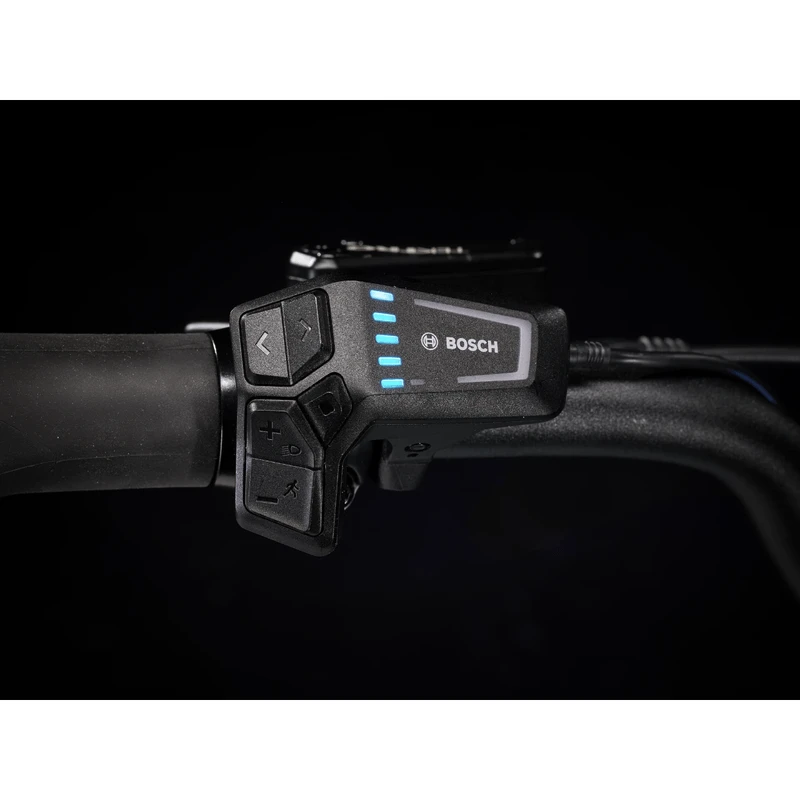

- Computer: Bosch LED remote, smart system
- Kickstand: Fetch custom
Weight
- Weight: 31.00 kg / 68.35 lbs
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 441 pounds (200 kg)
| Sizing Table | |
|---|---|
| A — Seat tube | 40.5 |
| B — Seat tube angle | 69.7° |
| C — Head tube length | 26.6 |
| D — Head angle | 69.6° |
| E — Effective top tube | 55.2 |
| F — Bottom bracket height | 29.1 |
| G — Bottom bracket drop | 3.1 |
| H — Chainstay length | 75.1 |
| I — Offset | 4.0 |
| J — Trail | 5.4 |
| K — Wheelbase | 136.5 |
| L — Standover | 43.8 |
| M — Frame reach | 33.6 |
| N — Frame stack | 65.4 |
