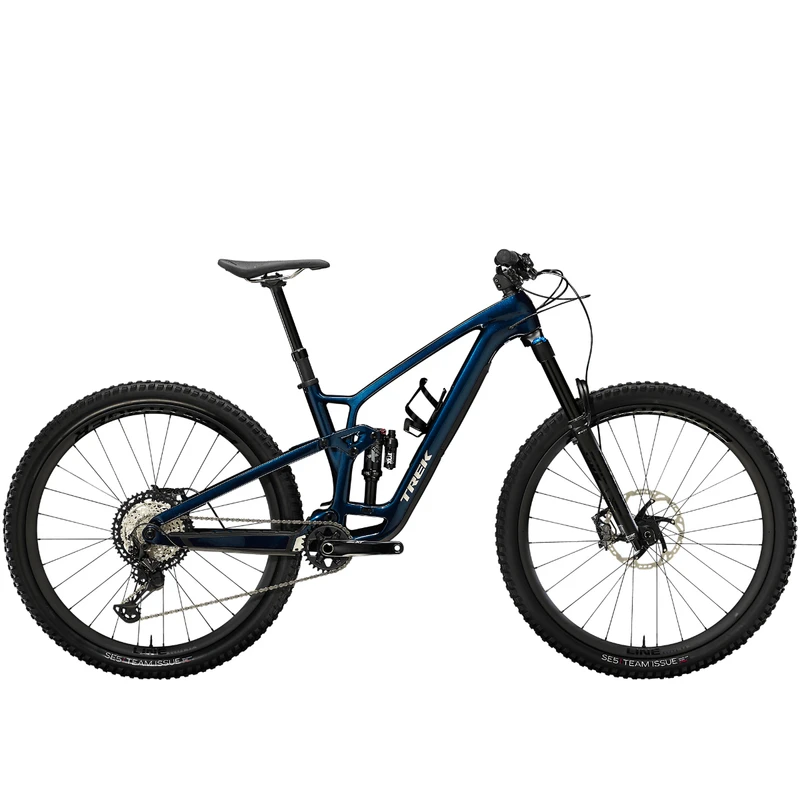

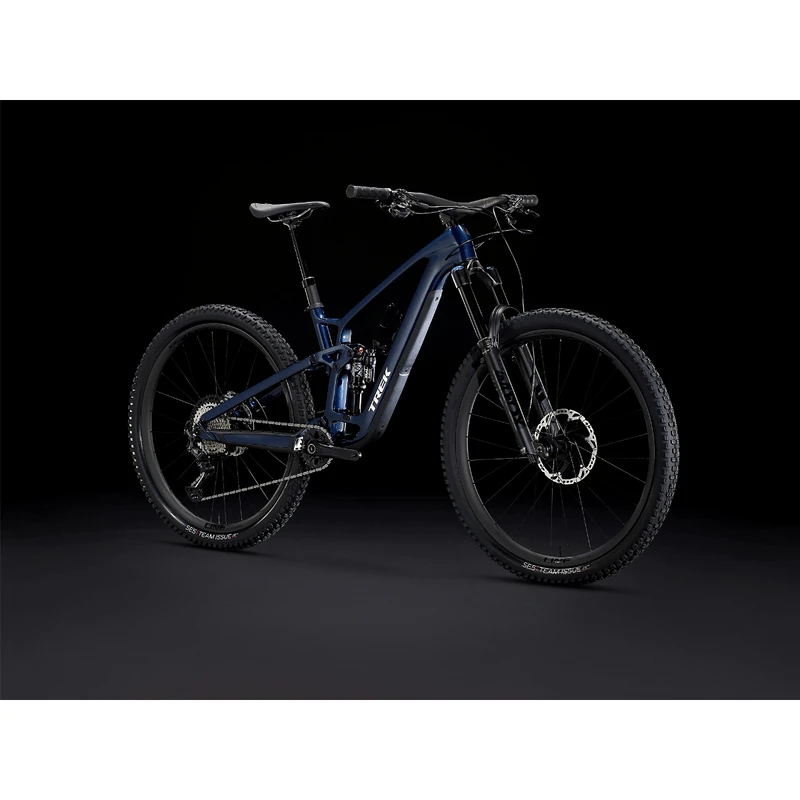

Trek Fuel EX 9.8 XT Gen 6 Trail Bike – 2023
Original price was: $347.00.$97.99Current price is: $97.99.
- Effortless Shopping, Quality Products
- 100% Quality Promise
- The best quality products, always.
- Fast reliable delivery options
TREK FUEL EX 9.8 XT GEN 6 TRAIL BIKE – 2023
Fuel EX 9.8 XT is an all-around trail bike that blends the light, smooth ride of a carbon frame with upgraded parts made for hard rides. Decked out with 150mm of front and 140mm rear FOX Performance suspension, you’ll be ready to float through the chunder, while carbon wheels keep you tracking through rowdy terrain. A Shimano XT drivetrain tops things off for precise shifting for power on descents and relief on long climbs.
FEATURES
It’s right for you if
- You’re chasing long flowy and technical descents, and want to pedal back to the top for more, lap after lap
- You want the vibration damping benefits of a carbon frame and carbon wheels, plus upgraded suspension that smooths out the rough and rowdy
The tech you get
- A light and stiff carbon frame with a full FOX Performance suspension package that smooths out rowdy rock gardens and root latices.
- Carbon wheels that keep your setup light
- A Shimano XT drivetrain for smooth shifting and brake modulation

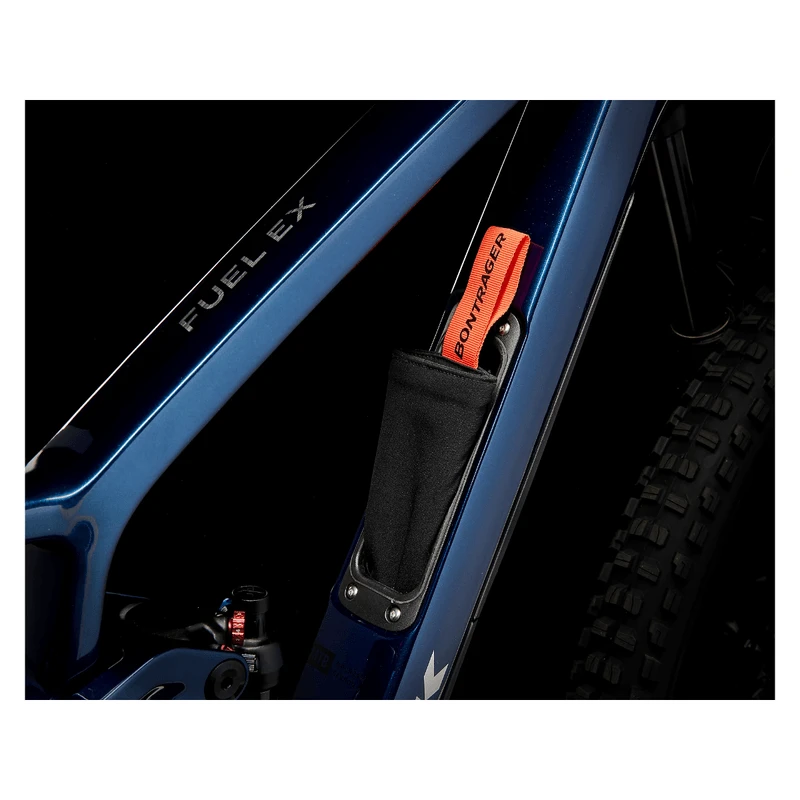

- Adjustable geometry and in-frame storage for keeping your setup dialed just for you
The final word
- Fuel EX 9.8 is the culmination of years of trail riding and progression, with longer front end geometry for tackling steeper and hairier descents, and a steeper seat tube to keep you perched on climbs. It’s equipped with the cherry-picked components you want, like upgraded suspension, carbon wheels, and a Shimano XT drivetrain.
Why you’ll love it
- 1: You’ll get the light weight and vibration damping benefits of a full carbon frame, and geometry built to handle anything
- 2: It comes with light and stiff carbon wheels that make quick work of technical terrain and keep you on your line, even when things get hairy
- 3: With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
- 4: Trek expanded their size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5? wheels, S frames get to choose between 27.5? or 29?, and sizes M and up get 29? wheels
- 5: You get the precise shifting and brake modulation of a Shimano XT drivetrain, plus the simple reliability of a threaded bottom bracket
TECH SPECS
Frameset

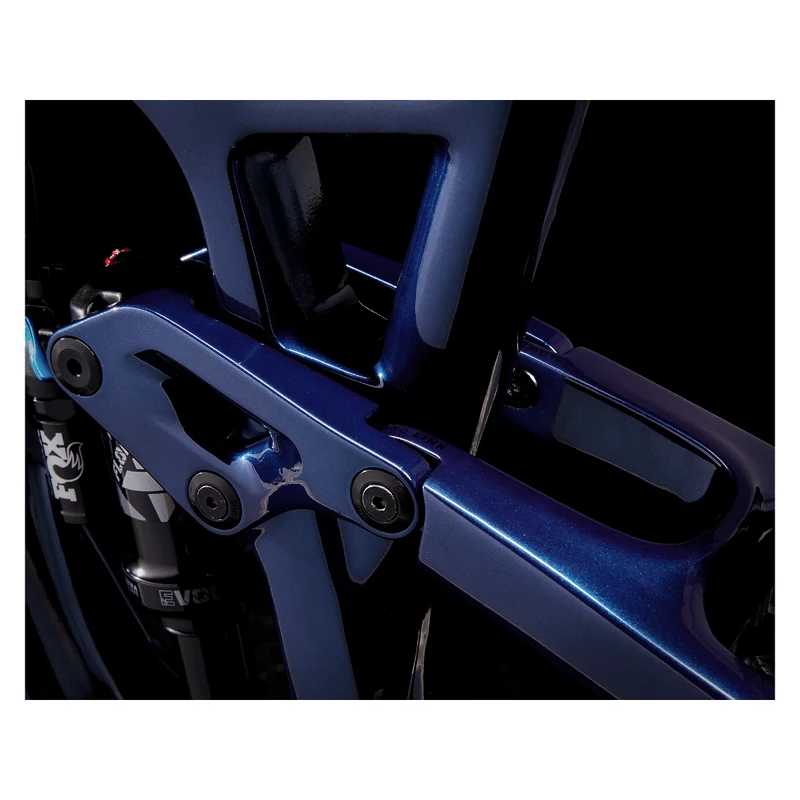

- Frame: OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
- Fork: Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel

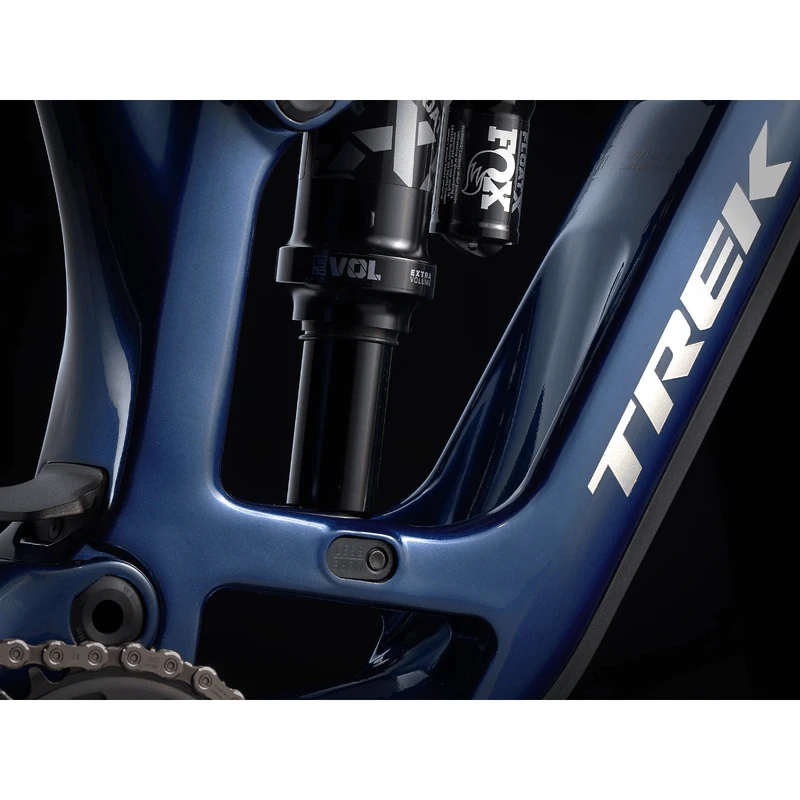

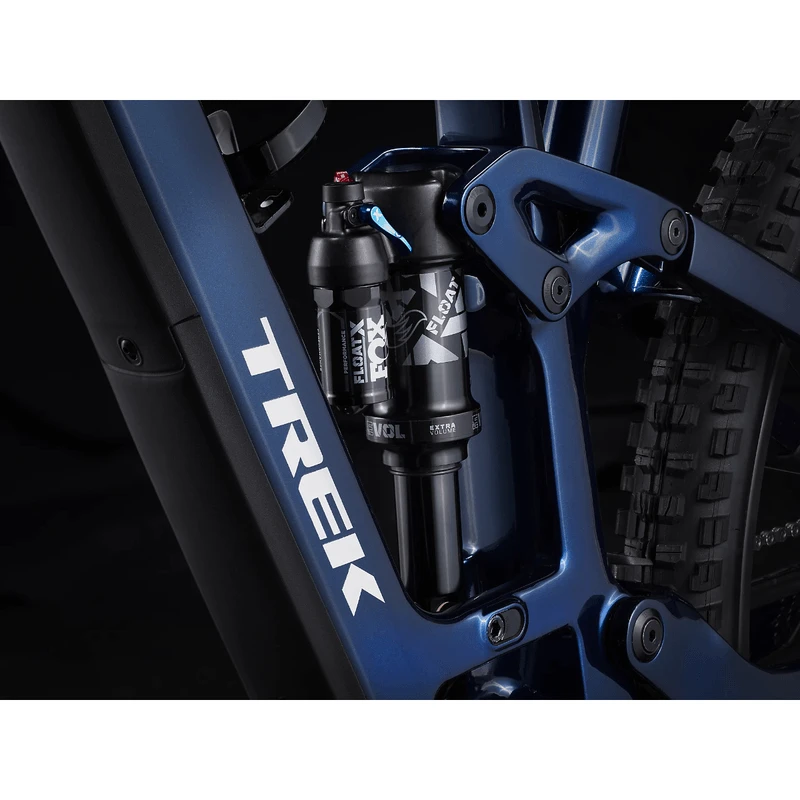

- Shock: Fox Performance Float X, 2-position damper, 185mm x 55mm
Wheels
- Wheel front: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
- Wheel rear: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108
- Size XS, S: 6-bolt, Boost148, 12mm thru axle
- Size S, M, ML, L, XL: 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
- Hub front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
- Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
- Skewer rear: Bontrager Switch thru axle, removable lever
- Rim: Bontrager Line Elite 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

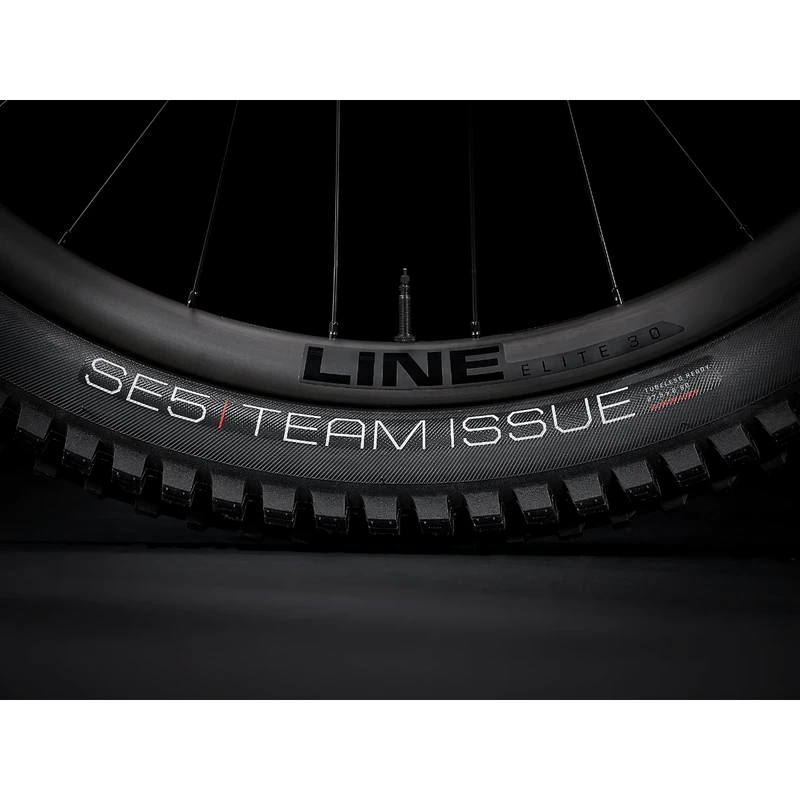

- Tire: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead
- Size XS, S: 120 tpi, 27.5×2.50”
- Size S, M, ML, L, XL: 120 tpi, 29×2.50”
- Tire part: Bontrager TLR sealant, 6oz
- Rim strip: Bontrager TLR
Drivetrain

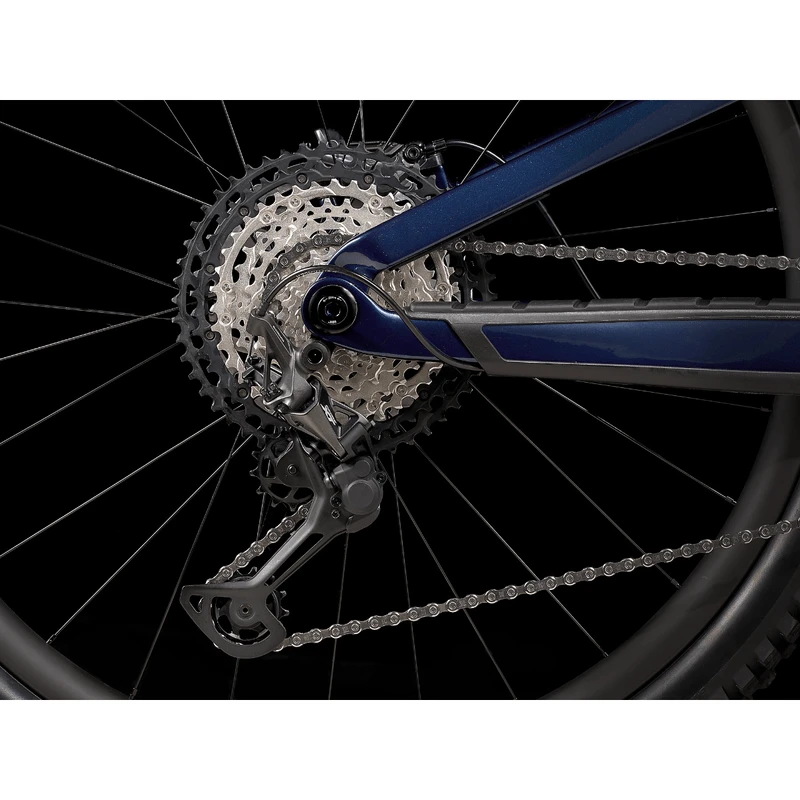

- Shifter: Shimano XT M8100, 12 speed
- Rear derailleur: Shimano XT M8100, long cage
- Crank: Shimano XT M8120, 30T, 55mm chainline, 170mm length
- Bottom bracket: Shimano BB-MT501 BSA
- Cassette: Shimano XT M8100, 10-51, 12 speed
- Chain: Shimano Ultegra/XT M8100, 12 speed
Components
- Saddle: Bontrager Arvada, austenite rails, 138mm width
- Seatpost: Bontrager Line Elite Dropper, MaxFlow, Internal routing
- Size XS, S: 100mm travel, 34.9mm, 345mm length
- Size M, ML: 150mm travel, 34.9mm, 440mm length
- Size L: 170mm travel, 34.9mm, 485mm length
- Size XL: 200mm travel, 34.9mm, 550mm length
- Integrated Bar Stem: Bontrager RSL Integrated handlebar/stem, OCLV Carbon
- Size XS, S: 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
- Size M, ML, L, XL: 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
- Grips: Bontrager XR Trail Elite, nylon lock-on

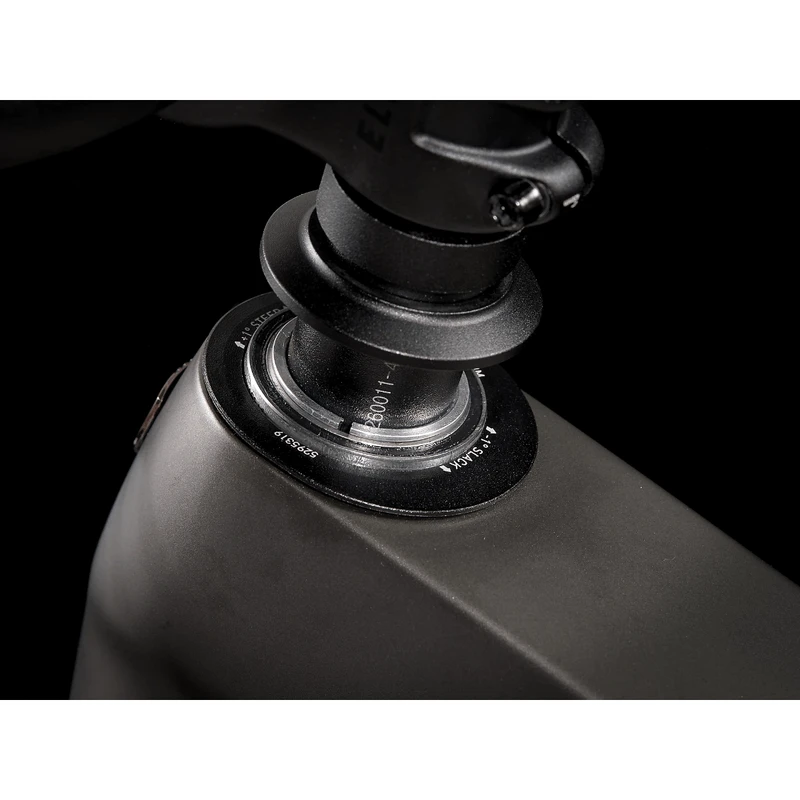

- Headset: Integrated cartridge bearing, 1-1/8” top, 1.5” bottom, angle adjust cup compatible

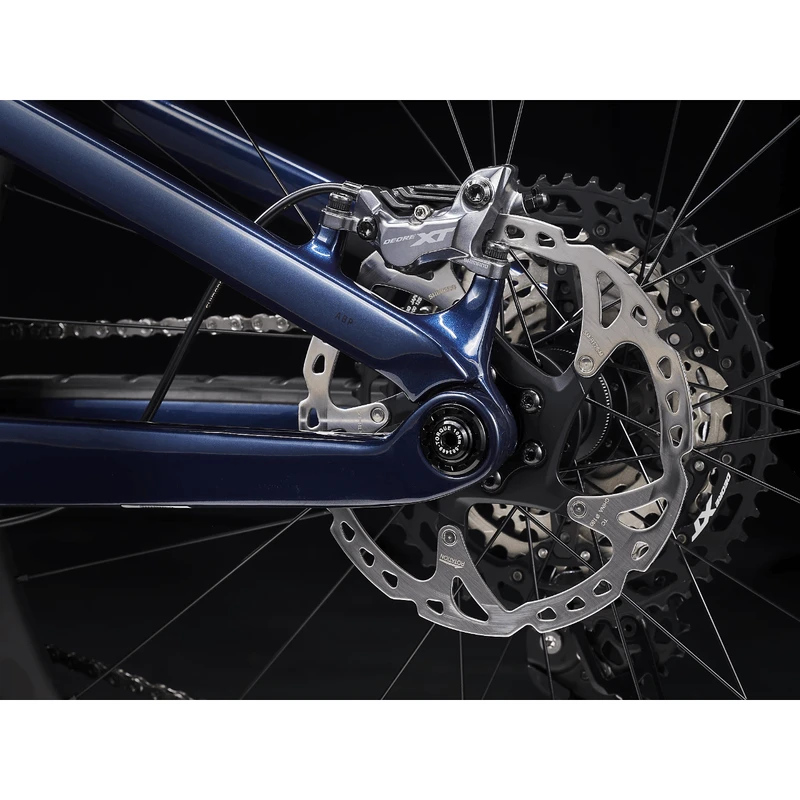

- Brake: Shimano XT M8120 4-piston hydraulic disc
- Brake rotor:
- Size XS, S, M, ML, L, XL: Shimano RT76, 6-bolt, 180mm
- Size: M, ML, L, XL: Shimano RT76, 6-bolt, 203mm
Weight
- Weight: M – 14.33 kg / 31.6 lbs (with TLR sealant, no tubes)
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
| Size | M |
|---|---|
| Wheel Size | 29 |
