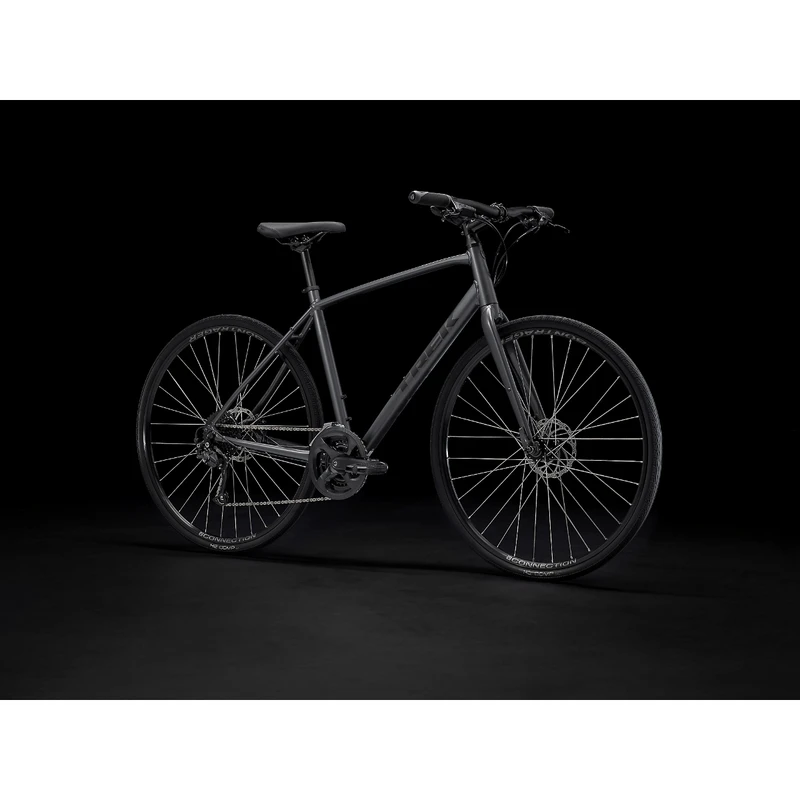

Trek FX 2 Disc Bike – 2023

TREK FX 2 DISC BIKE – 2023

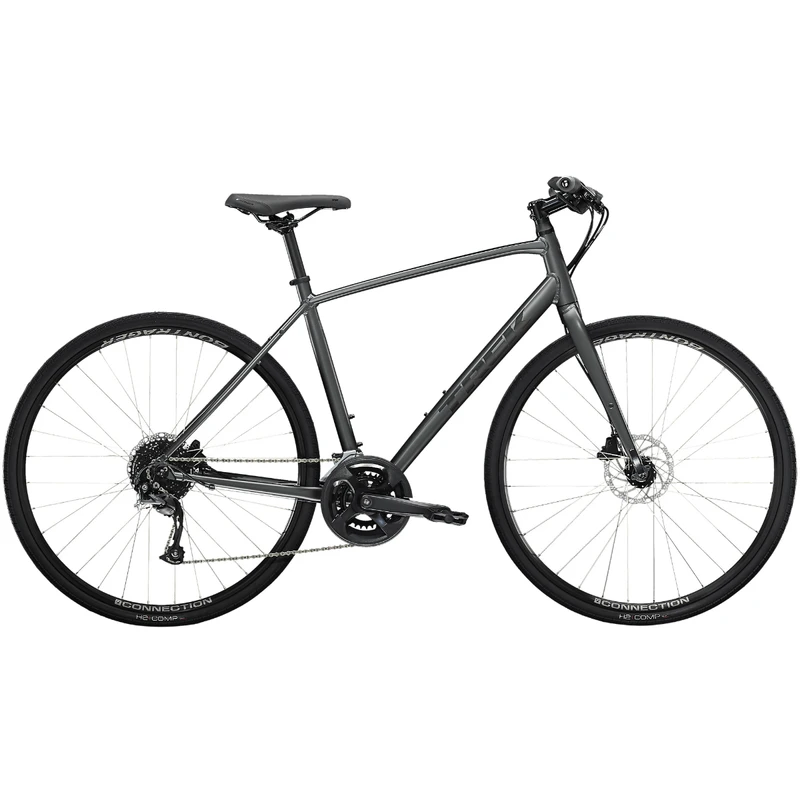

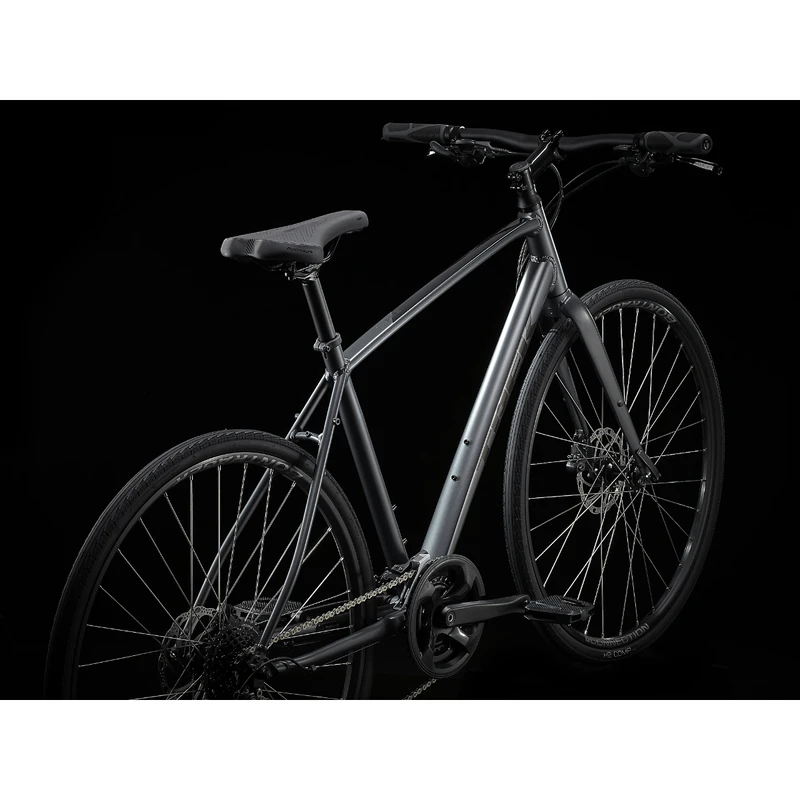

FX 2 Disc is a stylish and versatile hybrid bike with disc brakes that let you stop on a dime and ask for change, even when the weather isn’t cooperating. Train, commute, or ride for fun with the lightweight aluminum frame, 18 speeds, and semi-skinny tires that are fast on the road and stable on loose terrain.

It’s right for you if…
Raining cats and dogs? That doesn’t keep you from riding. You want a high-value hybrid bike with the superior all-weather stopping power of disc brakes, plus a lightweight frame and quality parts that will hold up over time.

The tech you get
A lightweight aluminum frame with hydraulic disc brakes for all-weather stopping power, a Shimano drivetrain with 18 speeds and a wide range of gearing so you’re never pedaling too hard or too soft, powerful disc brakes, and mounts that make it easy to accessorize your ride!

The final word
FX 2 Disc is a hybrid bike with parts that perform on training rides, trips to the market, or your morning commute. It has endless options for accessories, but what really sets this model apart is the disc brakes, which provide great stopping power in all weather conditions.

FEATURES

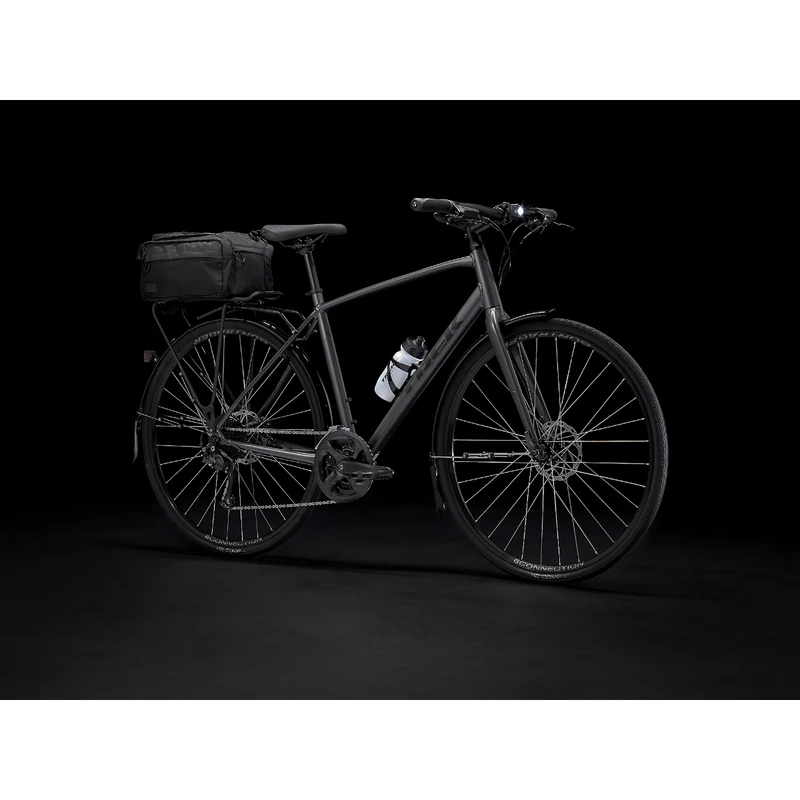

• Rack & Fender Ready: Built-in mounts make it easy to add racks and fenders for added versatility.

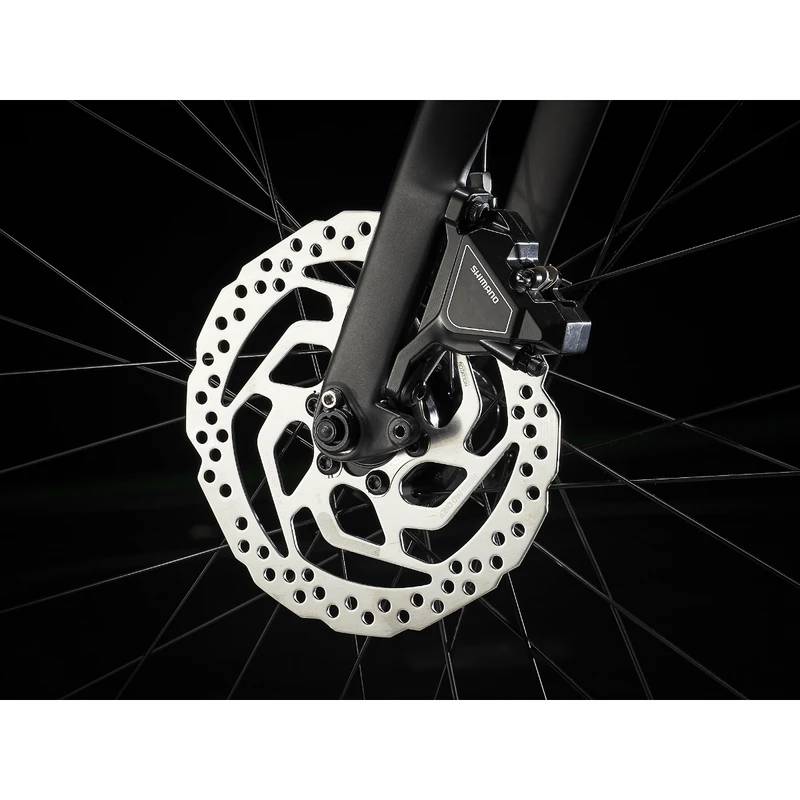

• Hydraulic Disc Brakes: Hydraulic disc brakes offer the absolute strongest stopping power in all conditions, including wet and muddy.

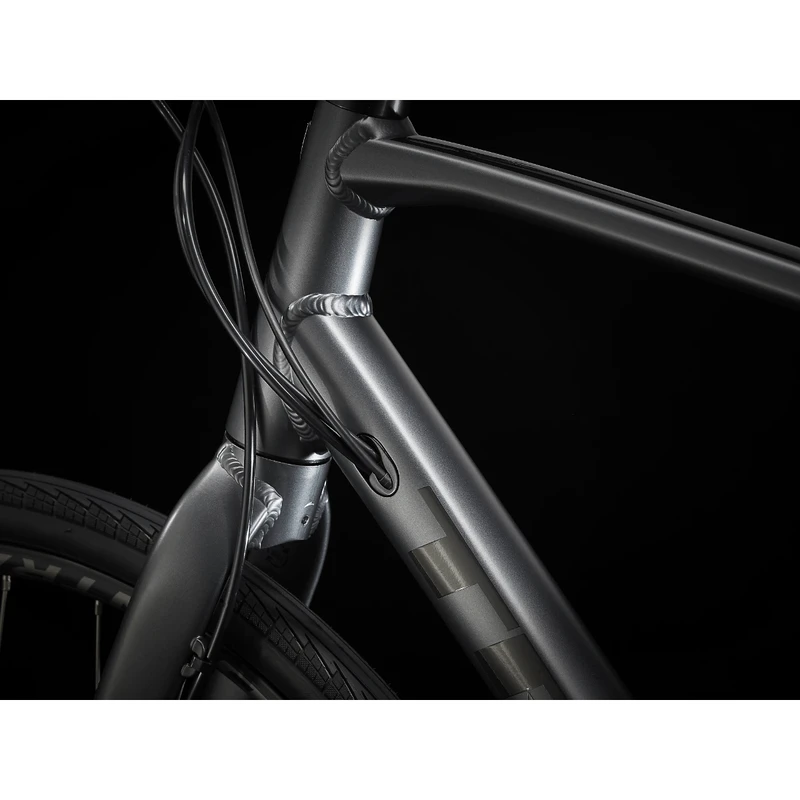

• Internal Cable Routing: We route shift and brake cables through the frame to keep things clean and simple. It looks great, too.
• Blendr Stem: Bontrager stem technology lets you clip your gear directly to the stem for clean looks, maximum user friendliness.

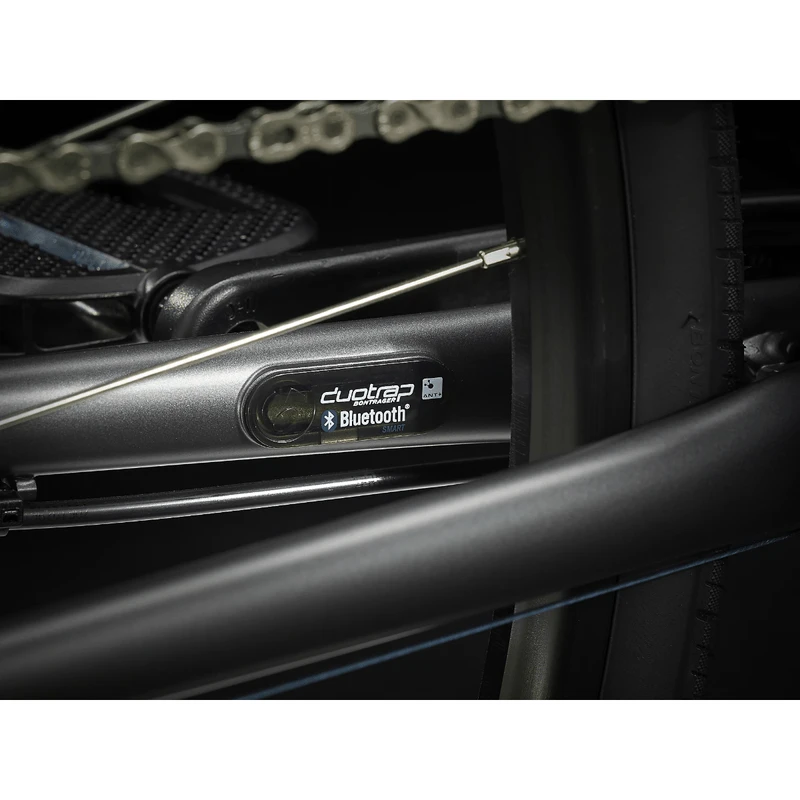

• DuoTrap S Compatible: DuoTrap S (sold sepreately) integrates a Bluetooth/ANT+ sensor into the frame. Log routes and track fitness progress on your computer or smart phone with no external sensor. Works with all major ANT+ wireless players, including Bontrager, Garmin, PowerTap, and SRM.

TECH SPECS

Frameset

• Frame: Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
• Fork: FX Alloy, flat mount disc, rack mounts, 405mm axle-to-crown, ThruSkew 5mm QR

Wheel

• Hub front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
• Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

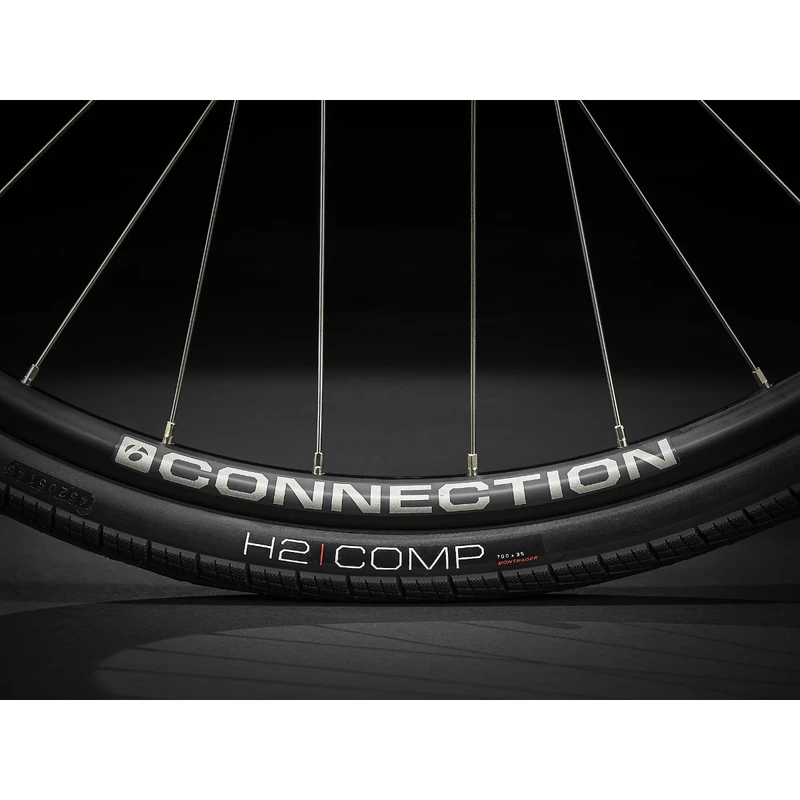

• Rim: Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
• Tire: Bontrager H2 Comp, wire bead, 30tpi, 700x35c
• Max tire size: 38c without fenders, 35c with fenders

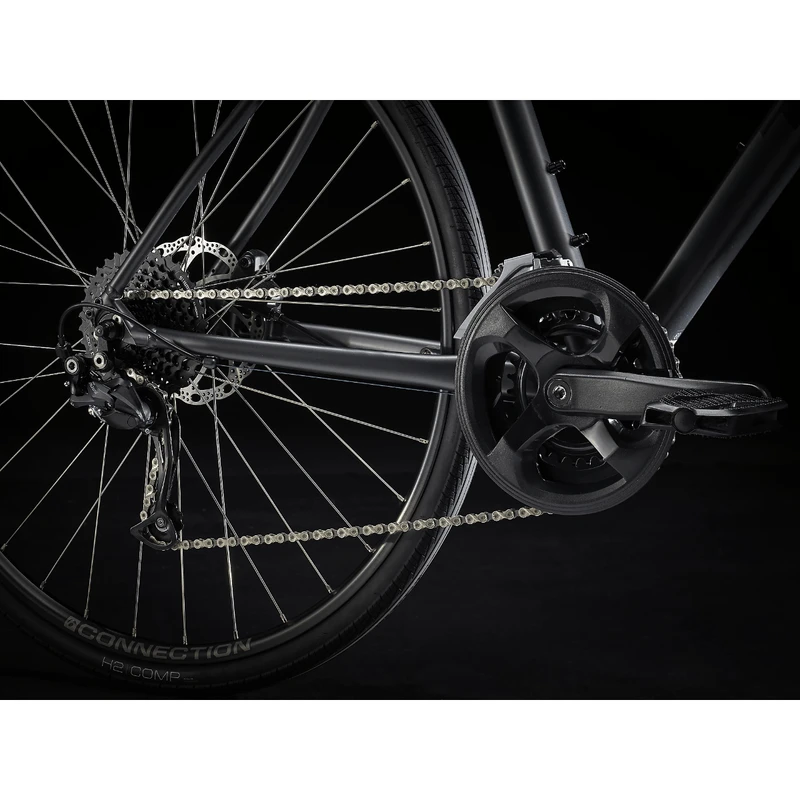

Drivetrain

• Shifter: Size: XS, S, M, L, XL, XXL – Shimano Altus M2010, 9 speed. Size: XS, S, M, L, XL, XXL – Shimano Altus M2010, 2 speed
• Front derailleur: Shimano Acera T3000, 34.9mm clamp, top swing, dual pull
• Rear derailleur: Shimano Altus M2000, long cage
• Crank: Forged alloy, 46/30, chainguard, 170mm length
• Bottom bracket: Sealed cartridge, 68mm
• Cassette: Shimano HG200, 11-36, 9 speed
• Chain: KMC X9
• Pedal: Bontrager City pedals

Component

• Saddle: Bontrager Sport
• Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length

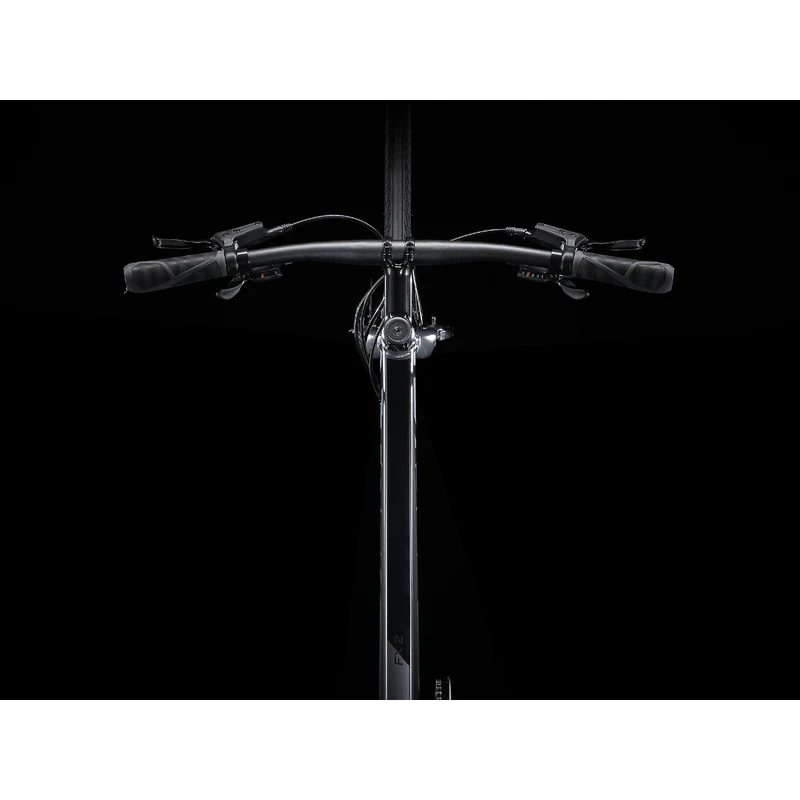

• Handlebar: Size: XS, S, M – Bontrager alloy, 31.8mm, 15mm rise, 600mm width. Size: L, XL, XXL – Bontrager alloy, 31.8mm, 15mm rise, 660mm width

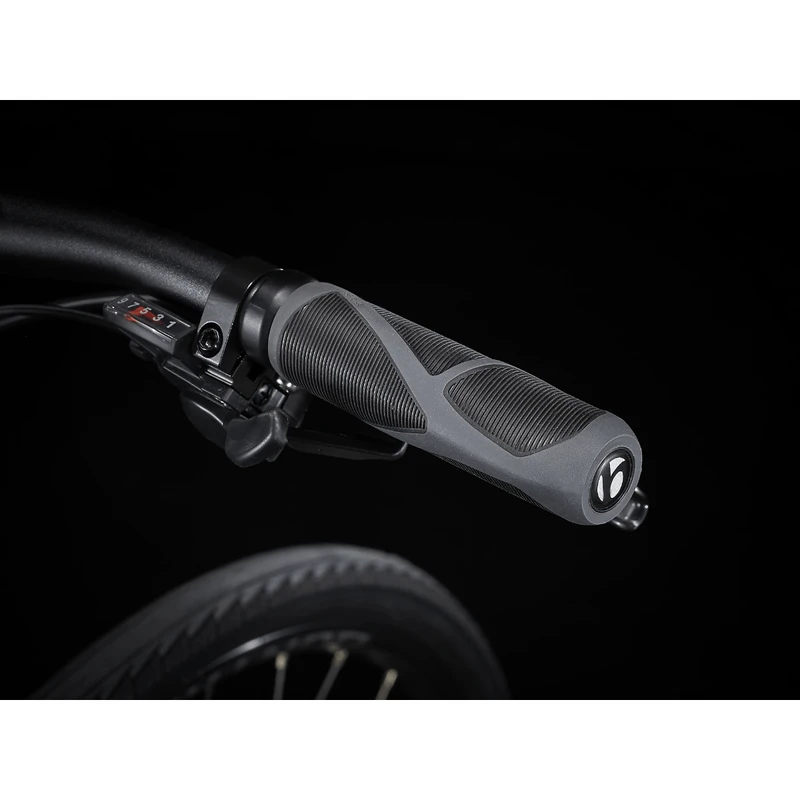

• Grips: Bontrager Satellite
• Stem: Size: XS, S, M – Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length. Size: L, XL, XXL – Bontrager alloy, 31.8mm clamp, Blendr compatible, 7 degree, 100mm length
• Headset: 1-1/8” threadless, sealed cartridge bearings
• Brake: Tektro HD-R280 hydraulic disc, flat mount, 160mm rotor

Weight

• Weight: M – 25.86 lbs / 11.73 kg
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
