Trek Madone Slr 7 Axs Gen 7

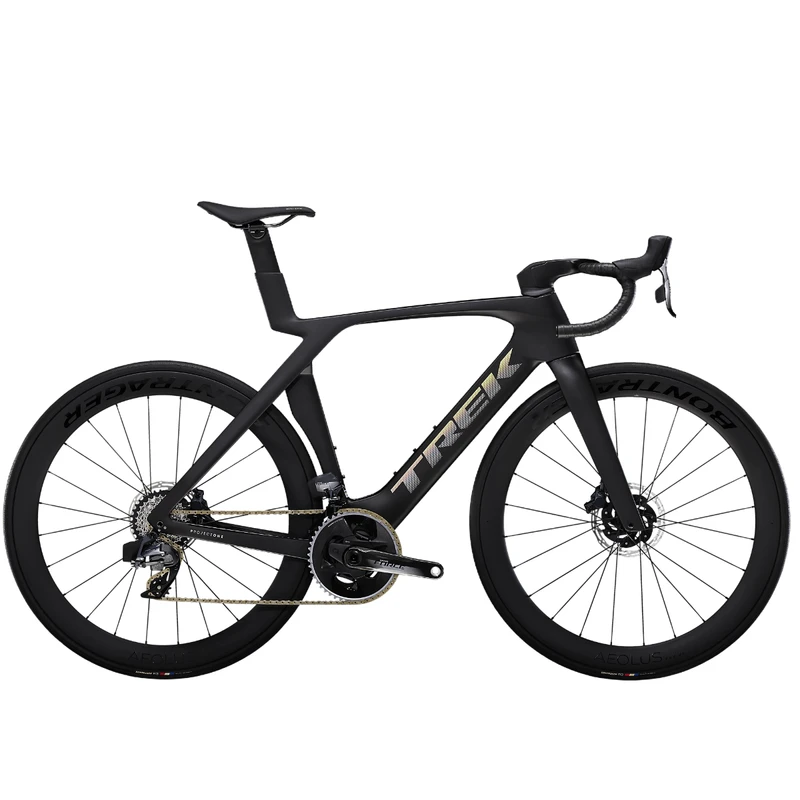

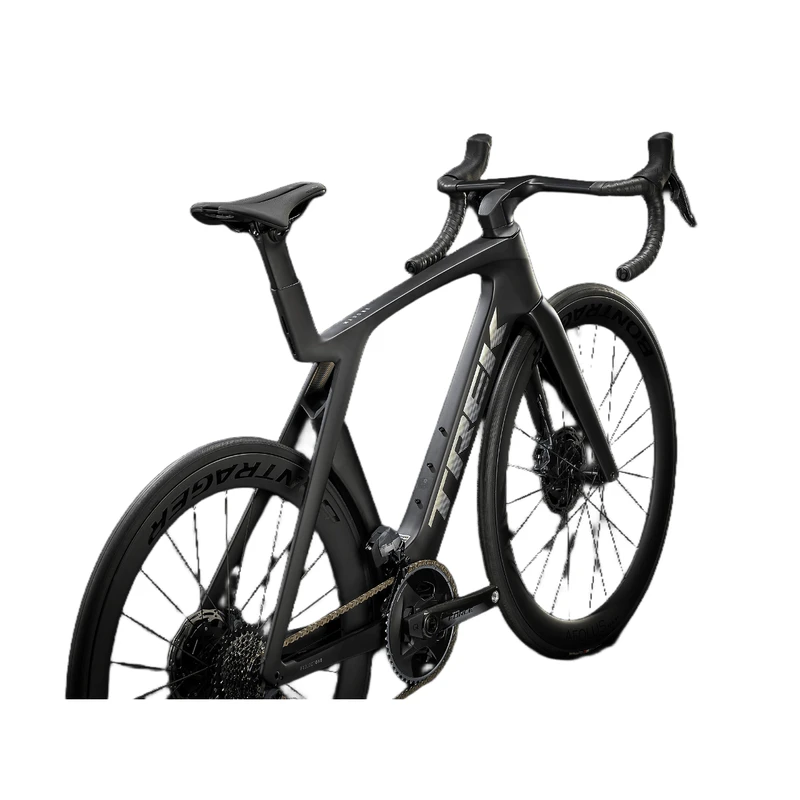

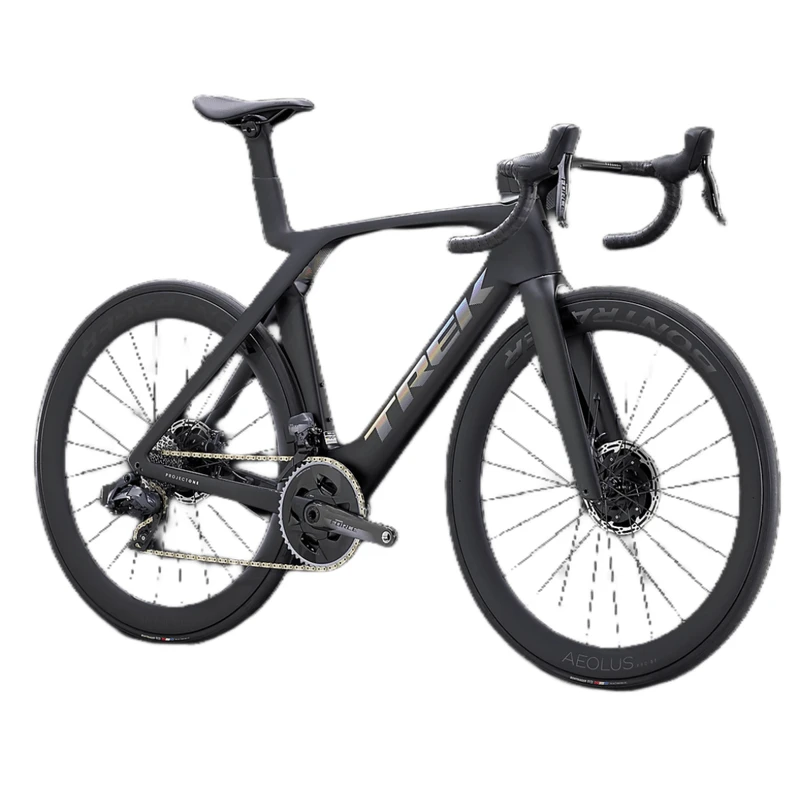

TREK MADONE SLR 7 AXS GEN 7

Madone SLR 7 is the ultimate race machine. An 800 Series OCLV Carbon frame with exclusive IsoFlow technology adds an aerodynamic advantage, cuts weight, and smooths the road ahead. It’s built from the ground up with cherry-picked components for a smooth and light ride, like SRAM’s Force AXS wireless electronic 12-speed drivetrain with power meter and carbon wheels with a deep rim for aerodynamic gains.

It’s right for you if…
Speed is your top priority, and you want the best aero road racing frame with all-new aero IsoFlow comfort tech to shed grams and watts. You care about the finer things, like a clean wireless cockpit and the custom tunability of SRAM’s Force eTap AXS.

The tech you get
A lightweight frame with the highest-level 800 Series OCLV Carbon, new Kammtail Virtual Foil aerodynamic tube shaping, aerodynamic and road-smoothing IsoFlow technology, and invisible cable routing. A wireless electronic 2×12 SRAM Force eTap AXS drivetrain and flat-mount hydraulic disc brakes, power meter cranks for monitoring performance metrics, tubeless-ready Bontrager Aeolus Pro 51 carbon wheels, and an integrated OCLV Carbon bar/stem combo.

The final word
Madone SLR is the best and lightest aero road frame, but it’s the all-new IsoFlow technology that really sets this bike apart. It adds compliance for a more comfortable ride with impressive aerodynamics.

FEATURES

• Unprecedented aerodynamics: All-new aerodynamic Kammtail frame shapes, bar/stem design, and rider position make Madone SLR the fastest Trek road race bike yet

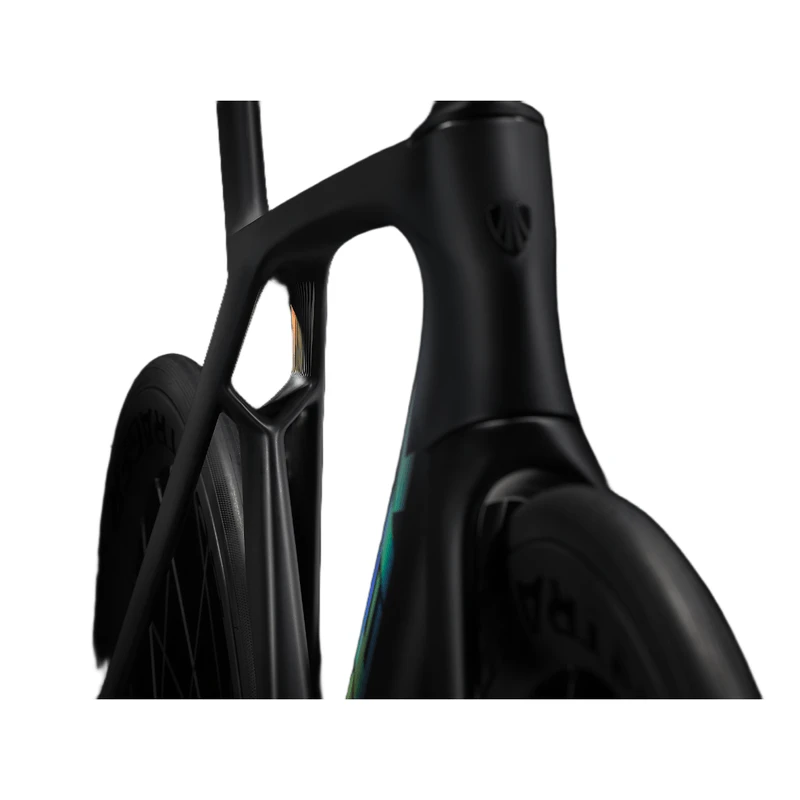

• Exclusive IsoFlow technology: Never before seen IsoFlow technology specifically designed for the 7th generation Madone SLR shaves weight, improves aerodynamics, and smooths your ride
• Trek’s lightest Madone disc ever: Super lightweight 800 Series OCLV Carbon and a new lightweight design make this the lightest Madone disc ever

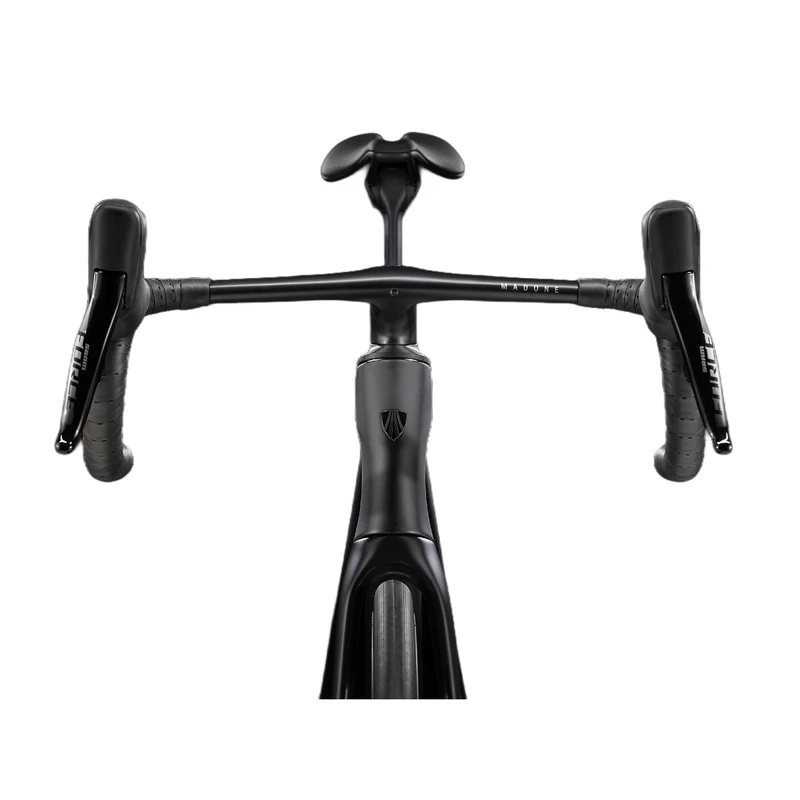

• New ergonomic bar/stem: A newly optimized bar/stem that’s 3cm narrower in the hoods than the drops offers a more comfortable and ergonomic riding position for faster racing, improved aerodynamics, and ultimate control. Use the same bar/stem size you’re used to – if you normally ride with a 42cm bar/stem, opt for 42cm in the drops and 39cm in the hoods
• Refined integration: Every element of this bike is part of a greater whole. It has invisible cable routing, aero cockpit, hidden seatmast, and more

TECH SPECS

Framset

• Frame: 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
• Fork: Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
• Frame fit: H1.5 Race

Wheels

• Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
• Wheel rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru-axle
• Skewer front: Bontrager Switch thru axle, removable lever
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready
• Tire: Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
• Max tire size: 28c

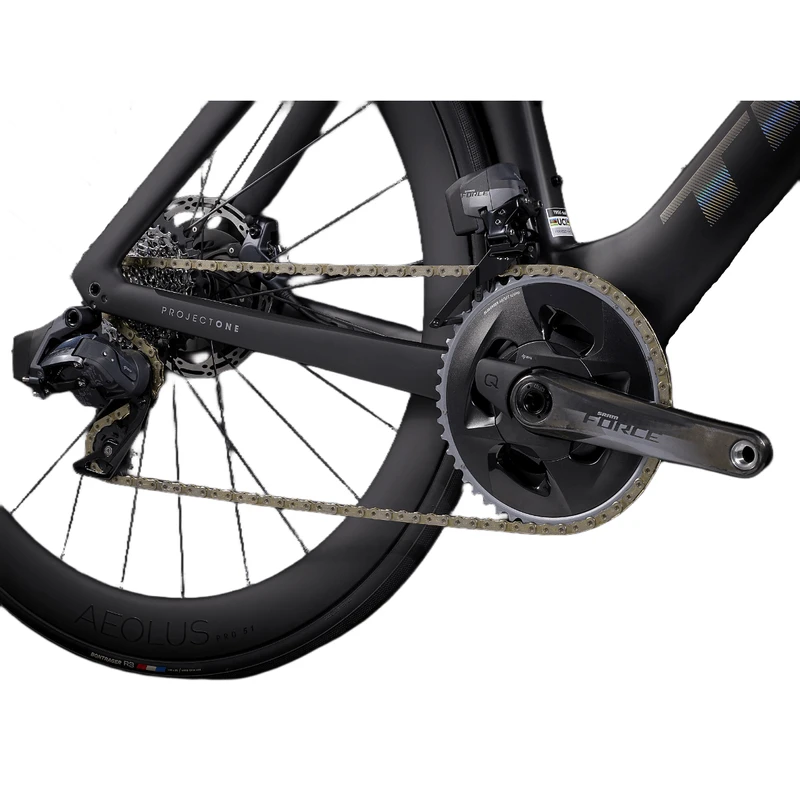

Drivetrain

• Shifter: SRAM Force eTap AXS, 12 speed
• Front derailleur: SRAM Force eTap AXS, braze-on
• Rear derailleur: SRAM Force eTap AXS, 36T max cog
• *Crank: Size: 47
• SRAM Force AXS Power Meter, 48/35, DUB, 165mm length
• Size: 50, 52
• SRAM Force AXS Power Meter, 48/35, DUB, 170mm length
• Size: 54, 56, 58
• SRAM Force AXS Power Meter, 48/35, DUB, 172.5mm length
• Size: 60, 62
• SRAM Force AXS Power Meter, 48/35, DUB, 175mm length
• Bottom bracket: SRAM DUB, T47 threaded, internal bearing
• Cassette: SRAM Force XG-1270, 10-33, 12 speed
• Chain: SRAM Force, 12 speed
• Max chainring size 1x: 50T, 2x: 54/40

Components

• *Saddle: Size: 47, 50, 52
• Bontrager Aeolus P2 Elite, 155mm width
• Size: 54, 56, 58, 60, 62
• Bontrager Aeolus Elite, austenite rails, 145mm width
• *Seatpost: Size: 47, 50, 52, 54

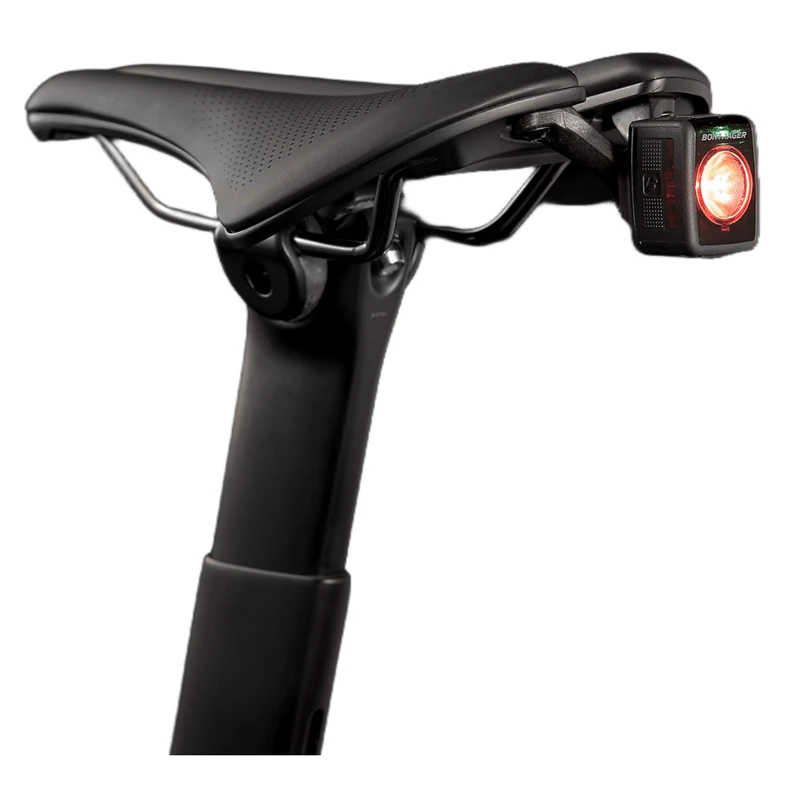

• Madone aero carbon internal seatmast cap, integrated light mount, 0mm offset, short length
• Size: 56, 58, 60, 62
• Madone aero carbon internal seatmast cap, integrated light mount, 0mm offset, tall length

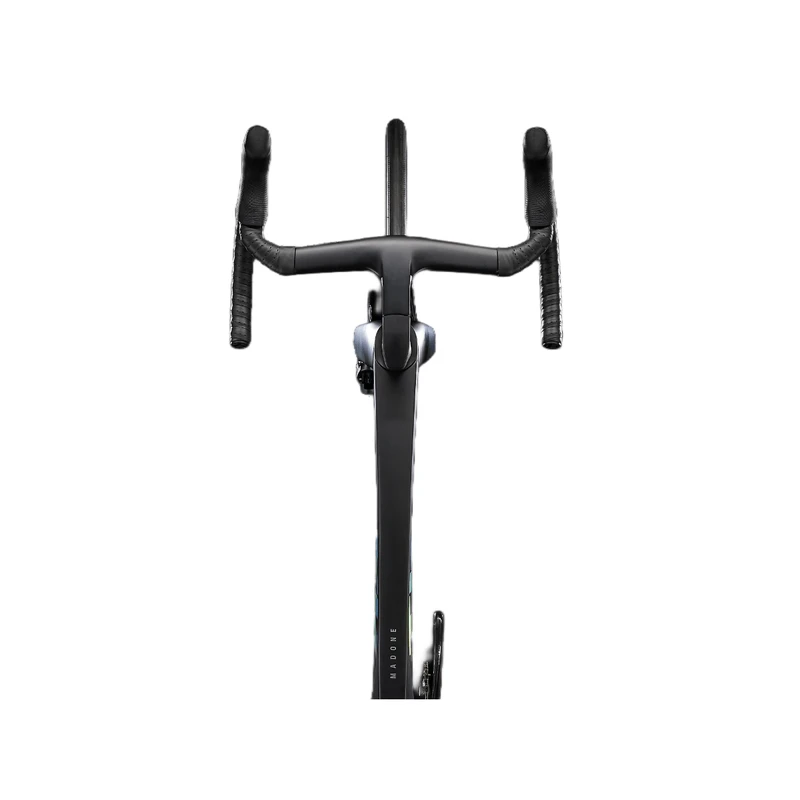

• *Handlebar/stem (integrated): Size: 47
• Madone Integrated handlebar/stem, OCLV Carbon, 380mm width, 80mm stem length
• Size: 50, 52
• Madone Integrated handlebar/stem, OCLV Carbon, 400mm width, 90mm stem length
• Size: 54
• Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 90mm stem length
• Size: 56, 58
• Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 100mm stem length
• Size: 60, 62
• Madone Integrated handlebar/stem, OCLV Carbon, 440mm width, 110mm stem length
• Handlebar tape: Bontrager Supertack Perf tape

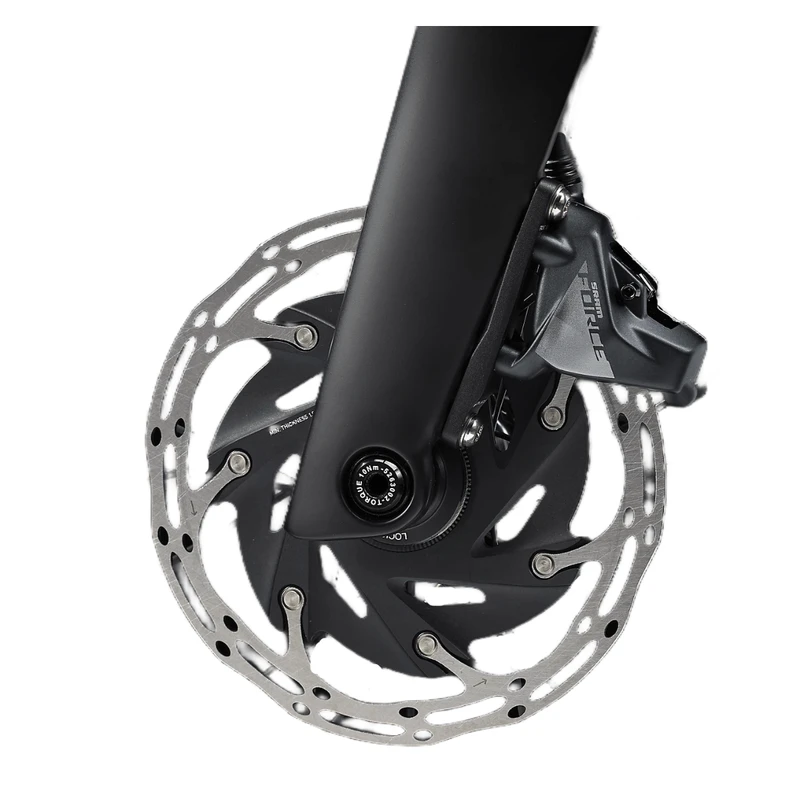

• Brake: SRAM Force eTap AXS hydraulic disc, flat mount
• Brake rotor: SRAM CenterLine X, centerlock, round edge, 160mm
• Rotor size: Max brake rotor sizes: 160mm front & rear

Accessories

• Battery: SRAM eTap battery pack (with charger)

Weight

• Weight: 56 – 7.76 kg / 17.11 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg)
