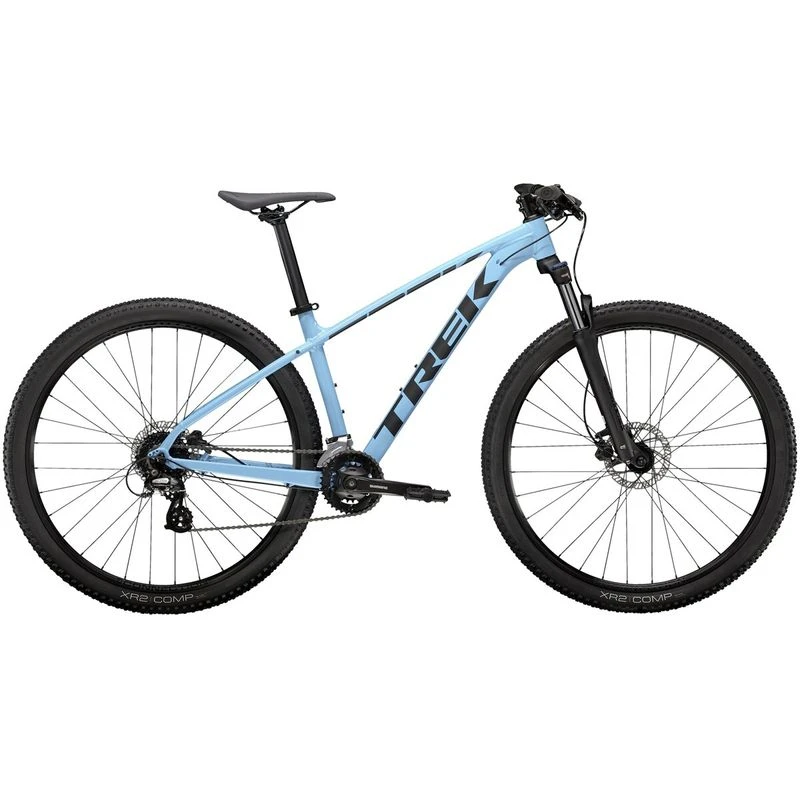

Trek Marlin 5 Bike – 2023

TREK MARLIN 5 BIKE – 2023

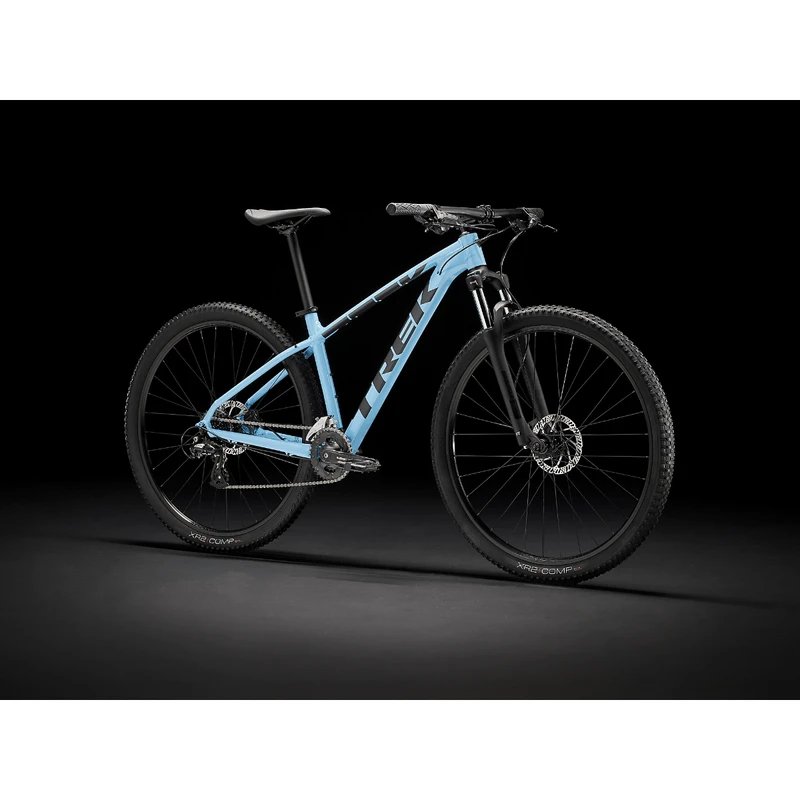

Marlin 5 is a trail-worthy daily rider that’s perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2×8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

It’s right for you if… You’re new to the trail, and you’re looking for a real mountain bike that doubles as a commuter—and you want it all at an exceptional value.

The tech you get A lightweight aluminum frame with internal routing to protect your cables and add to the bike’s sleek look, 2×8 drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes, and a terrain-smoothing suspension fork with a lockout.

The final word Marlin 5 is a great ride for all your adventures. But it’s also versatile, and Marlin 5 is a popular ride on college campuses, because the rack and kickstand mounts make it easy to accessorize and haul a load.

Why you’ll love it – It’s a real mountain bike that’s also perfectly suited to daily commutes, rides around campus, or just getting from A to B on any surface – Smaller frame sizes (XXS, XS, and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently – Marlin models in XXS through S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount – Rack and kickstand mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter – Like every model in the Marlin family, it’s backed by Trek’s lifetime warranty.

FEATURES

• It’s a real mountain bike that’s also perfectly suited to daily commutes, rides around campus, or just getting from A to B on any surface.
• Smaller frame sizes (XXS, XS, and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently.
• Marlin models in XXS through S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount.

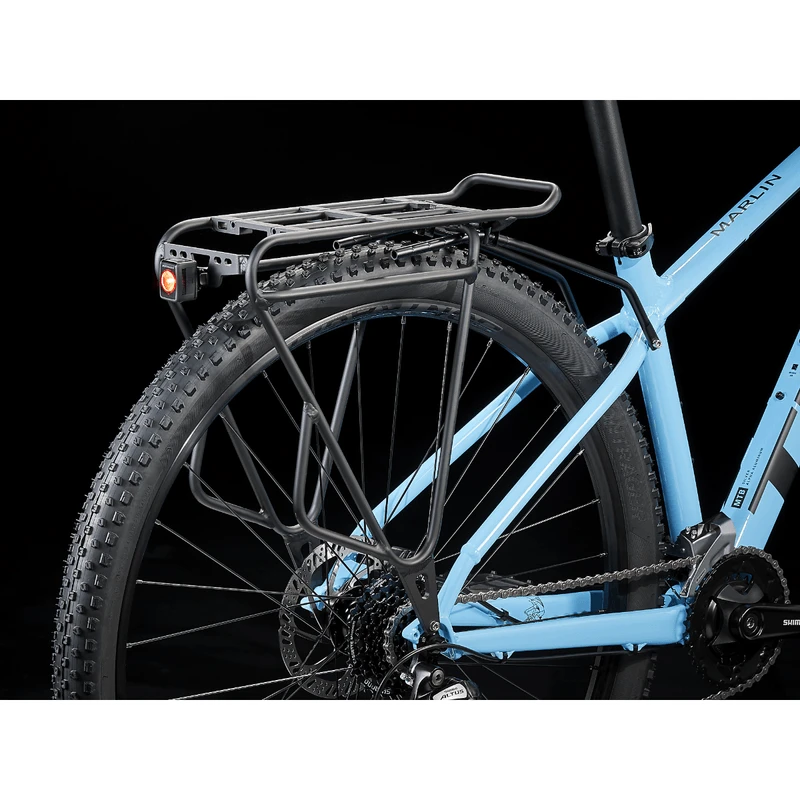

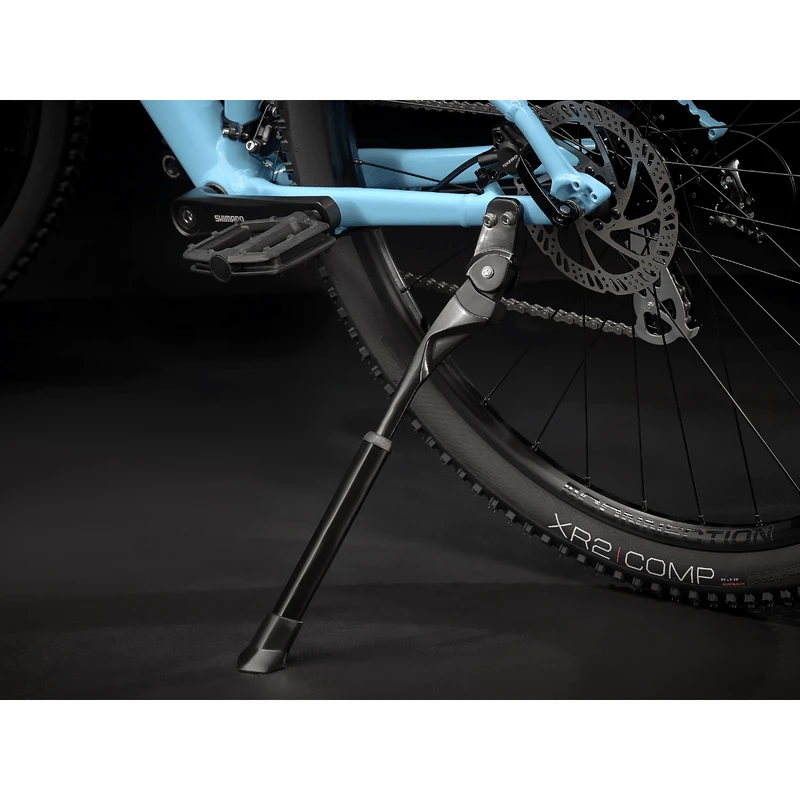

• Rack and kickstand mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter.
• Like every model in the Marlin family, it’s backed by Trek’s lifetime warranty.

TECH SPECS

Frameset

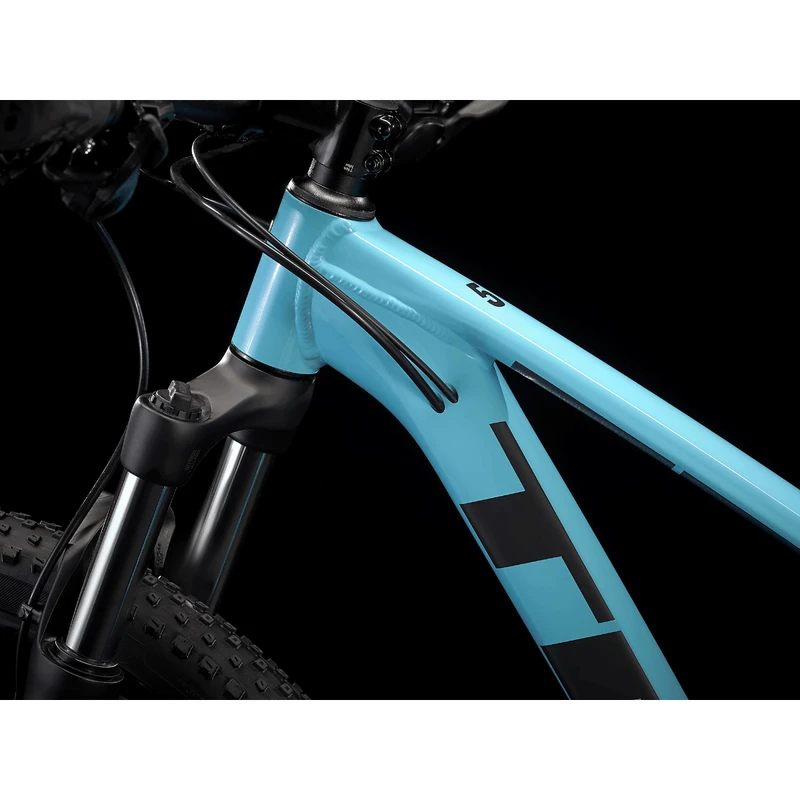

• Frame: Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
• Fork XXS: SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel, 26″ wheel
• Fork XS: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5″ wheel, 100mm QR, 80mm travel
• Fork S: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5″ wheel, 100mm QR, 100mm travel

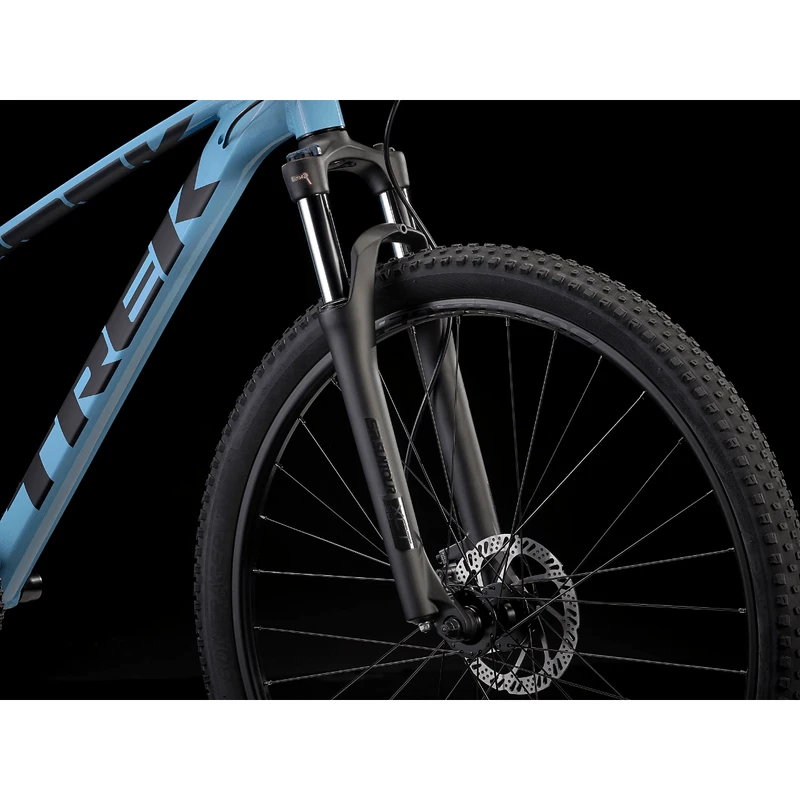

• Fork M,ML,L,XL,XXL: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29″ wheel, 100mm QR, 100mm travel
• Max compatible fork travel: 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

Wheels

• Hub front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
• Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
• Rim XS,S: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black
• Rim M,ML,L,XXL: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
• Rim XXS: Bontrager XR2 Comp, wire bead, 30 tpi, 26×2.20″
• Rim XS,S: Bontrager XR2 Comp, wire bead, 30 tpi, 27.5×2.20″

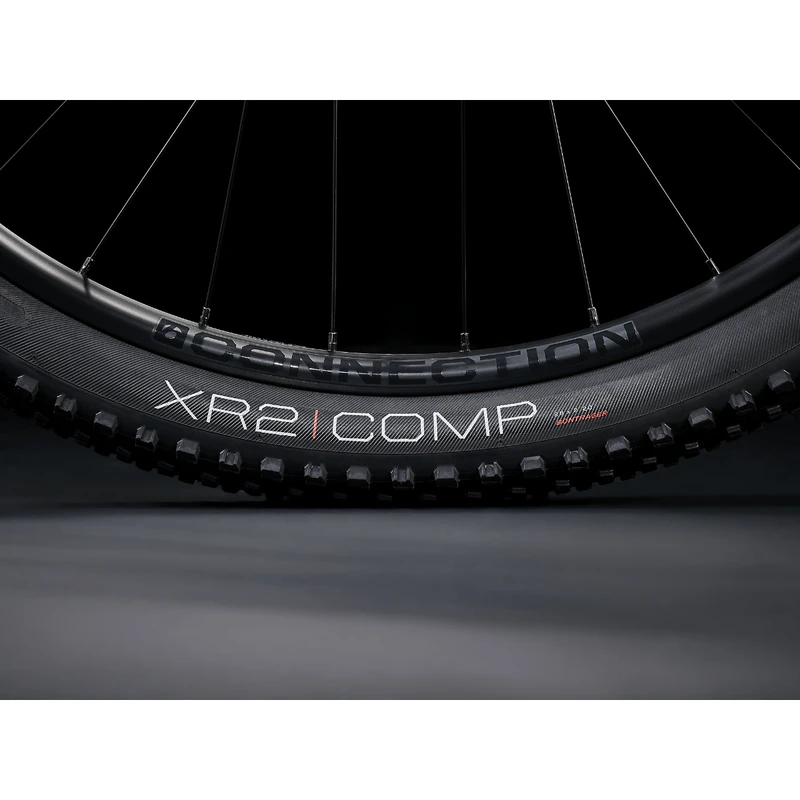

• Rim M,ML,L,XL,XXL: Bontrager XR2 Comp, wire bead, 30 tpi, 29×2.20″
• Max tire size: Frame: 29×2.20″ (XS & S: 27.5×2.4″) Fork: See manufacturer

Drivetrain

• Shifter: Shimano Altus M315, 8 speed
• Front derailleur: Shimano Altus M315, 34.9mm clamp, top swing, dual pull

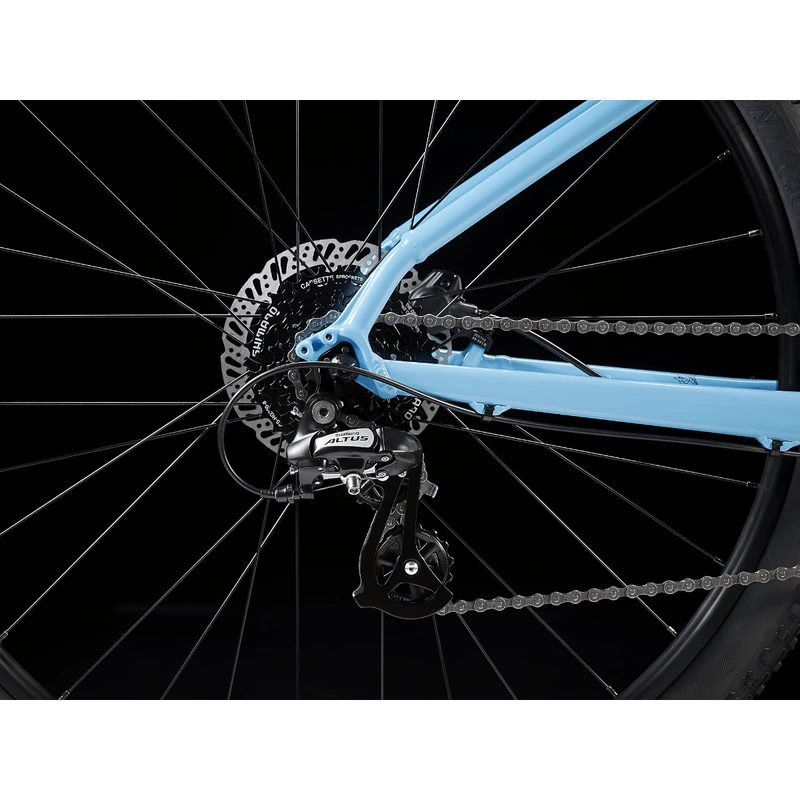

• Rear derailleur: Shimano Altus M310
• Crank XXS: Prowheel TM-CY10, 36/22, 160mm length

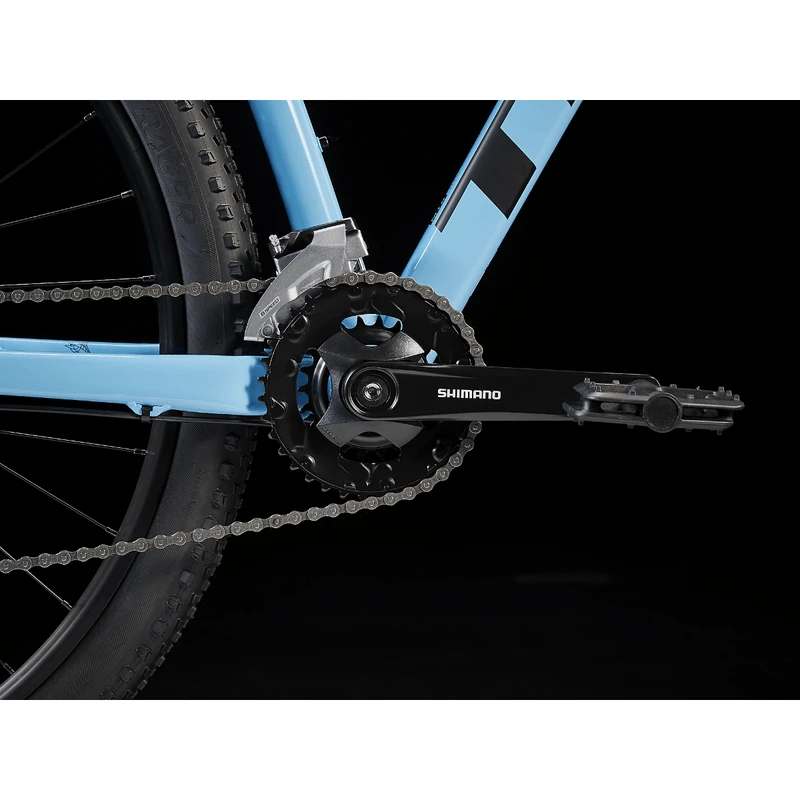

• Crank XS,S,M: Shimano M315, 36/22, 170mm length
• Crank ML,L,XL,XXL: Shimano M315, 36/22, 175mm length
• Crank ML,L,XL,XXL: Shimano M315, 36/22, 175mm length
• Bottom bracket: Sealed cartridge, 73mm
• Chain: KMC Z8.3, 8 speed
• Max chainring size: 1x/2x: 34T, 3x: 42T

Components

• Saddle: Bontrager Arvada, steel rails, 138mm width
• Seatpost XXS: Bontrager alloy, 31.6mm, 12mm offset, 300mm length
• Seatpost XS,S,M: Bontrager alloy, 31.6mm, 12mm offset, 330mm length
• Seatpost ML,L,XL,XXL: Bontrager alloy, 31.6mm, 12mm offset, 400mm length

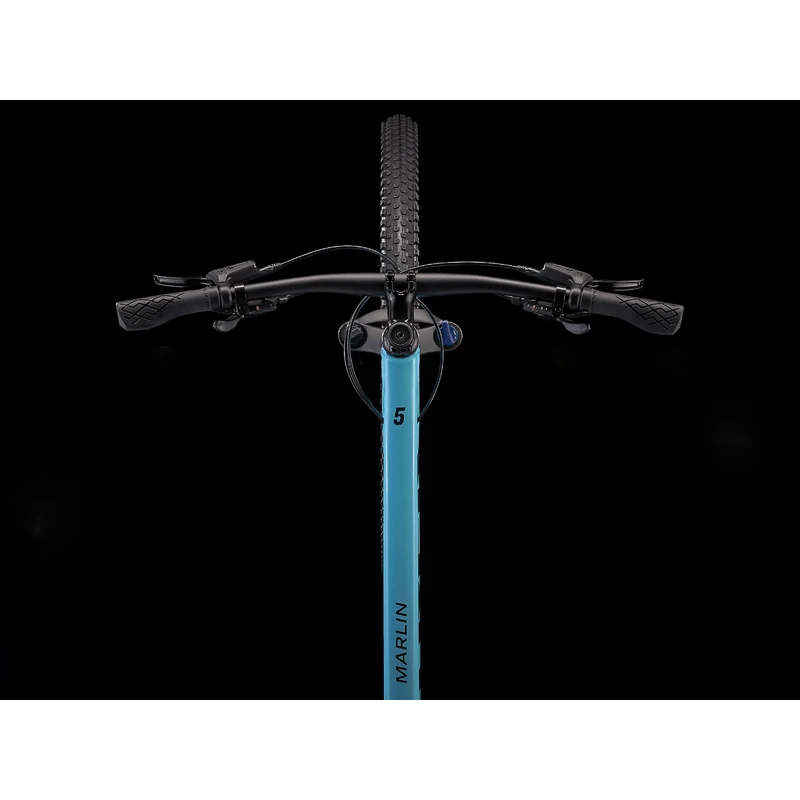

• Handlebar XXS,XS: Bontrager alloy, 31.8mm, 5mm rise, 690mm width
• Handlebar S,M,ML,L,XL,XXL: Bontrager alloy, 31.8mm, 5mm rise, 720mm width
• Stem XXS: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
• Stem XS: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
• Stem S: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
• Stem M: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
• Stem ML,L: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
• Stem XL,XXL: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
• Headset: Semi-integrated, 1-1/8”

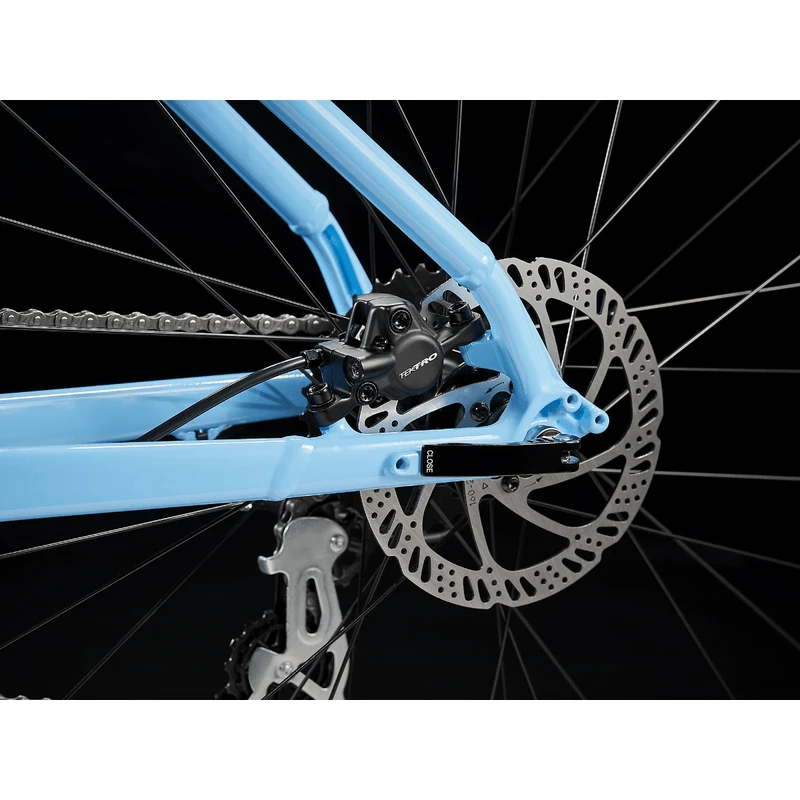

• Brakeset: Tektro HD-M275 hydraulic disc
• Brake Set: Tektro HD-M275 hydraulic disc, 160mm rotor

Weight

• Weight: M – 13.97 kg / 30.81 lbs
  Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
