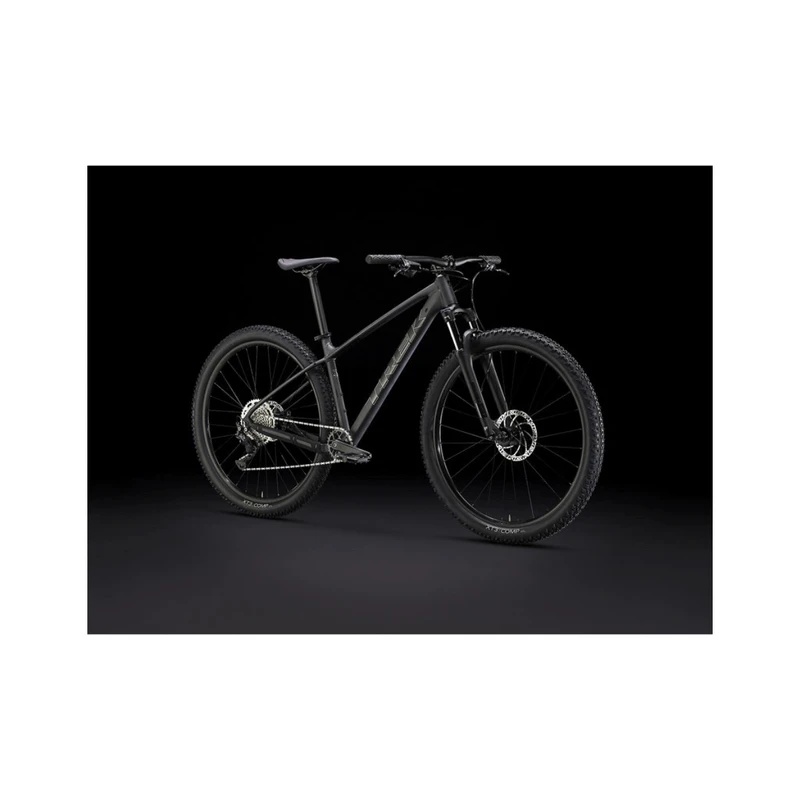

Trek Marlin 6 Gen 3 Bike

TREK MARLIN 6 GEN 3 BIKE

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

FEATURES

• You get real-deal modern mountain bike geometry that keeps handling confident when you’re on singletrack, but is versatile enough for use on roads and bike trails too

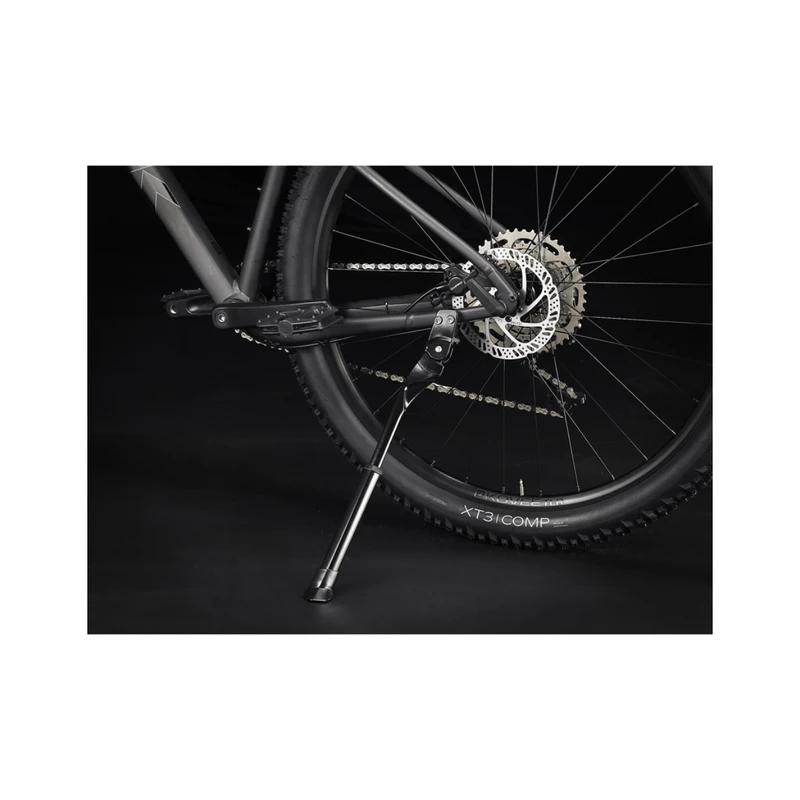

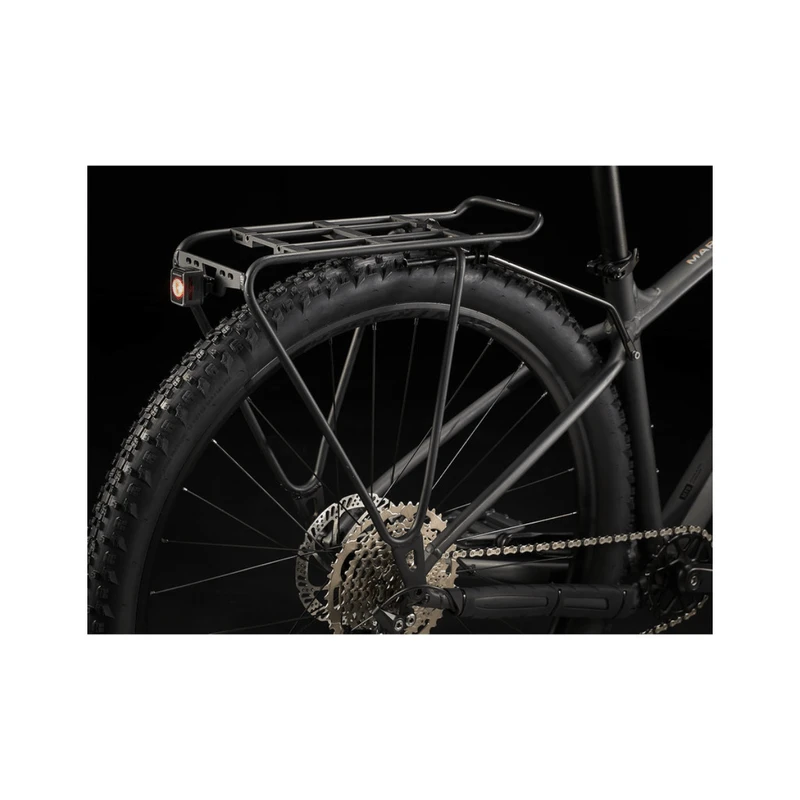

• Rack and mudguard mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
• The new Thru-Skew system is safer, simpler and stronger, plus it makes removing the rear wheel for flat fixes a piece of cake.

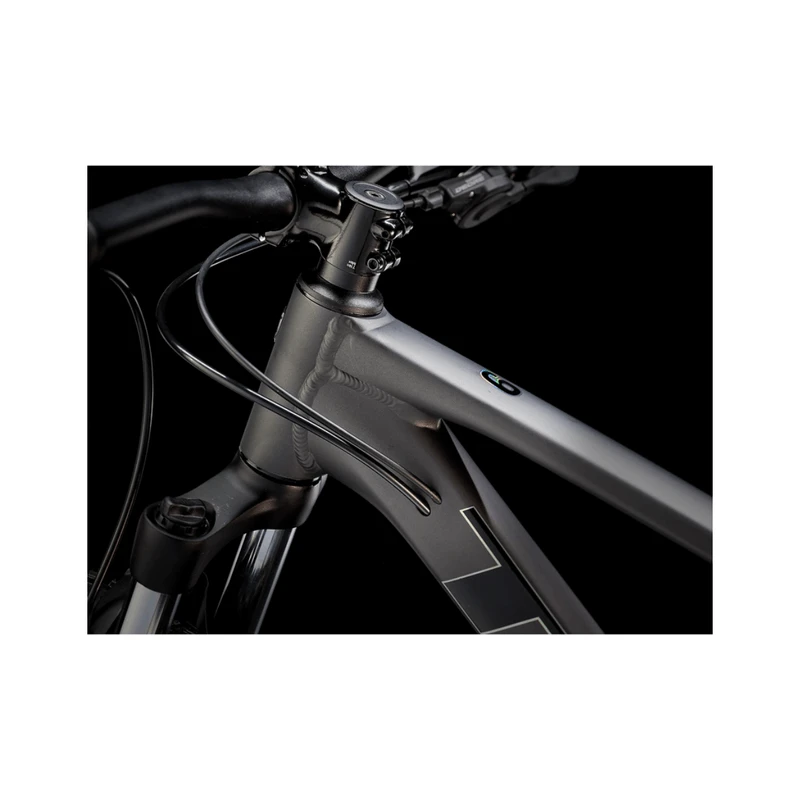

• Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
• Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount

TECH SPECS

Frameset

• Frame
• Size: XXS , XS: Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew
• Size: S , M , ML , L , XL , XXL: Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew

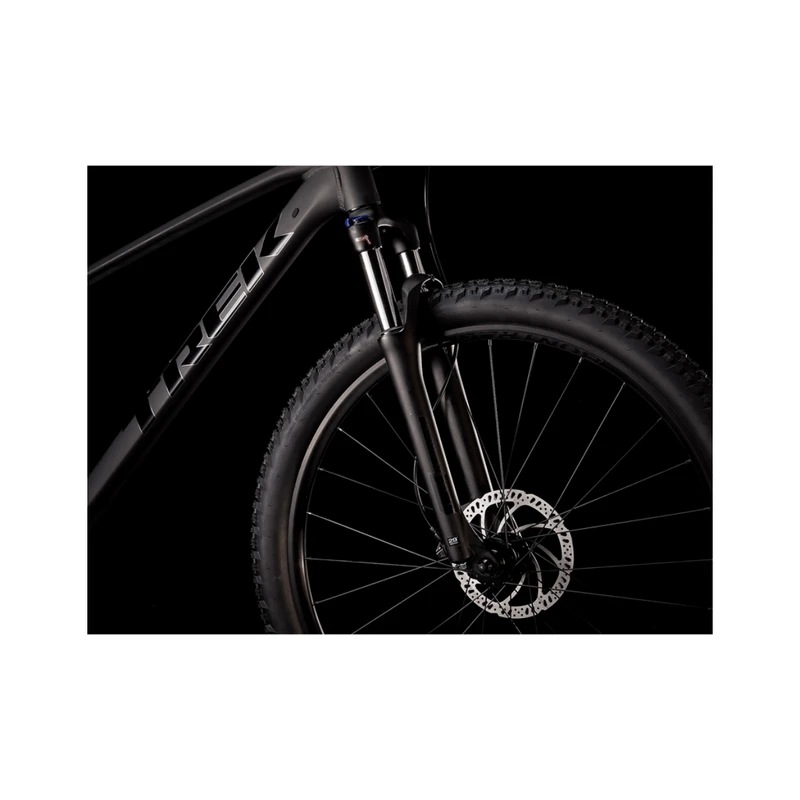

• Fork
• Size: XXS: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 26” wheel, 100 mm QR, 100 mm travel
• Size: XS , S: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel
• Size: XS , S: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5” wheel, 100 mm QR, 100 mm travel
• Size: M , ML , L , XL , XXL: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel
• Size: M , ML , L , XL , XXL: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29” wheel, 100 mm QR, 100 mm travel

Wheels

• Hub Front: Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
• Hub Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR
• Skewer Rear: Bontrager Switch thru axle
• Rim

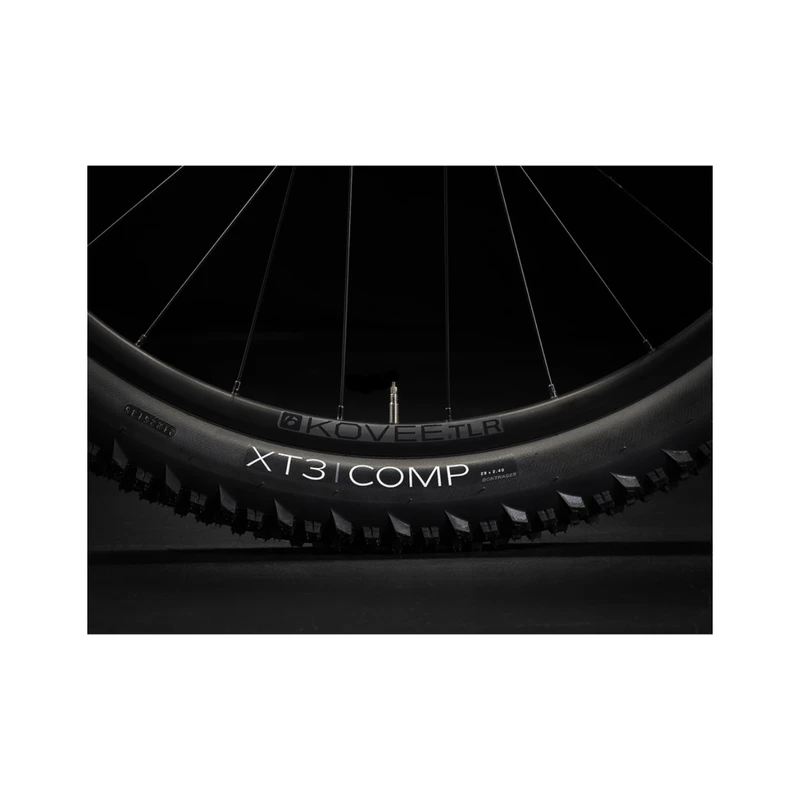

• Size: XXS , XS , S: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
• Size: M , ML , L , XL , XXL: Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
• Spokes: 14 g stainless steel
• Tyre
• Size: XXS: Bontrager XT3 Comp, wire bead, 30 tpi, 26×2.35″
• Size: XS , S: Bontrager XT3 Comp, wire bead, 30 tpi, 27.5×2.40″
• Size: M , ML , L , XL , XXL: Bontrager XT3 Comp, wire bead, 30 tpi, 29×2.40″

Drivetrain

• Shifter: Shimano Deore M4100, 10 speed

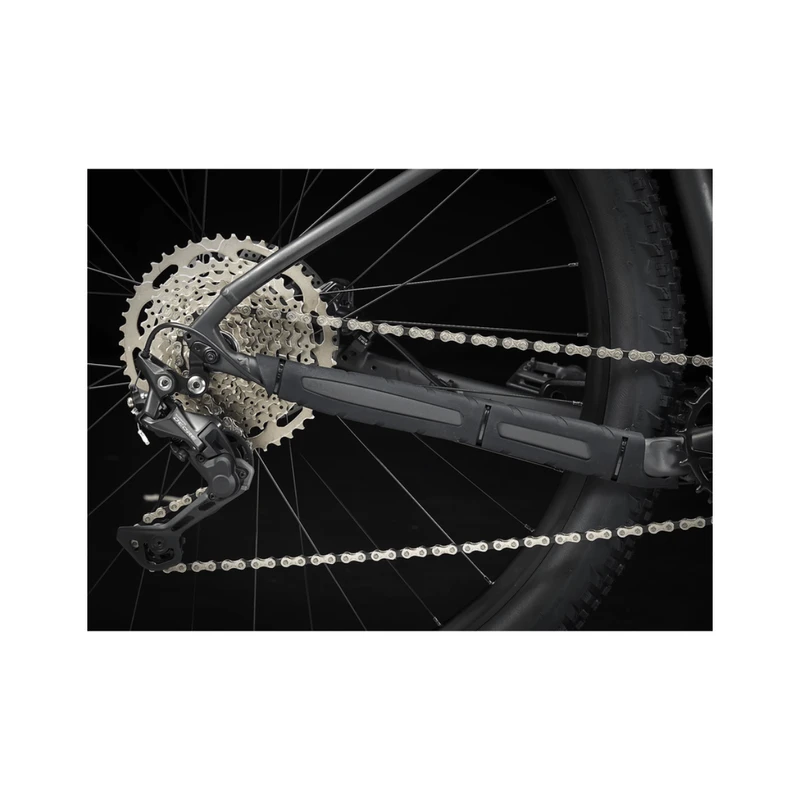

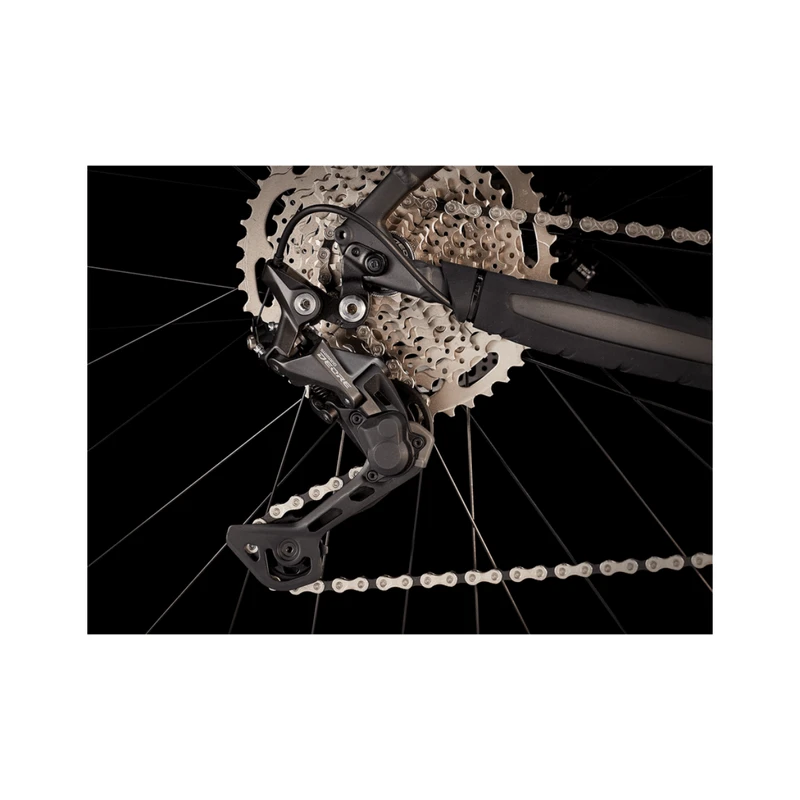

• Rear derailleur: Shimano Deore M5120, long cage
• Crank
• Size: XXS: Prowheel C10Y-NW, 30T steel narrow-wide ring, 160 mm length
• Size: XS , S , M , ML , L , XL , XXL: Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
• Bottom bracket: VP BC73, 73 mm, threaded cartridge
• Cassette: Shimano Deore M4100, 11-46, 10-speed
• Chain: KMC X10, 10-speed
• Pedal: VP-536 nylon platform

Components

• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost
• Size: XXS: Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
• Size: XS , S , M: Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
• Size: ML , L , XL , XXL: Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
• Handlebar
• Size: XXS , XS: Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
• Size: S: Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
• Size: M , ML , L , XL , XXL: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
• Grips: Bontrager XR Endurance Comp, lock-on
• Stem
• Size: XXS , XS , S: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
• Size: M , ML , L: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
• Size: XL: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
• Size: XXL: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
• Head set: Semi-integrated, 1-1/8″

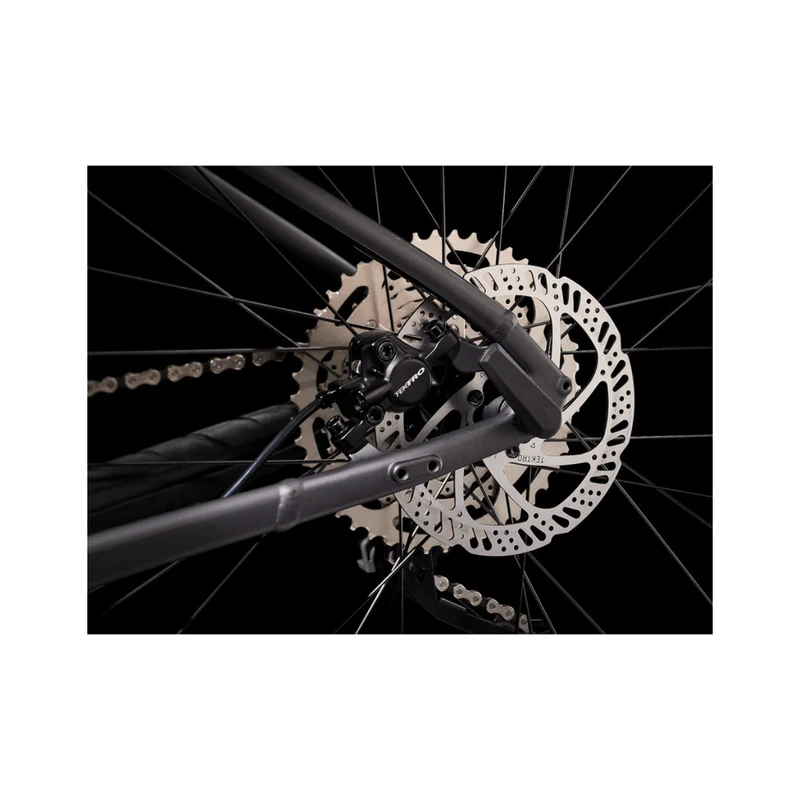

• Brake: Tektro HD-M275 hydraulic disc, 180 mm rotor
• Brake Set: Tektro HD-M275 hydraulic disc, 160 mm rotor

Weight

• Weight: M – 14.80 kg / 32.63 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs)
