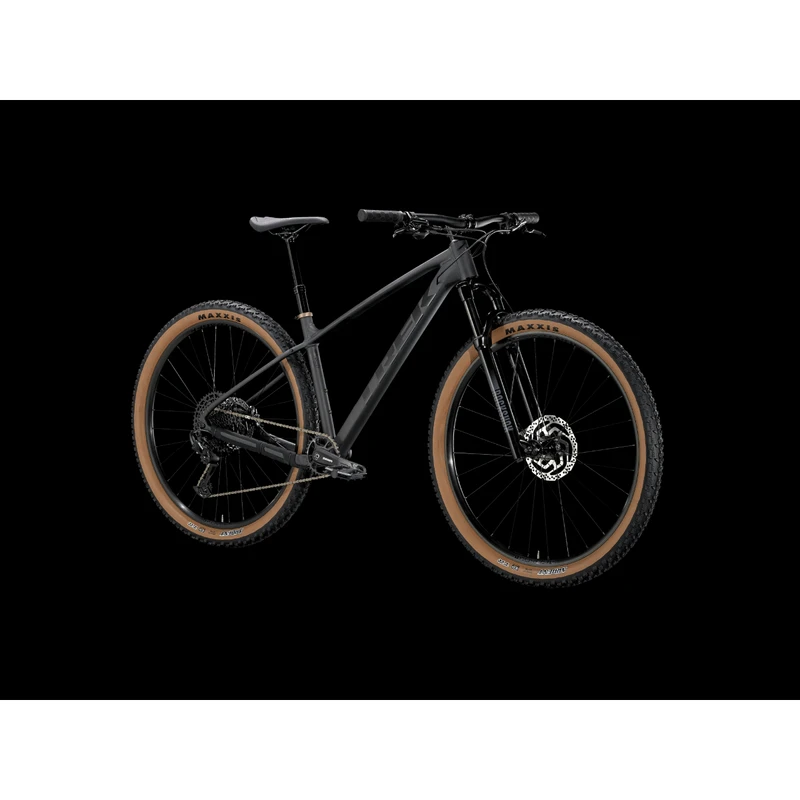

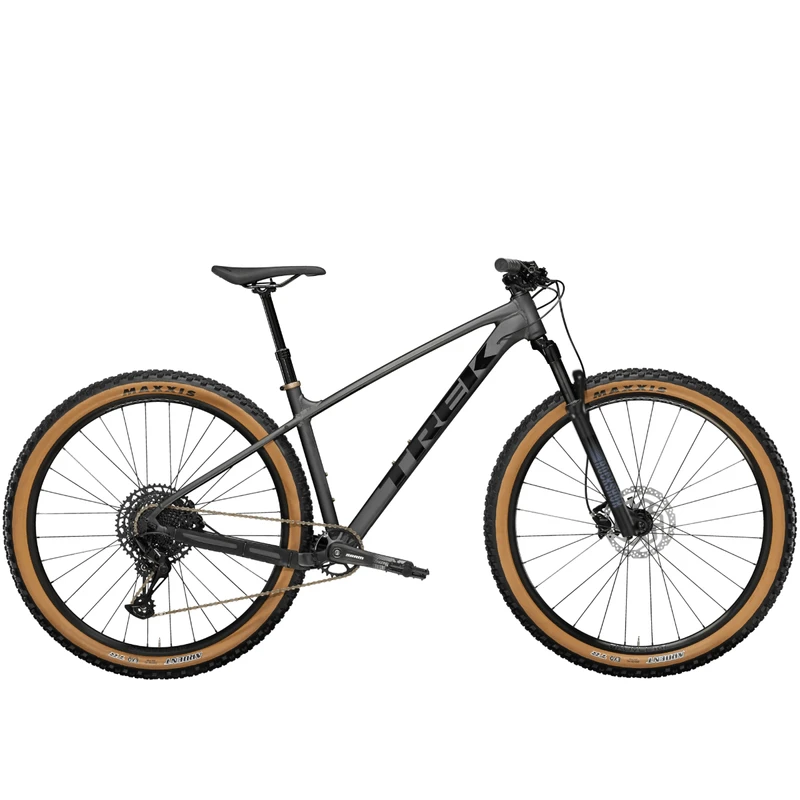

Trek Marlin 8 Gen 3 Bike

TREK MARLIN 8 GEN 3 BIKE

The Racebike of Trek was designed for use in on long tours. And that’s exactly where it shines. The geometry is moderate and makes for a balanced handling. Due to the interplay of a relatively long top tube and a low stack, the riding position is sporty. On the downhill, however, the Trek Marlin 8 is left in the dust by its competitors. Heavy riders over 85 kilos aren´t likely to encounter too many problems with the high weight of 14,29 kg. For lighter riders, this could be a disturbance.

FEATURES

• You get real-deal modern mountain bike geometry that keeps handling confident when you’re on singletrack, but is versatile enough for use on roads and bike trails too
• You get a premium RockShox fork with an air spring that’s lighter and more adjustable than a coil
• You get the simplicity and range of 1×12 drivetrain for putting down power on the trail
• The included dropper post lets you get your saddle out of the way when you roll into technical sections and steeper descents

TECH SPECS

Frame

• Size: XXS , XS , S , M , ML , L , XL , XXL

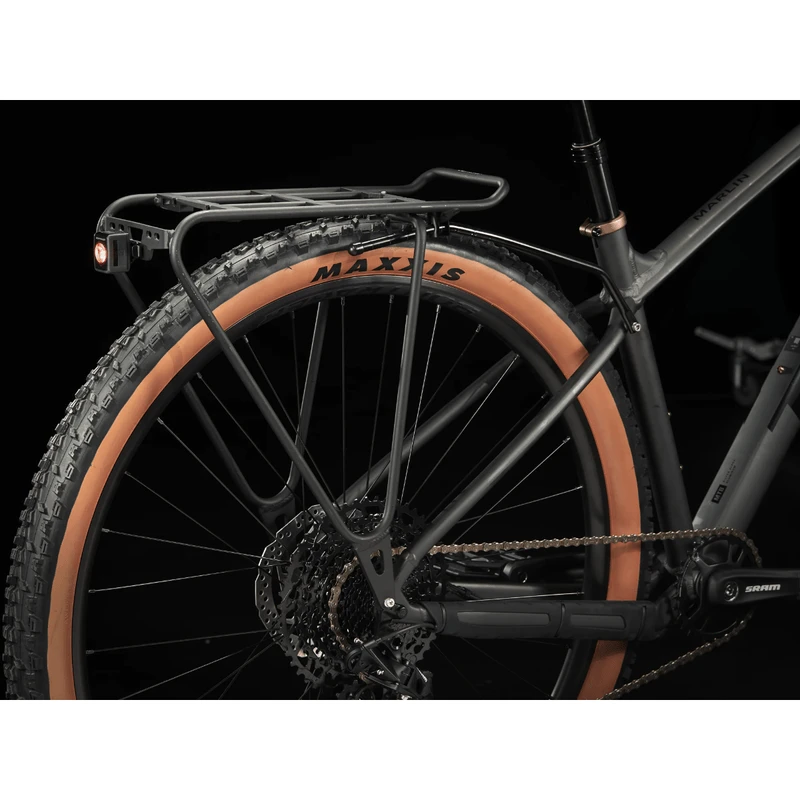

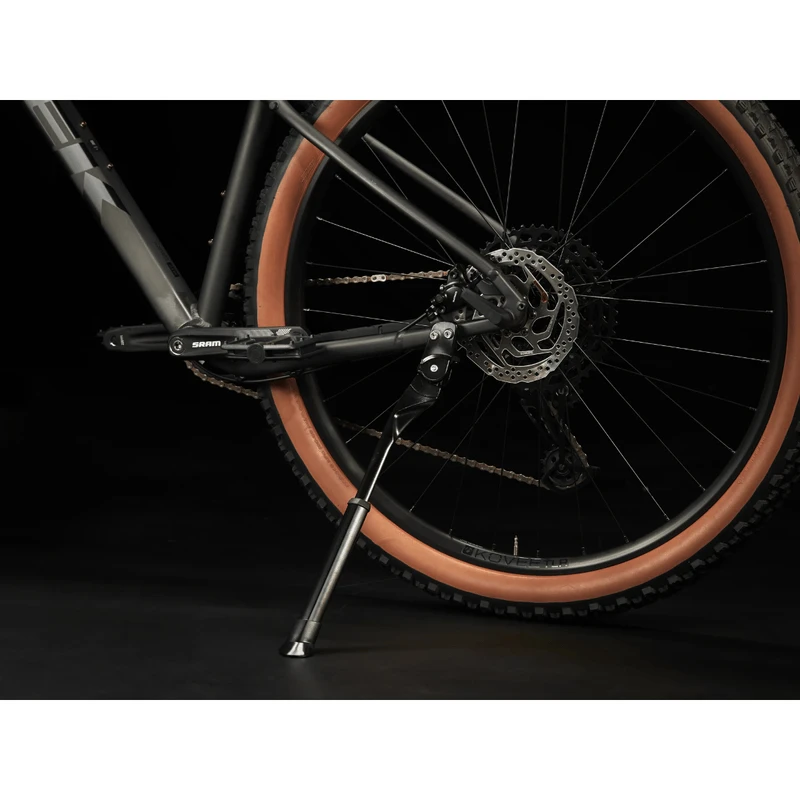

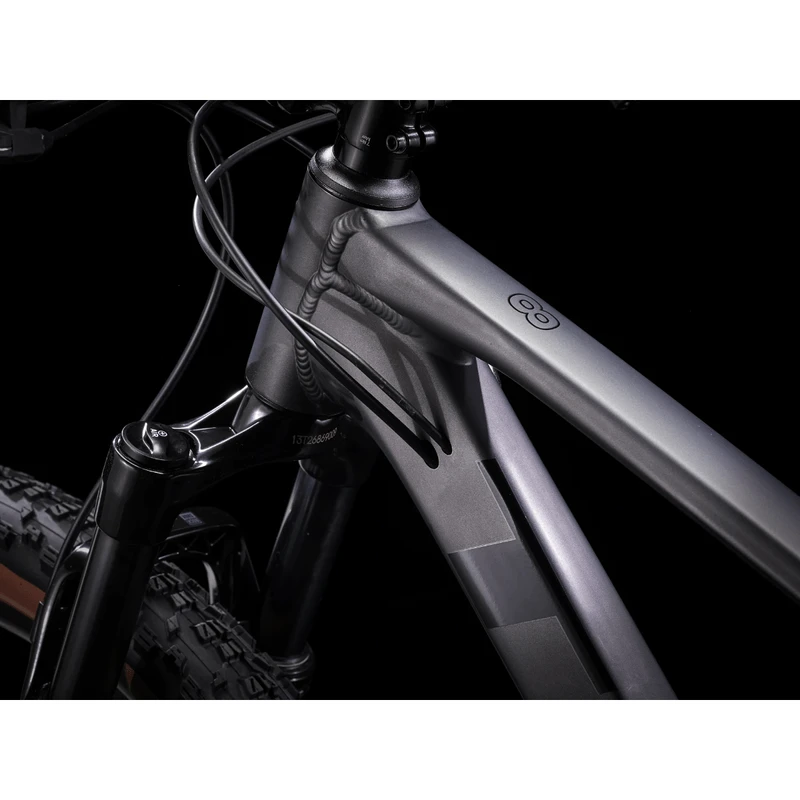

• Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew
• Size: XXS , XS
• Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew

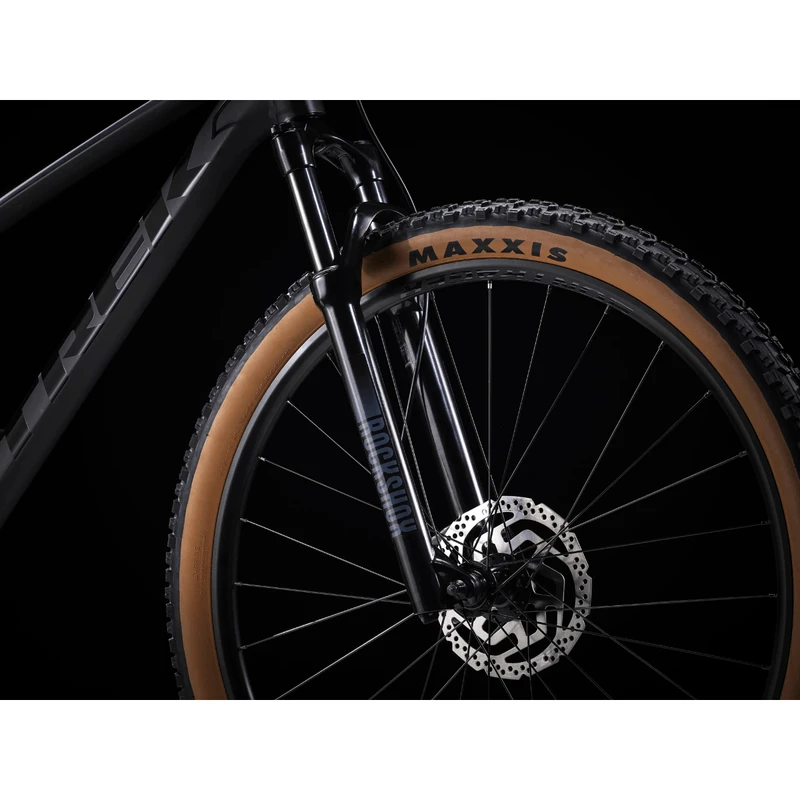

Fork

• Size: XXS
• RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 80 mm travel
• Size: XS , S
• RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel
• Size: M , ML , L , XL , XXL
• RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel

Hub Front

• Formula DC-20 LW, alloy, 6-bolt, 5×100 mm QR

Hub Rear

• Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR

Skewer Rear

• Bontrager Switch thru axle

Rim

• Size: XXS , XS , S
• Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
• Size: M , ML , L , XL , XXL
• Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve

Tyre

• Size: XXS
• Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 26×2.40″
• Size: XS , S
• Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 27.5×2.40″
• Size: M , ML , L , XL , XXL
• Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 29×2.40″

Shifter

• SRAM SX Eagle, 12-speed

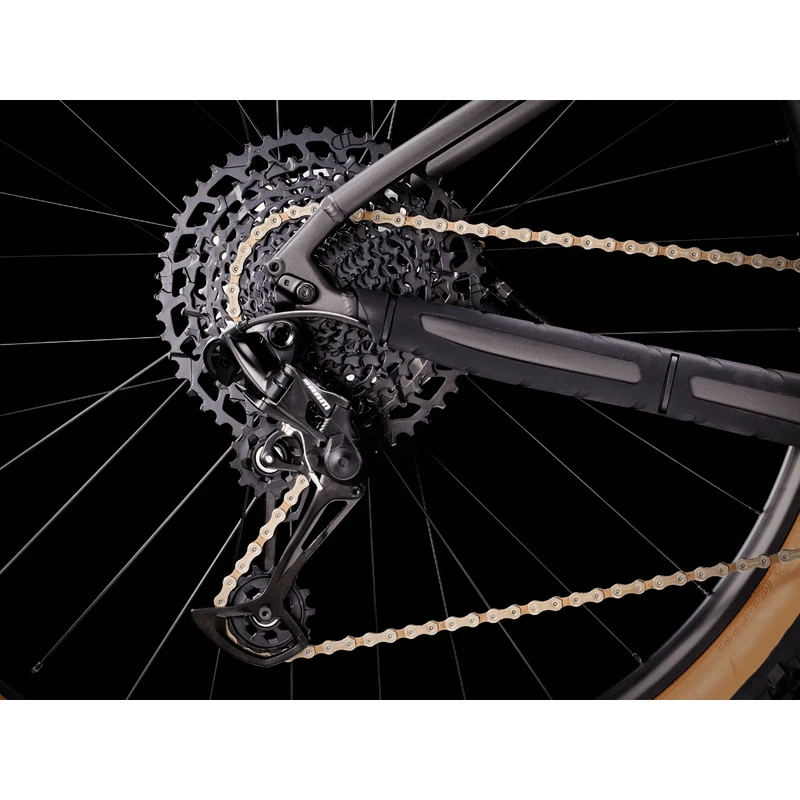

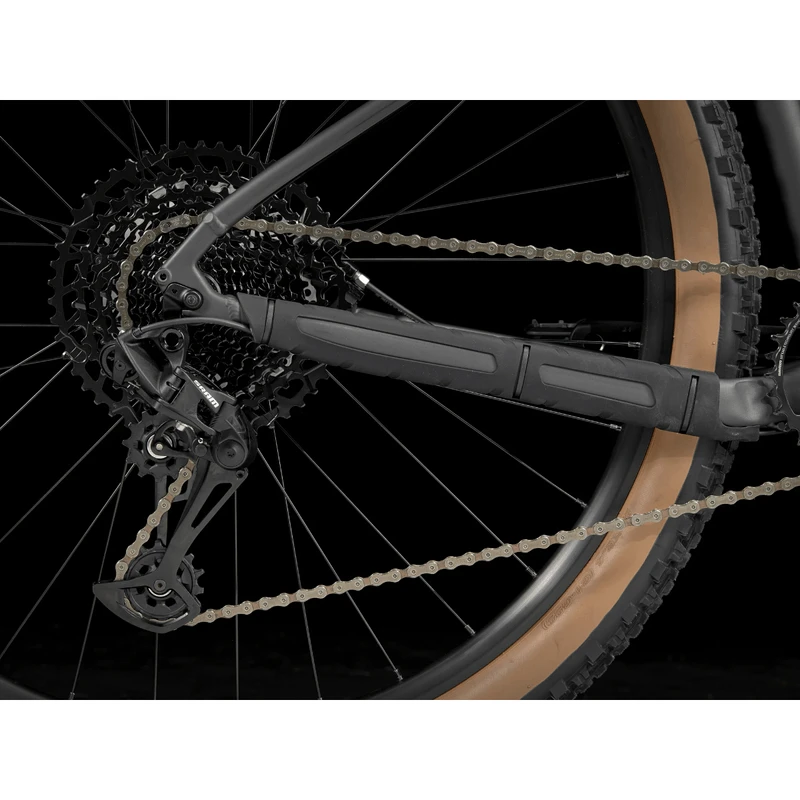

Rear Derailleur

• SRAM SX Eagle

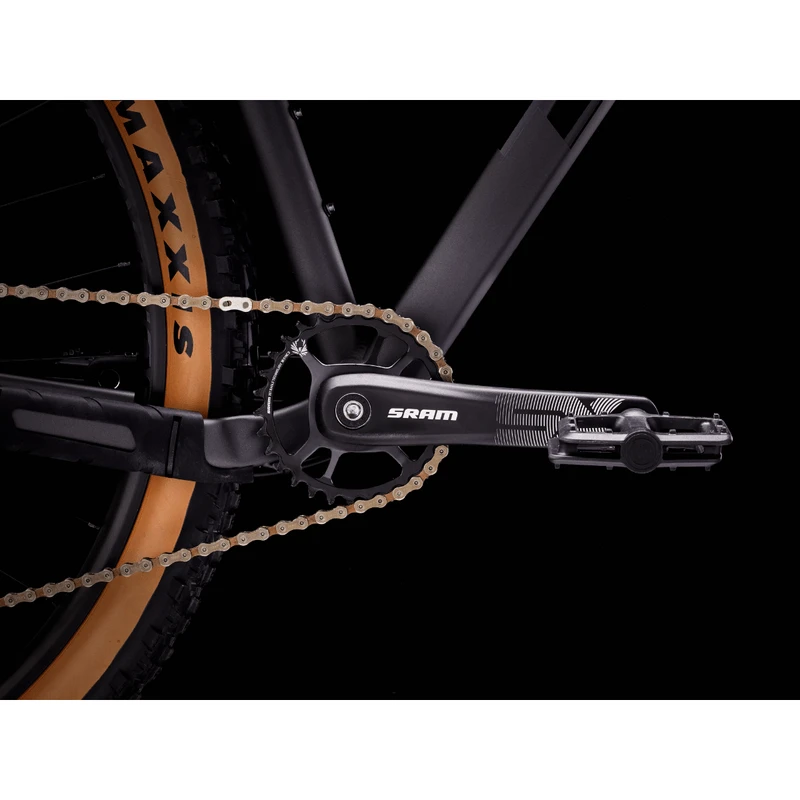

Crank

• Size: XXS
• SRAM SX Eagle, 30T steel ring, 49 mm chainline, 155 mm length
• Size: XS , S , M
• SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length
• Size: ML , L , XL , XXL
• SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length

Bottom Bracket

• Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle

Cassette

• SRAM PG-1210 Eagle, 11-50, 12-speed

Chain

• SRAM SX Eagle, 12-speed

Petal

• Wellgo VPE-536

Saddle

• Bontrager Arvada, steel rails, 138 mm width

Seatpost

• Size: XXS , XS , S
• TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
• Size: M
• TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
• Size: ML , L , XL , XXL
• TranzX JD-YSP18, 150mm travel, internal routing, 31.6 mm, 470mm length

Handlebar

• Size: XXS , XS
• Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
• Size: S
• Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
• Size: M , ML , L , XL , XXL
• Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Grips

• Bontrager XR Trail Comp, nylon lock-on

Stem

• Size: XXS , XS , S
• Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
• Size: M , ML , L
• Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
• Size: XL
• Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
• Size: XXL
• Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length

Head Set

• Semi-integrated, 1-1/8″

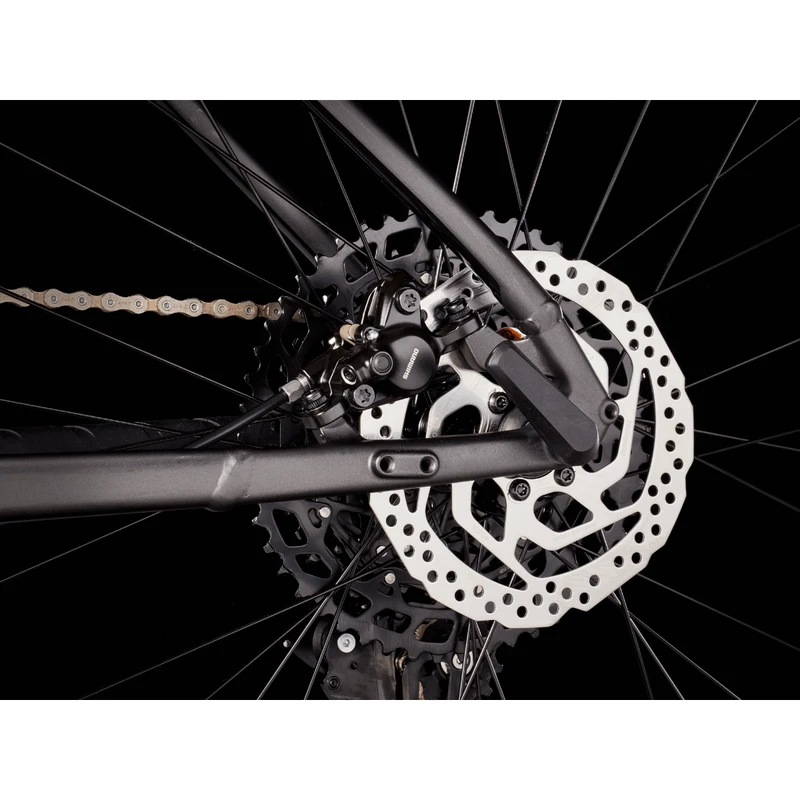

Brake

• Shimano MT200 hydraulic disc

Brake Rotor

• Size: XXS , XS , S , M , ML , L , XL , XXL
• Shimano RT26, 6-bolt,160 mm
• Size: M , ML , L , XL , XXL
• Shimano RT26, 6-bolt,180 mm

Brake Set

• Shimano MT200 hydraulic disc

Weight

• M – 14.29 kg/31.51 lbs

Weight Limit

• This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
