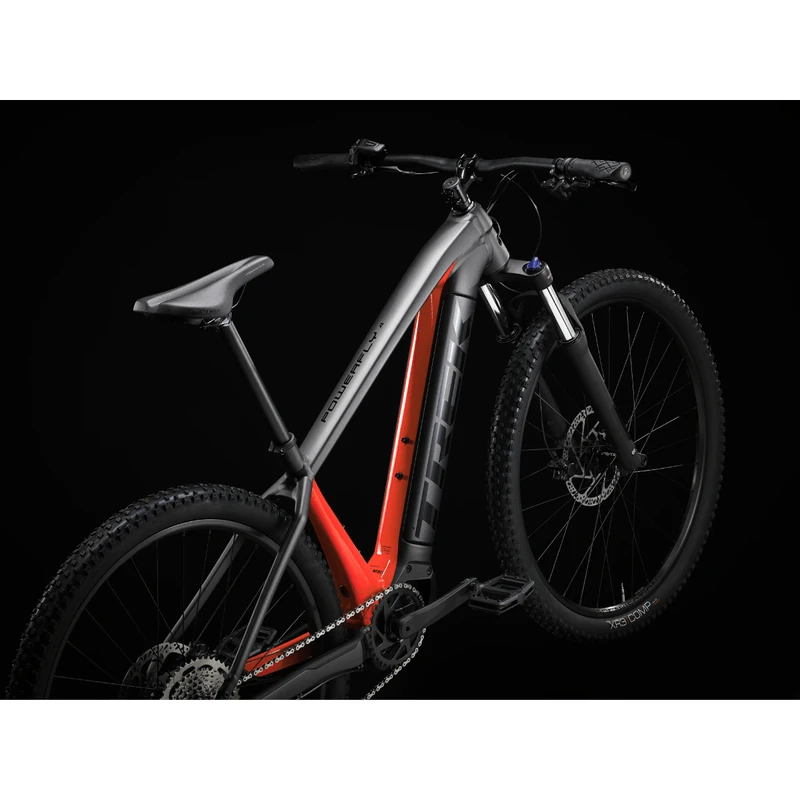

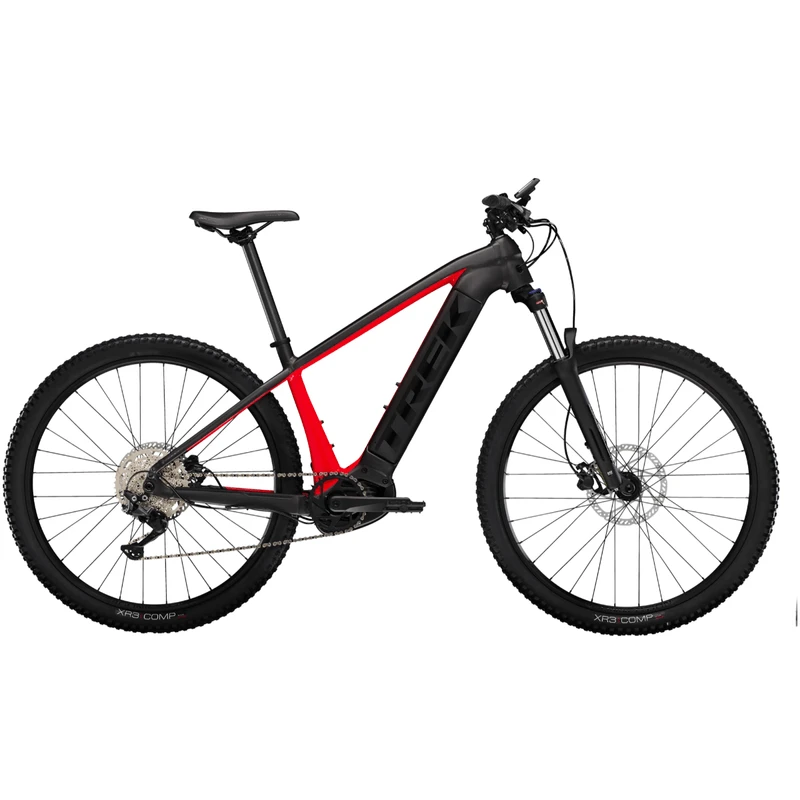

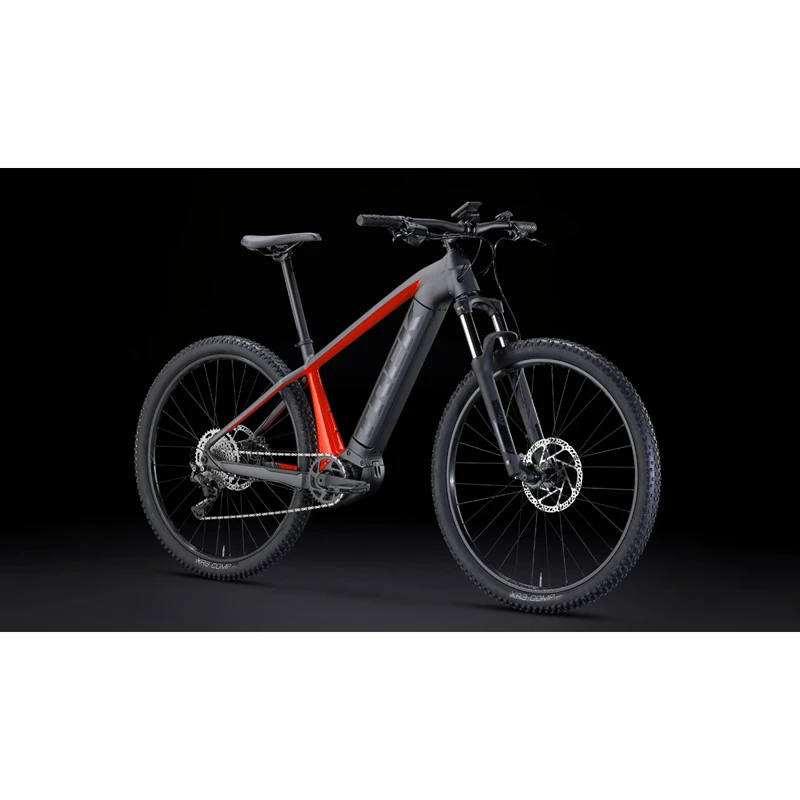

Trek Powerfly 4 Gen 4 Mountain E-Bike 23

TREK POWERFLY 4 GEN 4 BIKE 23

Powerfly 4 is Trek’s most affordable electric mountain bike. It’s built with parts that hold up, like a smooth-shifting Shimano drivetrain, and a powerful Bosch motor. Plus, it features Trek’s user-friendly Removable Integrated Battery (RIB) system that’s fully encased in the frame yet doesn’t require tools for removal. This bike expands your boundaries and lets you travel to destinations you never thought you’d reach on a mountain bike.

FEATURES

• Removable Integrated Battery
• Bosch Performance Line CX motor
• Bosch LED Remote
• Bosch eBike Flow app

TECH SPECS

Frameset

• *Frame
• Size: XS , S; Alpha Platinum Aluminum, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle
• Size: M , L , XL; Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle
• *Fork

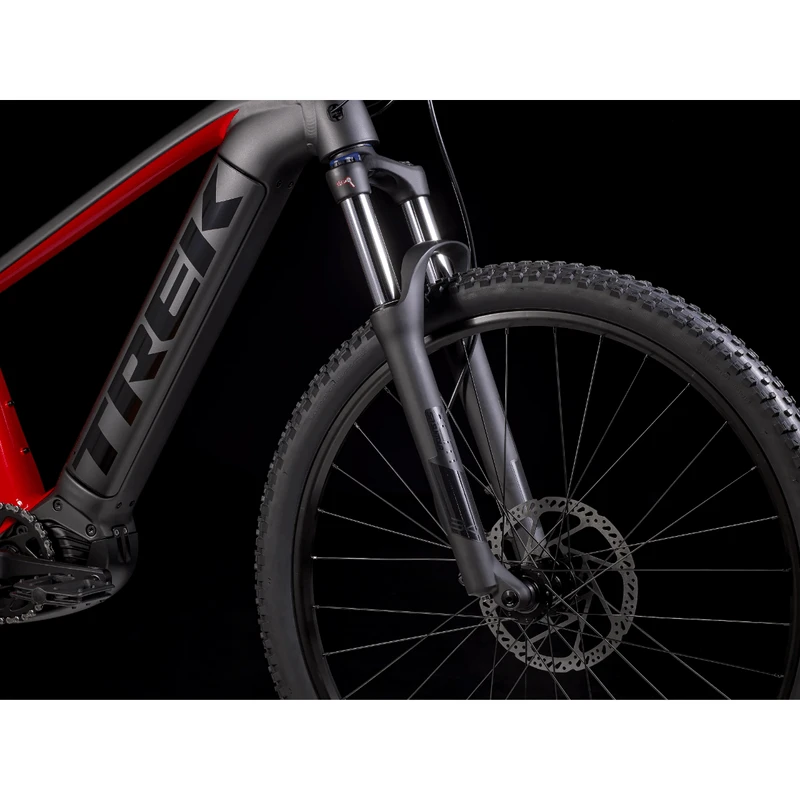

• Size: XS; SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 80mm travel
• Size: S , M , L , XL; SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel
• Max compatible fork travel 120mm (526mm axle-to-crown), XS & S: 100mm (492mm axle-to-crown)

Wheels

• Hub front: Formula DC-511, 6-bolt, Boost110, 15mm thru axle
• Hub rear: Bontrager Approved DC-3248, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve
• *Tire

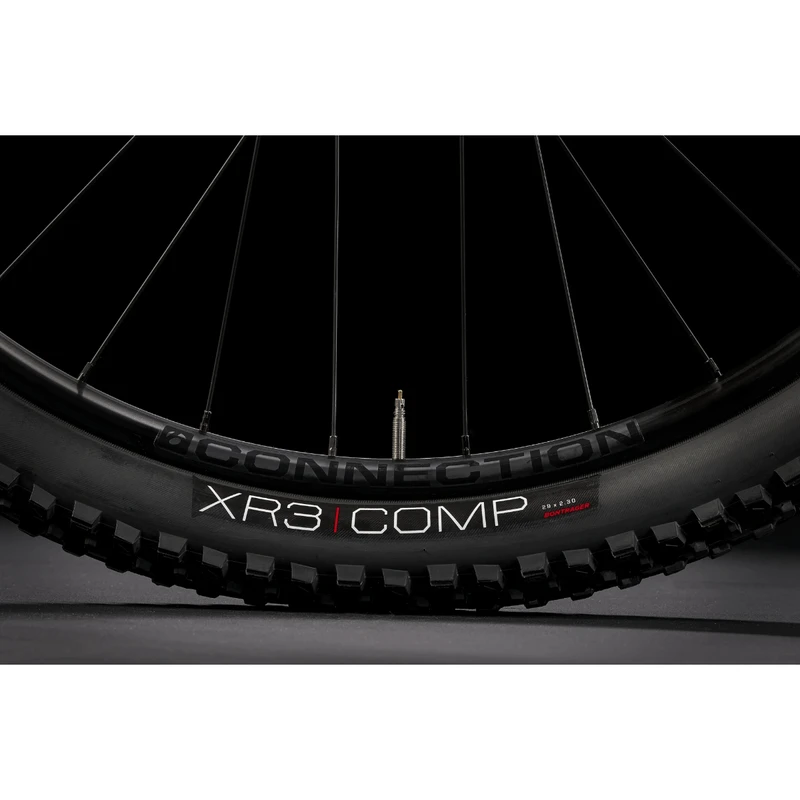

• Size: XS , S; Bontrager XR3 Comp, wire bead, 30tpi, 27.5×2.35”
• Size: M , L , XL; Bontrager XR3 Comp, wire bead, 30tpi, 29×2.30”
• Max tire size Frame: 29×2.60″ or 27.5×2.8″ (XS & S: 27.5×2.60″) Fork: See manufacturer

Drivetrain

• Shifter: Shimano Deore M4100, 10 speed

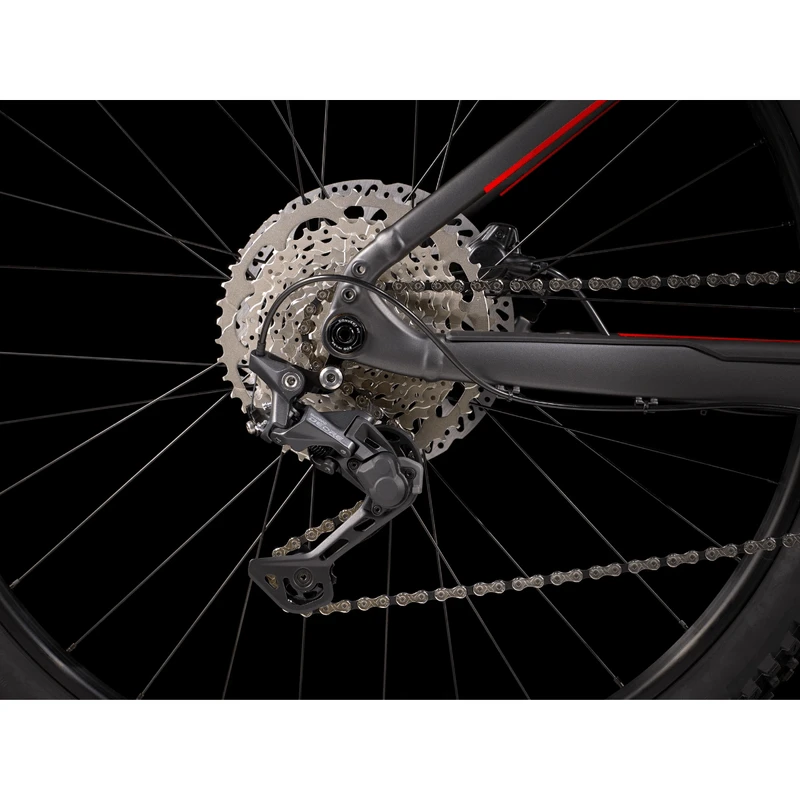

• Rear derailleur: Shimano Deore M5120, long cage
• Crank: FSA Bosch CK-220, 36T ring, 165mm length
• Chainring: FSA, 36T, steel
• Cassette: Shimano Deore M4100, 11-46, 10 speed
• Chain: KMC X10, 10 speed
• Pedal: VP-536 nylon platform
• Max chainring size: 38T

Components

• Saddle: Bontrager Commuter Comp
• *Seatpost
• Size: XS , S; Bontrager alloy, 31.6mm, 12mm offset, 330mm length
• Size: M; Bontrager alloy, 31.6mm, 12mm offset, 360mm length
• Size: L , XL; Bontrager alloy, 31.6mm, 12mm offset, 400mm length
• *Handlebar
• Size: XS , S; Bontrager alloy, 31.8mm, 15mm rise, 720mm width
• Size: M , L , XL; Bontrager alloy, 31.8mm, 15mm rise, 750mm width
• Grips: Bontrager XR Endurance Comp, lock-on
• *Stem
• Size: XS; Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
• Size: S , M; Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
• Size: L , XL; Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
• Headset: FSA IS-2, 1-1/8” top, 1.5” bottom
• Brake rotor: Tektro, 6-bolt, 203mm
• Brake Set: Tektro HD-M275 hydraulic disc
• Rotor size: Max brake rotor sizes: Front see fork manufacturer, rear 203mm

Accessories

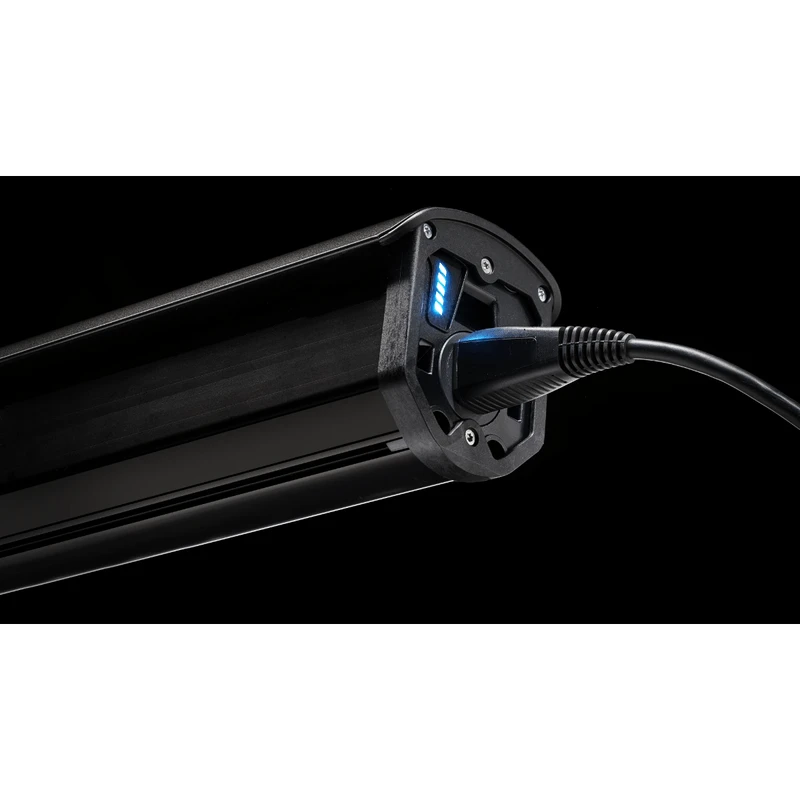

• Battery: Bosch PowerTube 500Wh, smart system
• Charger: Bosch standard 4A, 110V, smart system
• Controller: Bosch Intuvia 100, smart system

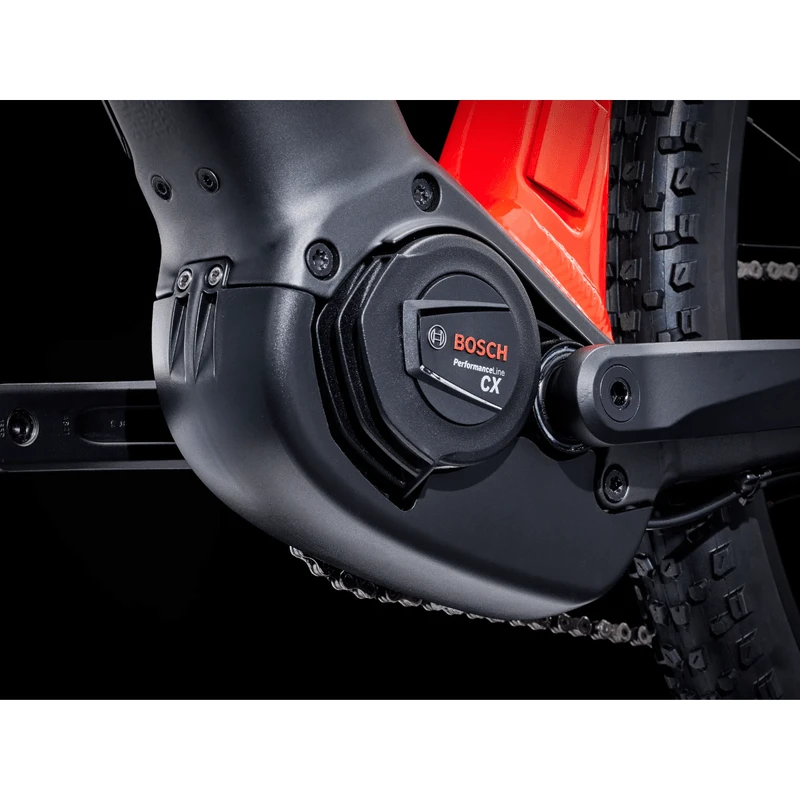

• Motor: Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

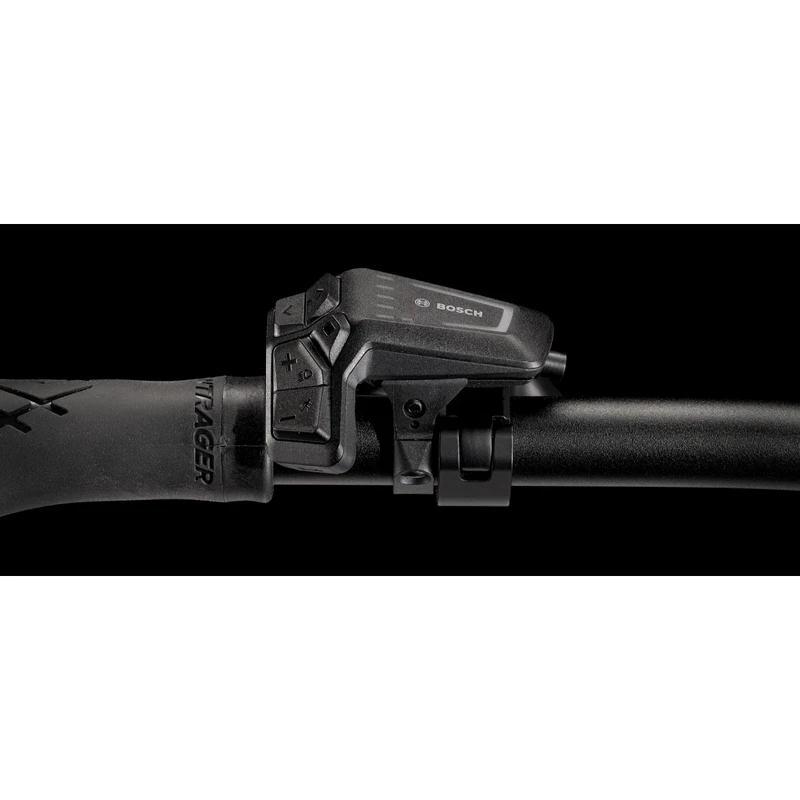

• Computer: Bosch LED remote, smart system

Weight

• Weight: M – 23.94 kg / 52.78 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
