Trek Top Fuel 7 Deore/XT Bike – 2023

TREK TOP FUEL 7 DEORE/XT BIKE – 2023

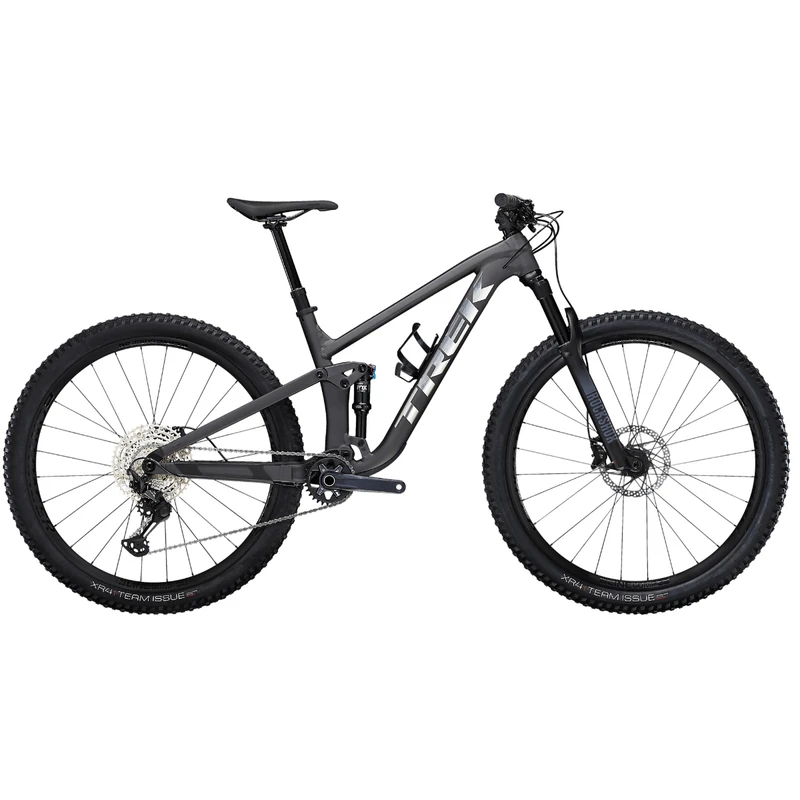

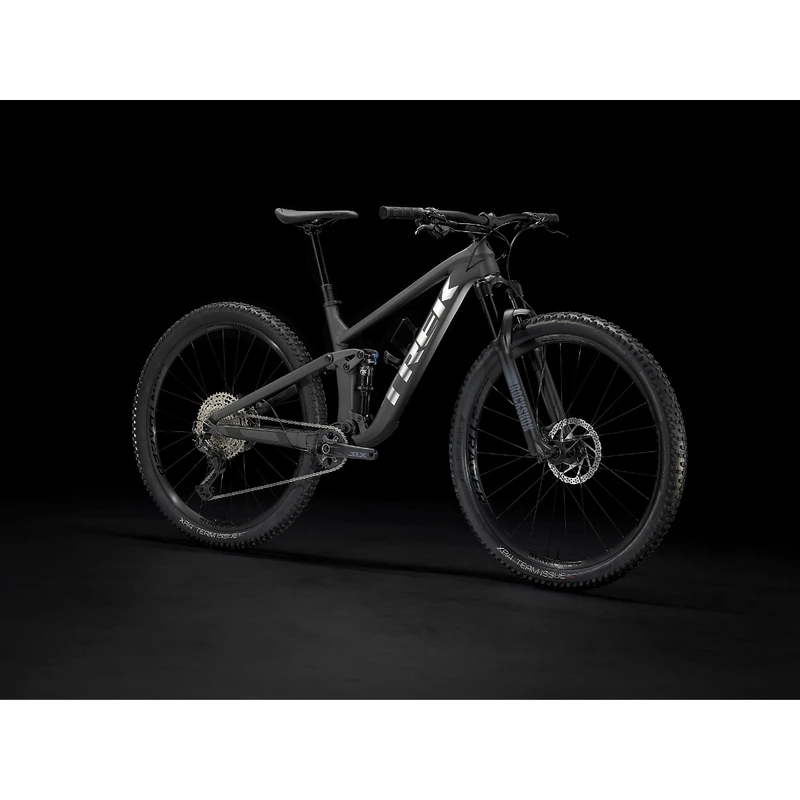

Top Fuel 7 is a full suspension mountain bike that combines the speed of a cross country bike with the go-for-it gusto of a trail bike. It’s efficient up climbs and fast on sprints, but it’s not afraid of letting loose when you want to get rowdy.

FEATURES

• Active Braking Pivot: Active Braking Pivot allows Trek’s engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
• Quick and in control: 120mm of rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

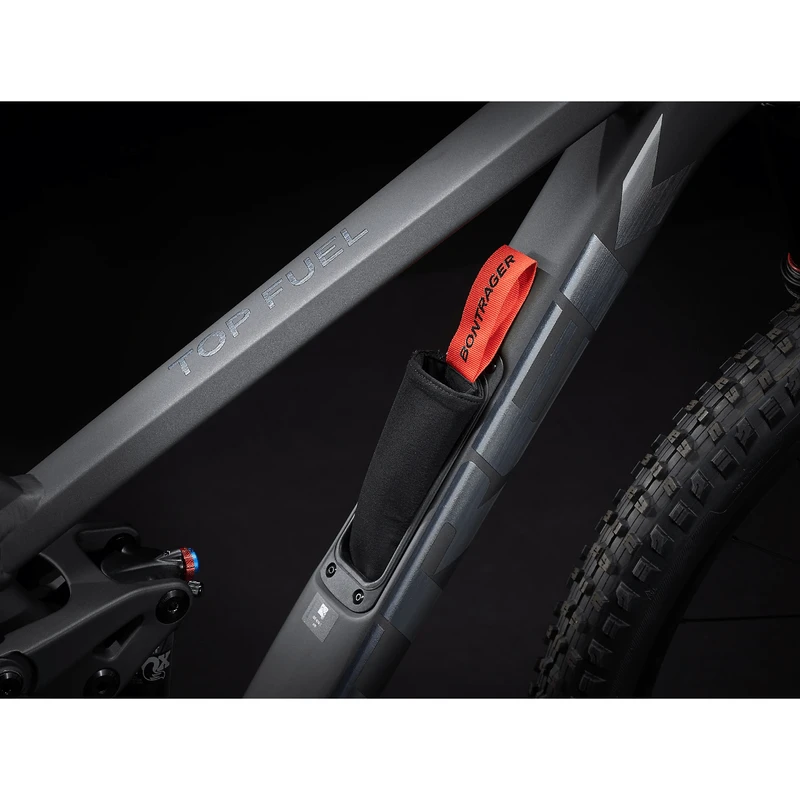

• Internal Storage: Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.
• Hassle-free routing: Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.
• Complete Tubeless System: Tubeless Ready rims and tires make it easy to ditch the tubes so you get better traction, fewer flats, and less weight. You’re ready to roll right out of the box with the included TLR rim strips, valves, and sealant.
• Oversized 34.9mm Dropper Post: Bigger is better. The oversized seat tube diameter gives more support and strength for longer travel droppers, and allows for more robust, durable internals that work faster.
• Threaded Bottom Bracket: More robust than pressfit, threaded BBs hold up in nasty conditions and make servicing easier.
• ISCG Mounts: International Standard Chain Guide mounts offer easy chain guide installation and adjustment.

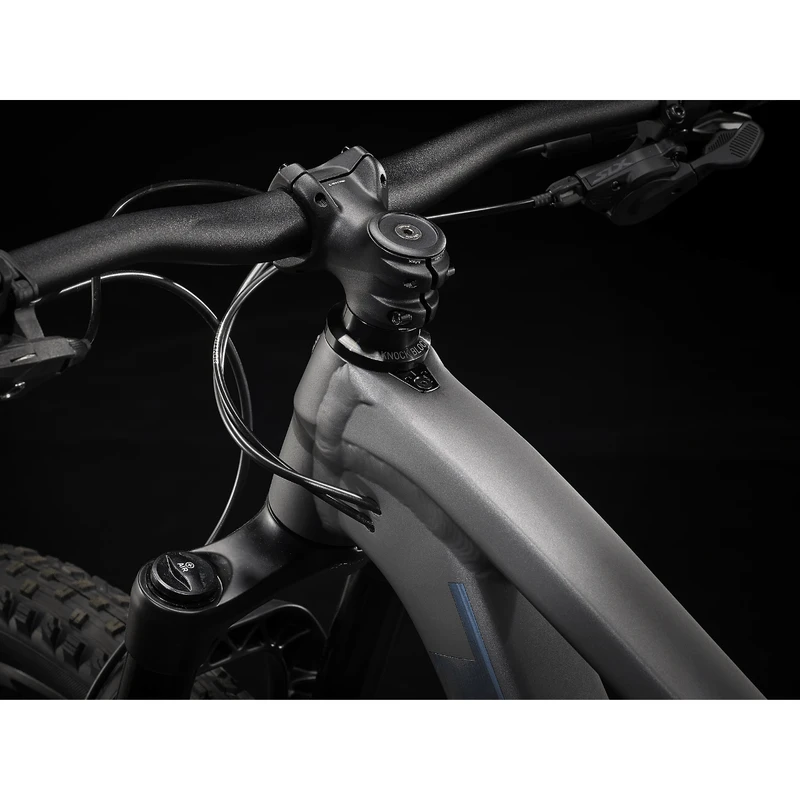

• Knock Block: Knock Block has your frame’s back when things go wrong. It prevents your handlebars from spinning all the way around in a crash, so your hoses won’t get yanked, and your controls won’t hit the top tube.

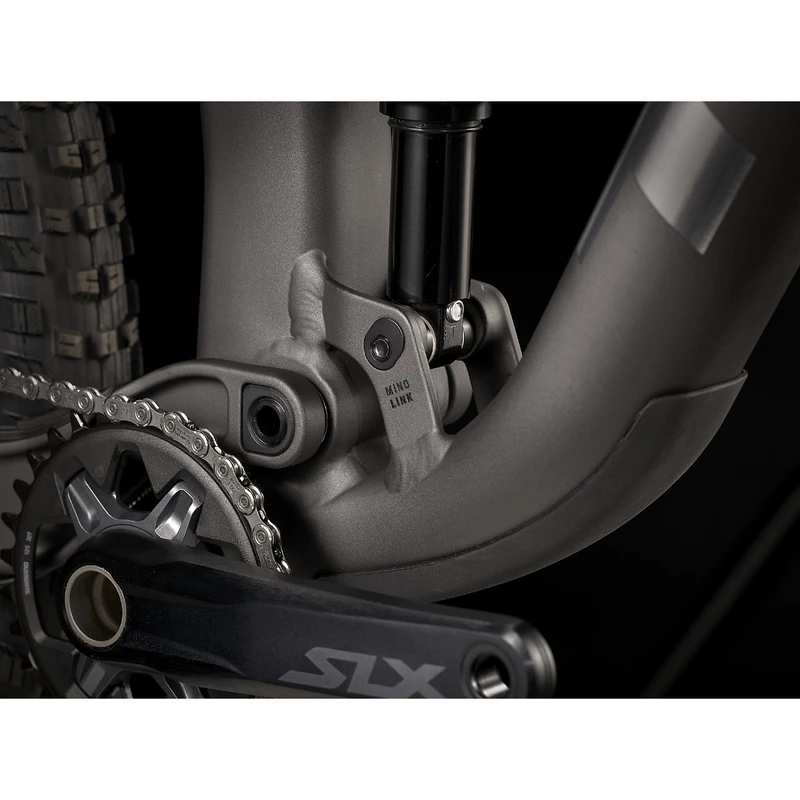

• Mono Link Adjustable Geometry: Fine tune head tube angle by 1/2″ and BB height by up to 10mm with the simple turn of a nut. Just flip the link to choose between slack or slacker geometry, without negatively affecting suspension performance. A Trek exclusive.

TECH SPECS

Frameset

• Frame: Alpha Platinum Aluminum, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
• Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel

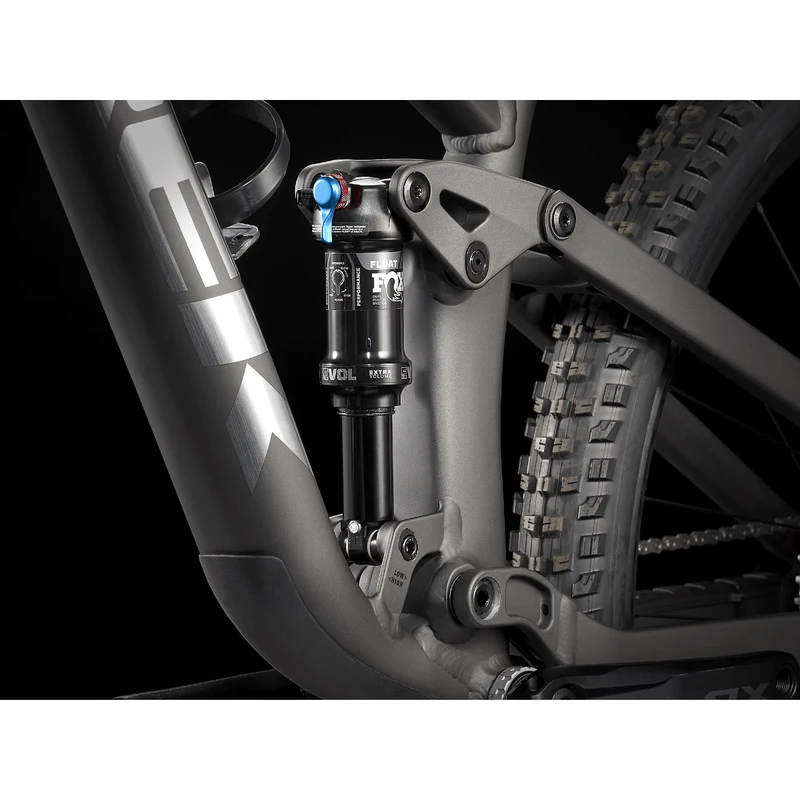

• Shock: Fox Performance Float DPS, 3-position damper, 185mm x 50mm
• Max compatible fork travel: 130mm (541mm axle-to-crown)

Wheels

• Wheel front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
• Wheel rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

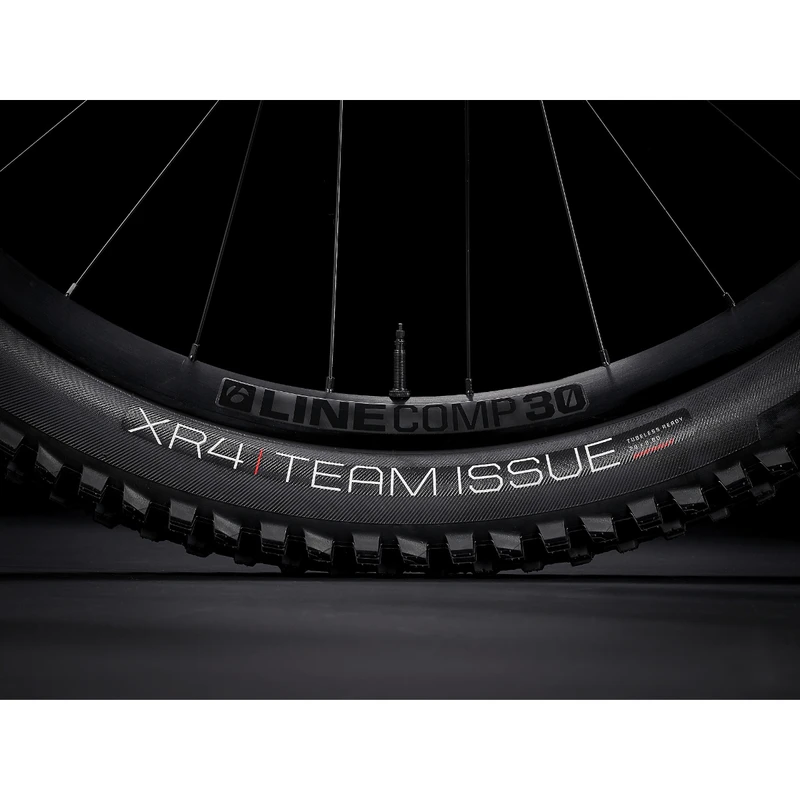

• Tire: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40”
• Tire part: Bontrager TLR sealant, 6oz
• Rim strip: Bontrager TLR
• Max tire size: Frame: 29×2.5″ Fork: see manufacturer

Drivetrain

• Shifter: Shimano SLX M7100, 12 speed

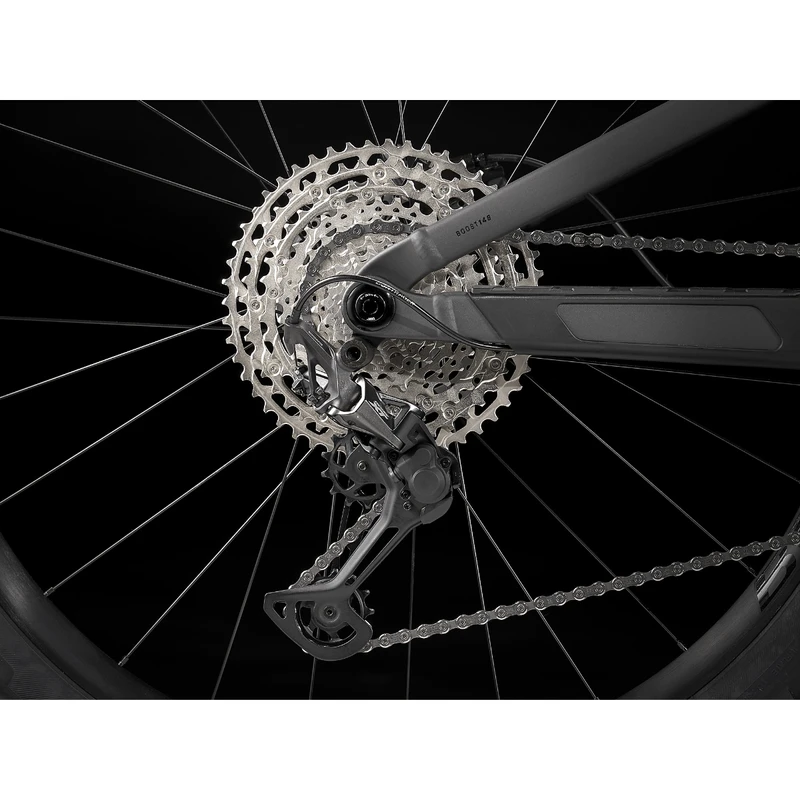

• Rear derailleur: Shimano XT M8100, long cage

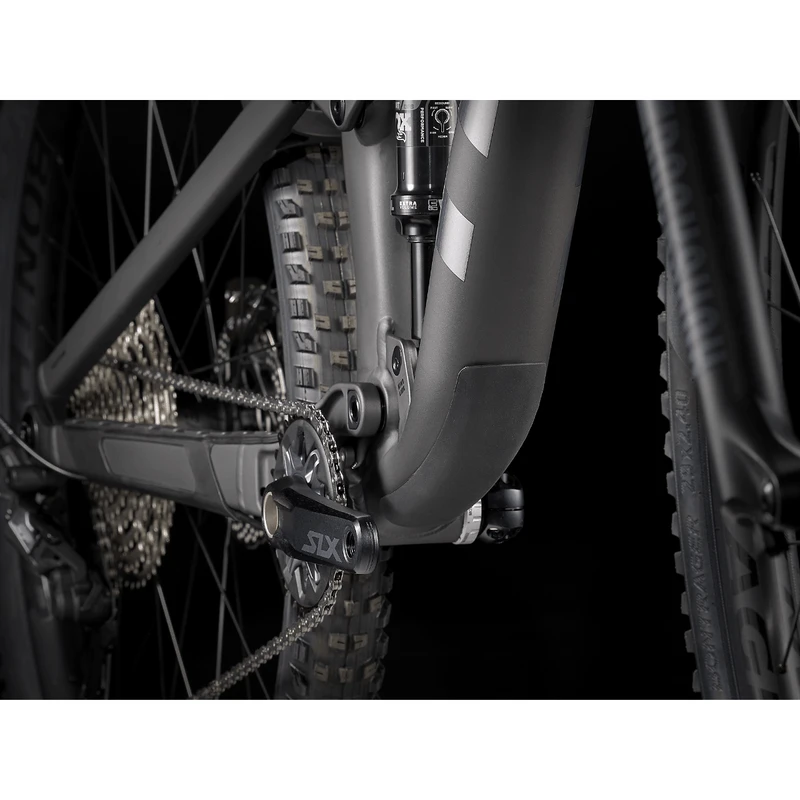

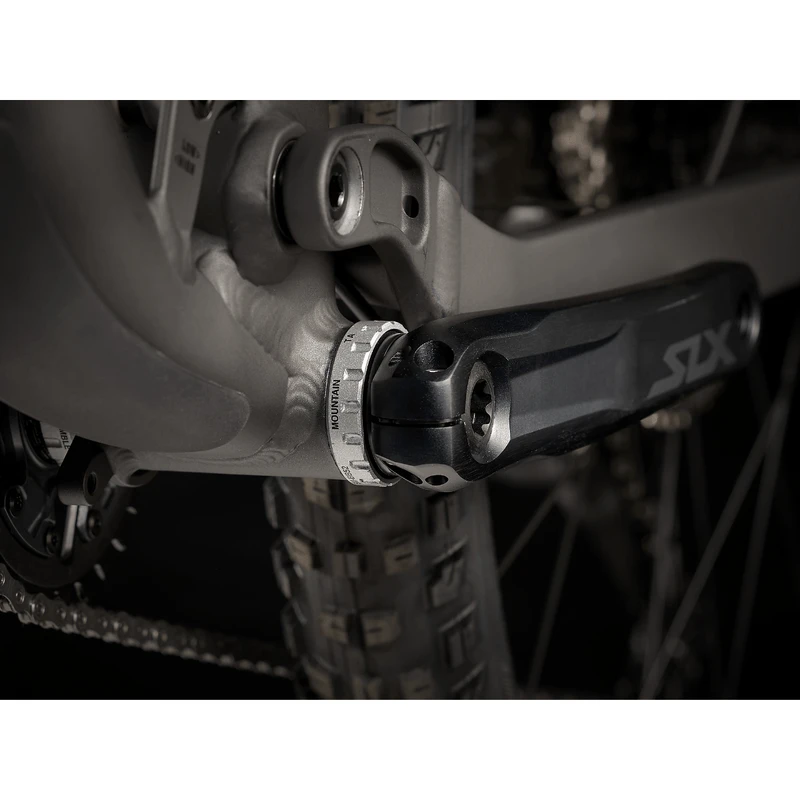

• Crank: Size: S, M, M/L, L – Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length. Size: XL – Shimano Deore M6120, 30T ring, 55mm chainline, 175mm length
• Bottom bracket: Shimano SM-BB52, 73mm, threaded external bearing
• Cassette: Shimano Deore M6100, 10-51, 12 speed
• Chain: Shimano Deore M6100, 12 speed
• Max chainring size: Max: 36T (oval – 34T) Min: 28T

Component

• Saddle: Bontrager Arvada, steel rails, 138mm width
• Seatpost: Size: S – TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length. Size: M, M/L – TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length. Size: L, XL – TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
• Handlebar: Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem: Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
• Headset: Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8” top, 1.5” bottom

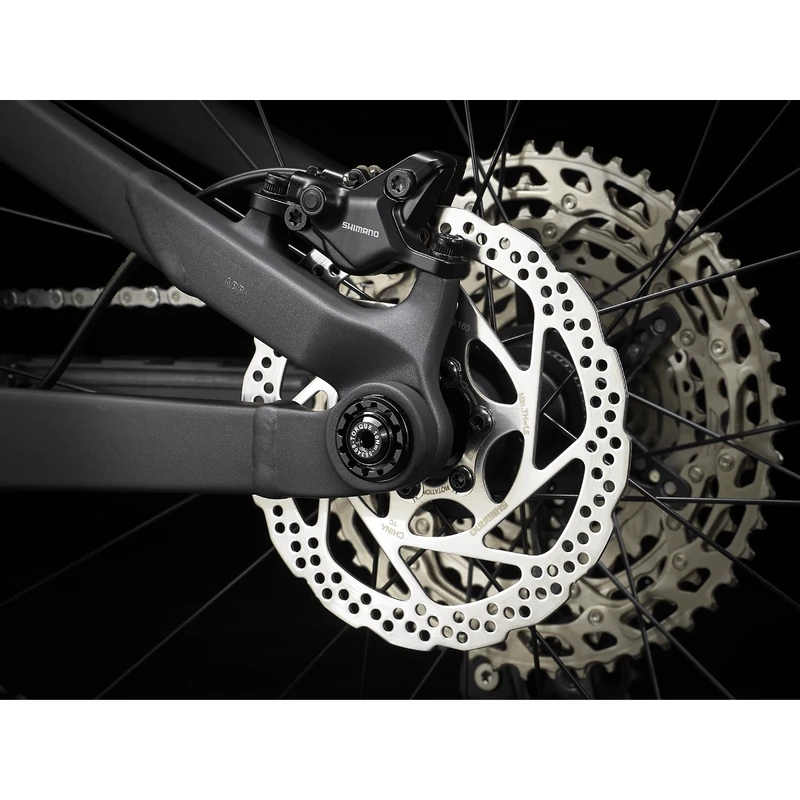

• Brake: Shimano hydraulic disc, MT4100 lever, MT410 caliper
• Brake rotor: Size: S, M, M/L, L, XL – Shimano RT56, 6-bolt, 180mm. Size: S, M, M/L, L, XL – Shimano RT56, 6-bolt, 160mm.

Weight

• Weight: M – 31.75 lbs / 14.4 kg (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
